Immergas AUDAX TOP 6 ErP Instruction And Recommendation Booklet

3-3
L N
Y/G
Y/G
A
A
B
B
C B A
26
INSTALLERUSER
MAINTENANCE TECHNICIAN

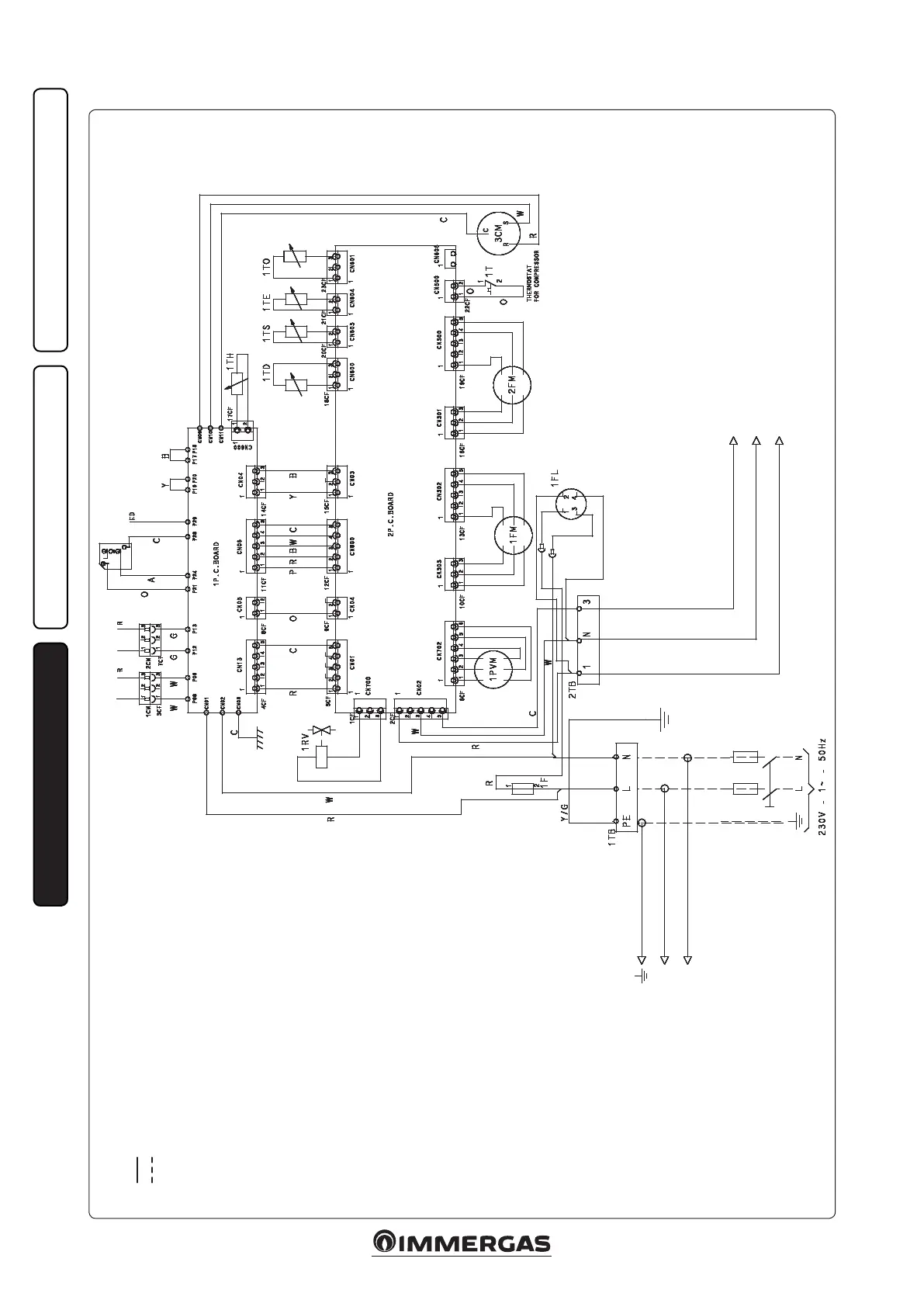

Key: = Manufacturer's wiring = Installer's wiring CM = Compressor motor FM = Fan motor RV = Reversing valve (4-way) TS = Low-pressure pipe temperature
probe
TO = Outdoor unit temperature probe TD = High-pressure pipe temperature
probe
TE = Condenser pipe temperature probe PMV = Modulating valve motor R = Inductance F = Fuse Cable colour: R = Red Y = Yellow O = Orange A = Brown C = Black V = Purple B = Blue W = White P = Pink G = Grey Y/G = Yellow/Green
3.3 AUDAX TOP 12 ErP WIRING DIAGRAM.

Immergas AUDAX TOP 6 ErP Specifications

General

Brand	Immergas
Model	AUDAX TOP 6 ErP
Category	Heat Pump
Language	English
