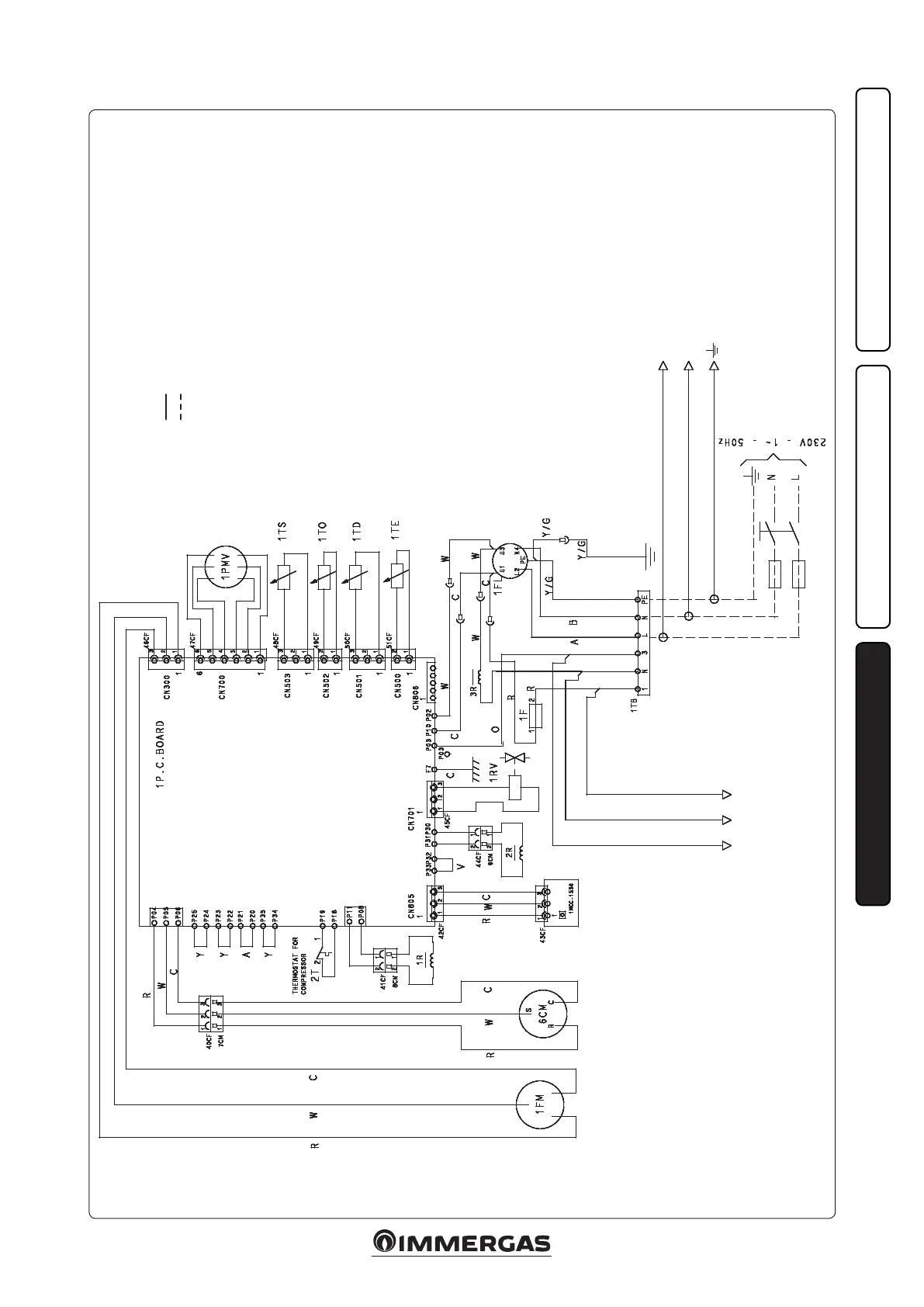

3.2 AUDAX TOP 8 ErP WIRING DIAGRAM.
Key: = Manufacturer's wiring = Installer's wiring CM = Compressor motor FM = Fan motor RV = Reversing valve (4-way) TS = Low-pressure pipe temperature
probe
TO = Outdoor unit temperature probe TD = High-pressure pipe temperature
probe
TE = Condenser pipe temperature probe PMV = Modulating valve motor R = Inductance F = Fuse FL = Filter Cable colour: R = Red Y = Yellow O = Orange A = Brown C = Black V = Purple B = Blue W = White Y/G = Yellow/Green
