Immergas AUDAX TOP 6 ErP Instruction And Recommendation Booklet

1-1
1-2
1-3
150150
300300
300
200
1000
300
200
300
1000
000200510001
200
300
1000
1000
200
003051
500
1000
150
150
150
500
6
INSTALLERUSER
MAINTENANCE TECHNICIAN

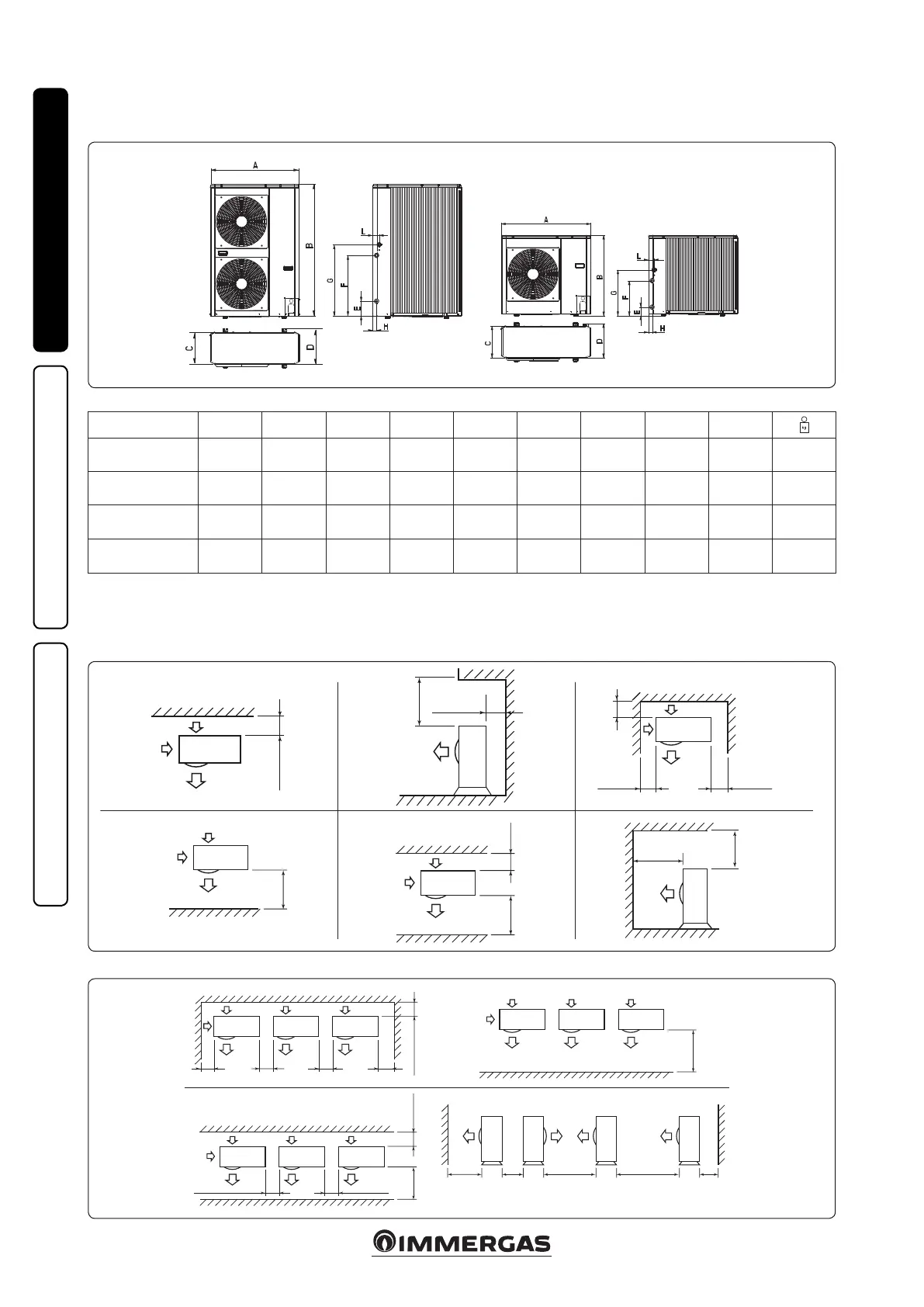

1.3 DIMENSIONS AND MINIMUM
SPACES.
For dimensions, refer to Fig. 1-1 and the tables
shown below.
the minimum installation spaces expressed in
mm are indicated in Fig. 1-2 (installation of 1
unit) and in Fig. 1-3 (installation of several units).
N.B.: the height of the obstacle on the front and
rear must be below the external height of the unit.
Audax TOP ErP A B C D E F G H L
6 kW
single phase
908 821 326 350 87 356 466 40 60 61
8 kW
single phase
908 821 326 350 87 356 466 40 60 69
12 kW
single phase
908 1363 326 350 174 640 750 44 69 104
16 kW
three phase
908 1363
326
350 174
640 750
44
69 116
