AUDAX TOP ErP

5 HEAT ADJUSTMENT WITH AUDAX TOP ErP CONTROL PANEL IN

STANDALONE APPLICATIONS (SETTING AND LOGIC OPERATION)

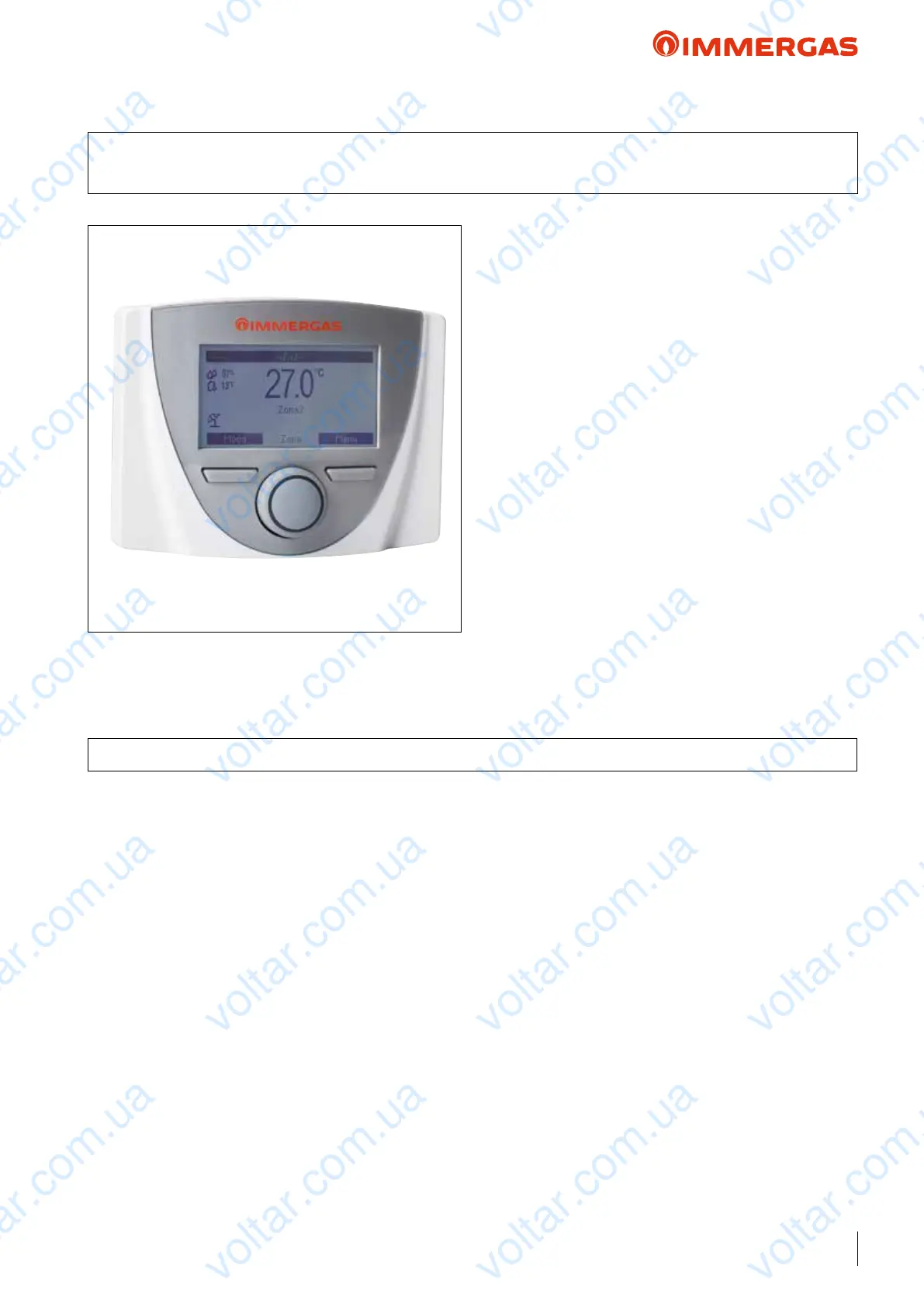

e Control Panel (standard supply with AUDAX TOP ErP)

enables programming of several operating options and relative

temperature/humidity control of the system.

For example, the Control Panel acquires data regarding outdoor

temperature (from the external probe), system ow temperature

(regarding the pre-set climatic curve), and also the room's hu-

midity percentage.

e standard Control Panel supplied is connected to a specic

terminal block on AUDAX TOP ErP, which enables you to

program the machine and also functions as a room temperature/

humidity sensor. It also displays the error codes in the event of

malfunctions.

e room sensor function can be disabled in order to use it only

to display the heat pump statuses and leave AUDAX TOP ErP

external control management on/o.

e user interface is composed of an LCD display, keys and an

encoder central knob.

N.B.: With system Manager applications, the Control Panel

(standard) can also function as a room temperature/humidity

probe of a system's zone.

Factory set device class: "VI"

Ref. European Commission Notice 2014/C 207/02

5.1 TECHNICAL FEATURES

e Control Panel (standard) with Standalone conguration,

enables:

• Operation with variable ow temperature according to outdoor

temperature (through the standard AUDAX TOP ErP external

probe supplied);

• Machine time band operation (C.H and cooling) in Comfort

or Economy mode;

• Any operation anomalies with error codes via system self-di-

agnosis displayed on the screen.

e Control Panel also manages the following data:

• External temperature (via external probe as per standard with

AUDAX TOP ErP);

• System ow temperature settings (C.H and cooling);

• Instant outlet temperature from the machine;

• Dew temperature;

• No. of machine operating hours.

Please note that AUDAX TOP ErP can:

• Directly pilot one/two 3-way diverter valves for D.H.W.

production, and can manage activation of an external booster

pump on the system;

• Manage activation of an auxiliary heat source (e.g. electrical

resistance);

• Manage and an external alarm that forces machine shutdown;

• Limit the machine's frequency (to reduce noise).

NOTE: With Standalone applications to manage any dehu-

midiers, you can opt for On/O room thermostats + On/

O humidistats (connected parallel with AUDAX TOP ErP),

with a relay to split the humidistat request and also take it to

the dehumidiers.

TECHNICAL DATA

• Dimensions: 100 x 129 x 37 mm (H x L x D);

• Supply voltage: 15 Vdc (directly from the Heat Pump terminal

block);

• Maximum input: 2 VA;

• 4-pole cable connection (type H03VV-F 5 x 0.75 mm

), max

length 50 m. Use wires having minimum sections of 0.5 mm

and maximum 1.5 mm

;

• Casing protection rating: IP20.
