Immergas EOLO Extra 24 kW - Page 10

8
STEEkW ed 01/06 EOLO Extra kW
Technical DocumentationTechnical Documentation

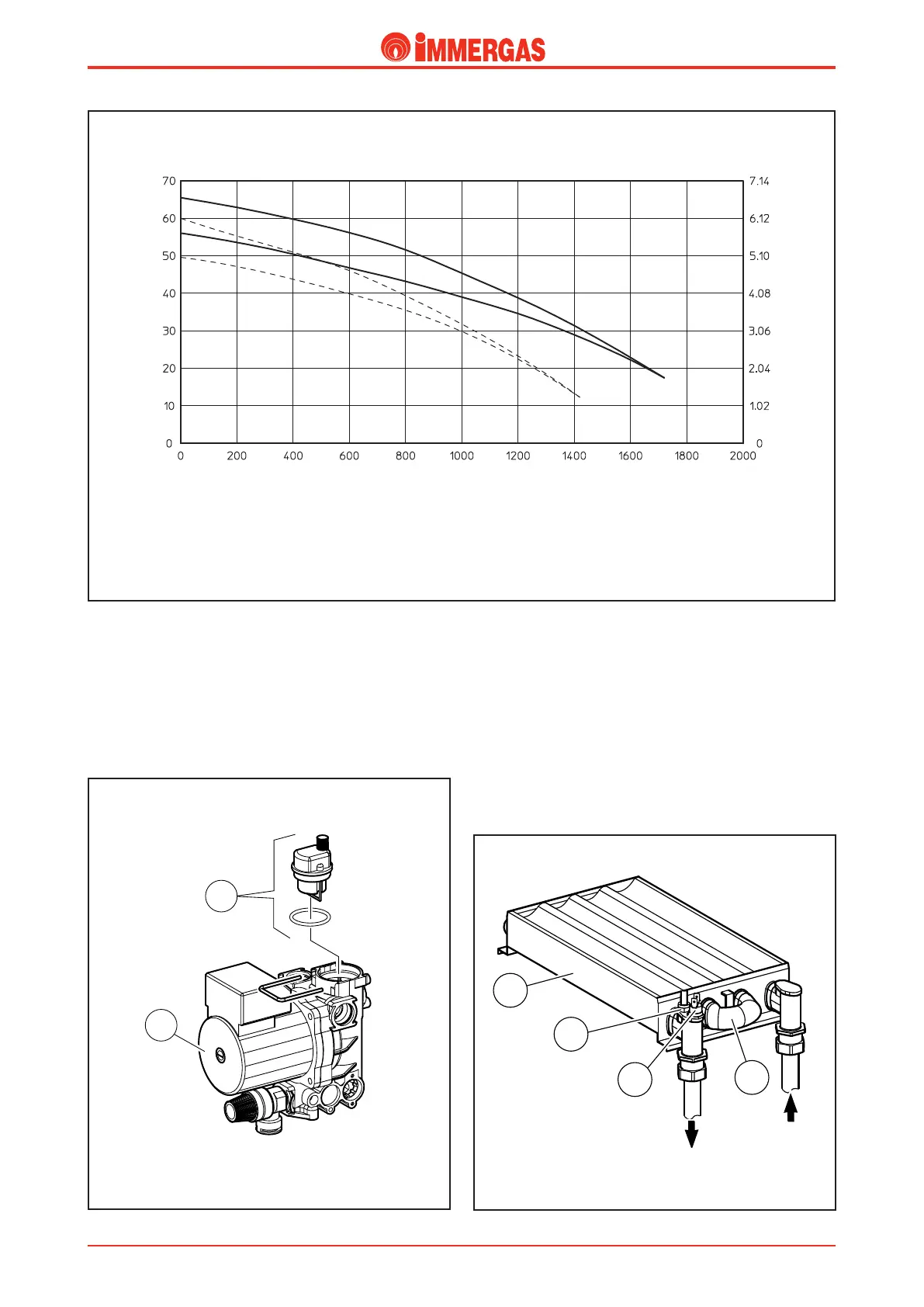

Boiler circulator (1).
It works on the primary circuit return, located immediately
after the 3-way diverter valve to which it is connected.
It is part of the integrated multi-function unit made in a
compound material.
A space on the body houses the automatic air vent (2).
Primary exchanger (1).
It is a water-gas lamellar exchanger with copper pipes and
fins (N° 75 fins 24 kW version) (N° 98 fins 28 and 32 kW
version). e central heating delivery NTC probe (2) and the
overheating safety thermostat (3) are located on the exchanger’s
outlet (delivery).
e four pipes it is made of are connected in series (4).
It is connected to the pump delivery and primary circuit deli-
very by means of pipes with threaded fittings.
1
3
4
2
Delivery
Return
1
2
EOLO Extra 32 kW
Flow-rate l/h
A
B
C
D
A = Head available to the system on maximum speed with the by-pass off.
B = Head available to the system on maximum speed with the by-pass on.
C = Head available to the system at second speed with the by-pass off.
D = Head available to the system at second speed with the by-pass on.
Head (m H
2
O)
Head (kPa)
