Immergas EOLO Extra 24 kW - Page 4

2
STEEkW ed 01/06 EOLO Extra kW
Technical DocumentationTechnical Documentation

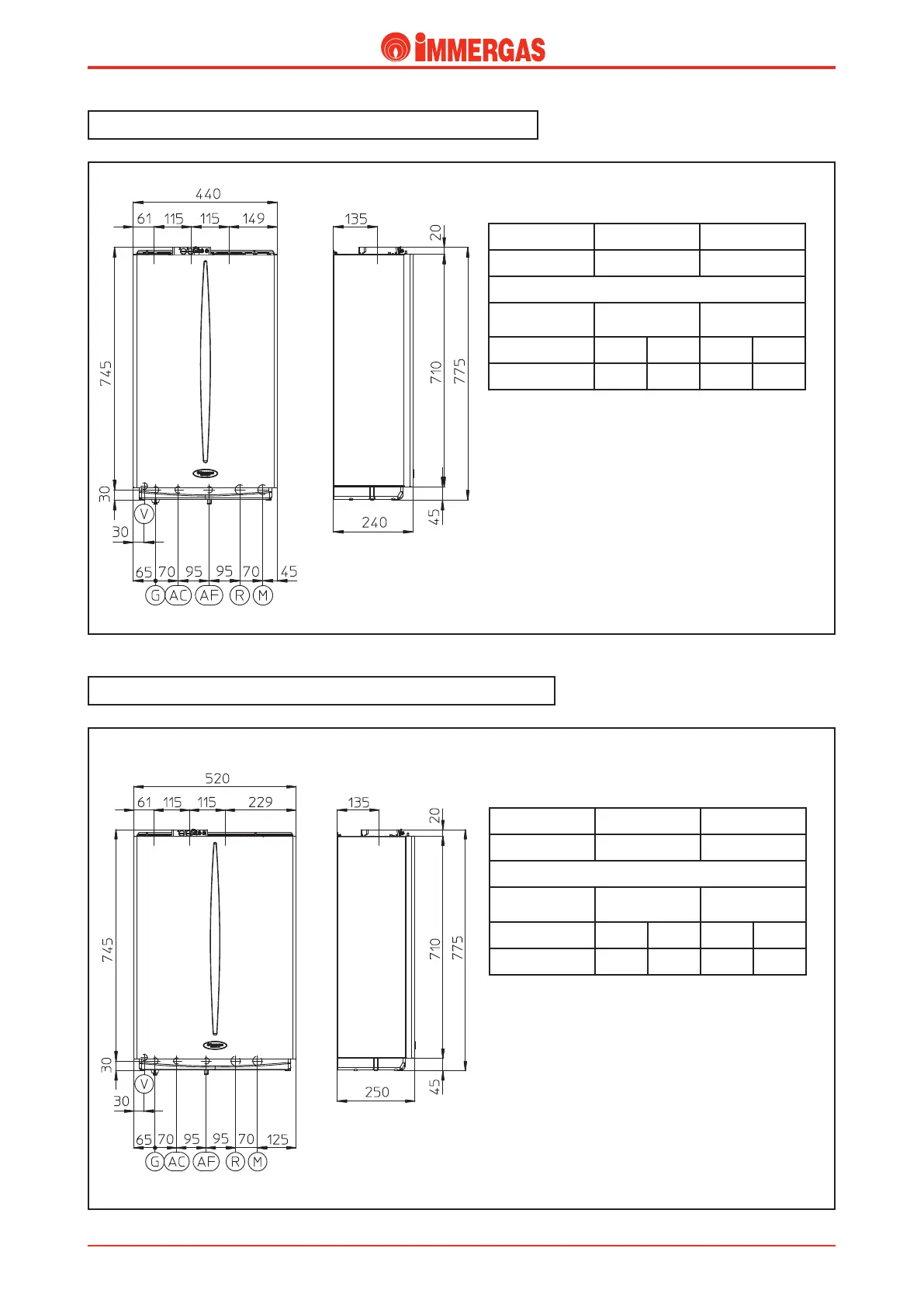

EOLO Extra 24 kW main dimensions and connections.
Legend:
G - Gas supply
AC - D.h.w. outlet
AF - D.h.w. (cold) inlet
R - System return
M - System delivery
V - Electrical connection
Height (mm) Width (mm) Depth (mm)
775 440 240
CONNECTIONS
GAS
DOMESTIC
WATER
SYSTEM
G AC AF R M
1/2” 1/2” 1/2” 3/4” 3/4”
EOLO Extra 28-32 kW main dimensions and connections.
Legend:
G - Gas supply
AC - D.h.w. outlet
AF - D.h.w. (cold) inlet
R - System return
M - System delivery
V - Electrical connection
Height (mm) Width (mm) Depth (mm)
775 520 250
CONNECTIONS
GAS
DOMESTIC
WATER
SYSTEM
G AC AF R M
1/2” 1/2” 1/2” 3/4” 3/4”
