EOLO STAR
Coupling type vertical concentric kit 60 /100
The exhaust pipe (φ 60 mm) is fitted inside the
extraction pipe (φ 100 mm).
Connection to the boiler is made using a flange (1)
that, by means of the necessary extensions, must be
connected to the special 60/100 extraction and exhaust
end with aluminium tile.
Max possible overall length is 4.7 straight and
vertical metres.

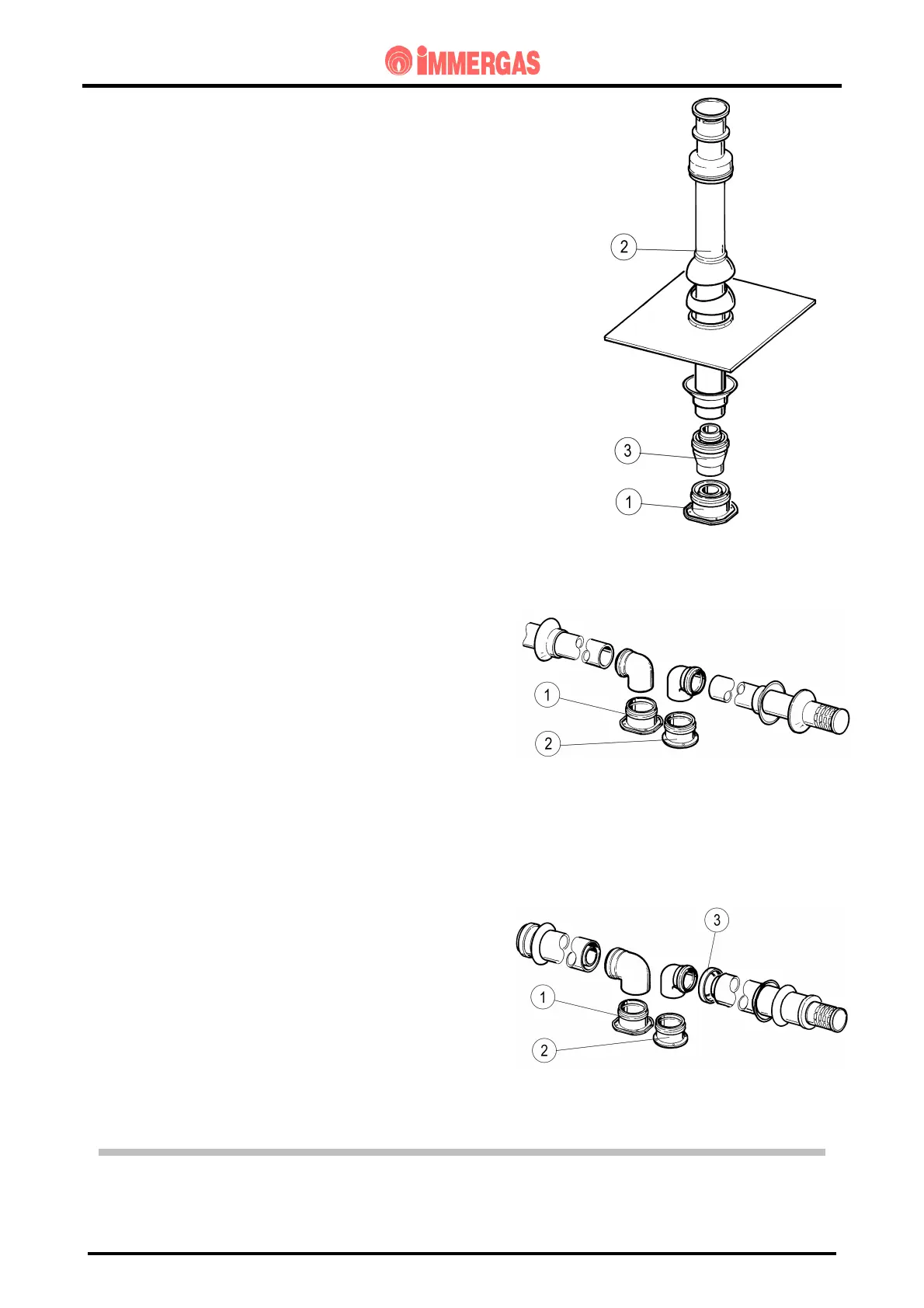

Coupling type vertical concentric kit 80 /125
The exhaust pipe (φ 80 mm) is fitted inside the
extraction pipe (φ 125 mm).
Connection to the boiler is made using a flange (1)
that, by means of the adapter 60/100-80/125 (3) and
necessary extensions, must be connected to the special
80/125 extraction and exhaust end with aluminium tile
(2).
Max possible overall length is 12.2 straight and
vertical metres.
80/80 coupling type separator kit
Both pipes have a diameter of 80 mm.
Connections to the boiler are made using two special
flanges for exhaust (1) from the centre pipe and
extraction (2) from one of the two side holes.
Max possible length (extraction + exhaust) is 33
straight horizontal metres and 41 straight vertical
metres.
To prevent condensation problems, the exhaust pipe
should not be more than 5 m long
Insulated 80/80 coupling type separator kit
Both pipes have a working diameter of 80 mm.
Connections to the boiler are made using two special
flanges for exhaust (1) from the centre pipe and
extraction (2) from one of the two side holes.
Insulation is obtained thanks to special seals (3)
whereby an air space can be created by means of a φ
125 mm external concentric pipe.
Max possible length (extraction + exhaust) is 33
straight metres.
To prevent condensation problems, the exhaust pipe
should not be more than 12 m long
