Immergas EOLO Star Export - Main Component Parts; Control Panel

Technical documentation Technical documentation
STES ed 07/01
2
EOLO STAR

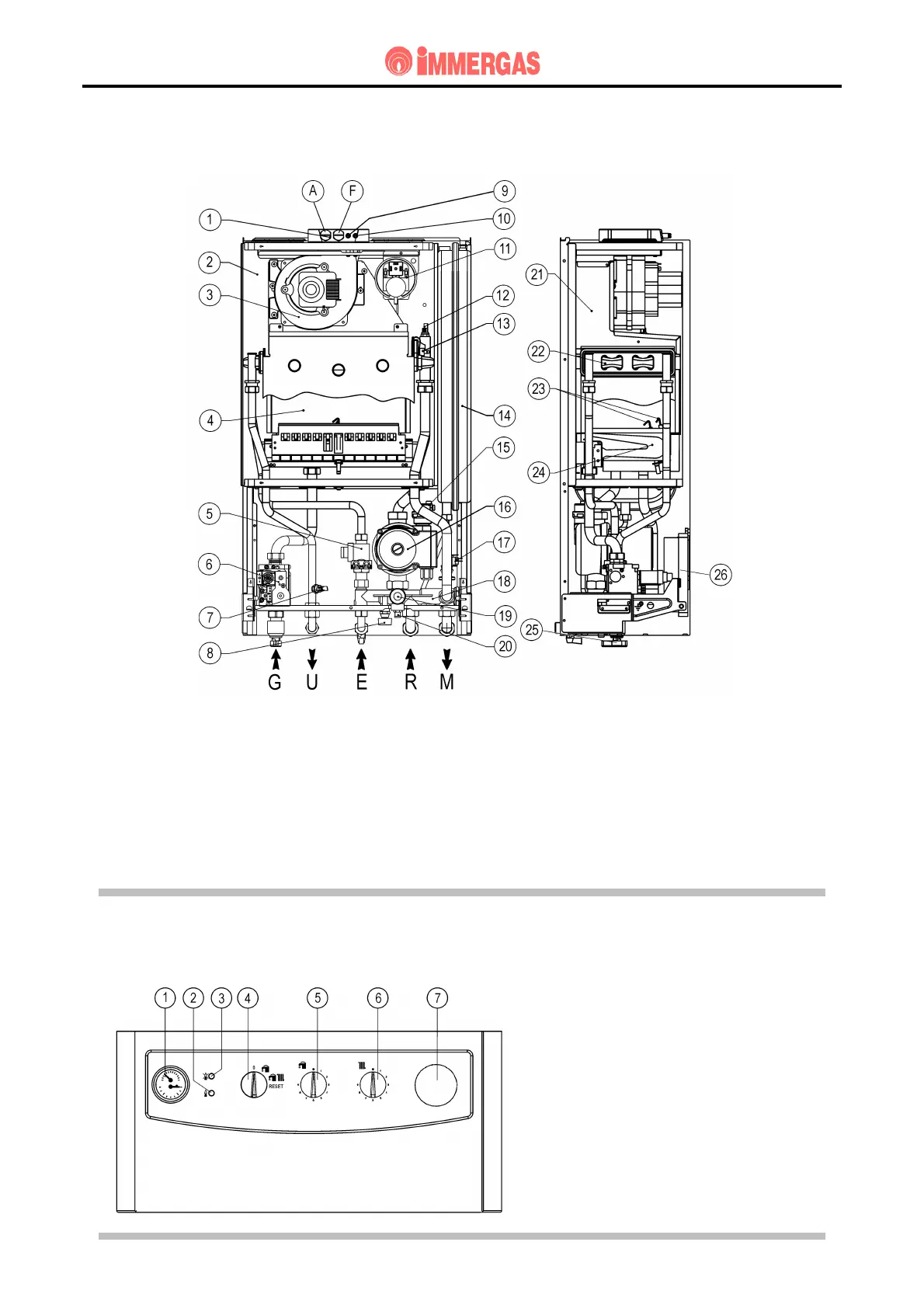

MAIN COMPONENT PARTS
1 - Collection traps (A=air) (F=fumes)
2 - Sealed chamber
3 - Gases expulsion fan
4 - Combustion chamber
5 – D.H.W. flow switch
6 - Gas valve
7 - Hot water NTC probe
8 - System filling cock
9 - Positive signal pressure point
10- Negative signal pressure point
11- Fan safety pressure switch
12- Heat adj. and limit NTC probe
13- Overheat. safety thermostat
14- Expansion vessel
15- Air release valve
16- Circulator
17- Absolute water pressure switch
18- Water manifold
19- 3 bar safety valve
20- System draining stopcock
21- Flue hood
22- Rapid bithermal exchanger
23- Ignition and detection electrodes
24- Burner
25- Gas cock
26- Control panel
CONTROL PANEL
1 - Boiler pressure gauge
2 - Boiler operation yellow indicator
3 - Boiler stop red indicator
4 - 0/SUMMER/WINTER/RESET switch
5 - Hot water temperature switch
6 - Central heating temp. switch
7 - Programming clock hole plate
