Immergas VICTRIX PRO V2 - Page 10

5x
2
6
17
3
5x
1
1
2
4
1
1
6
7
R
M
LEFT OUTLET
18

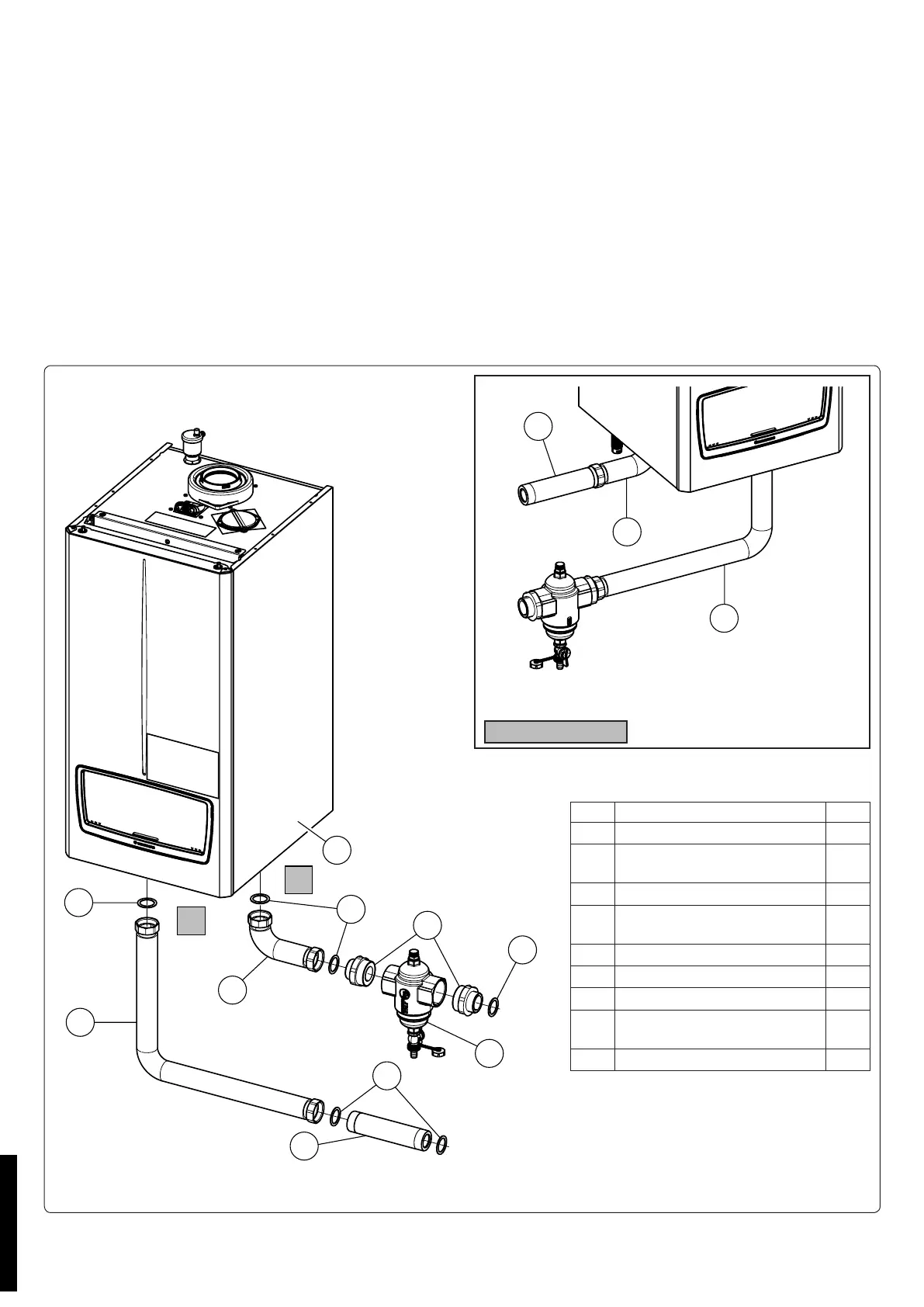

Mounting the dirt separator.
Assemble the nipples (3) on the dirt separator (4), making sure to interpose suitable sealing material such as oakum or similar.
Connect the pipe (2) and the dirt separator (4), previously assembled with the nipples (3), to the return (R) line of the boiler (7), making
sure to interpose the gaskets (1).
Connect the pipe (6) and the pipe (5) in sequence to the delivery line (M) of the boiler (7), making sure to place the gaskets (1) in between
as shown in Fig. 17.
N.B.: Choose the pipe (5) of the appropriate length according to the type of boiler (35-55-80-100-120-150-180) and the type of connection
to be made (le or right) (see Fig. 13, 14, 15 and 16).
Aer the 1st temperature test, check the tightness of all the pipes.
N.B.: the components downstream of the system, such as the expansion tank etc..., must be sized according to the ow rate of the system.
If assembling the kit with free outputs on the le side, perform the installation as shown in gure 18.
Attention: the VICTRIX PRO V2 boilers have an IPX5D electric insulation rating and can also be installed outdoors by means of the
relevant kits. However, if installed outdoors, the kit should be protected from the elements.
e boilers must be installed in the congurations and with their own original safety kits. e factory declines all liability whenever the
installer does not use the devices and approved original kits or uses them improperly.
Ref. Kit components description Q.ty
1 44x34x2 gasket 6
2 Victrix Pro V2 BP set kit ow
pipe
1
3 Brass nipples G 1 1-2 G 2 mm 2
4 Victrix Pro V2 G2 R146MY018
dirt separator
1
5A DN40 G 1 1/2 L.199 pipe 1
5B DN40 G 1 1/2 L.289 pipe 1
5C DN40 G 1 1/2 L.111 pipe 1
6 Victrix Pro V2 dirt separator kit
ow pipe
1
7 Boiler 1
STD.010229/000
