Chapter 2 System Configuration
2-1
Chapter 2. System Configuration
TheIMO-K7Sseries has suitable to configuration of the basic, computer link and network systems.
This chapter describes the configuration and features of each system.

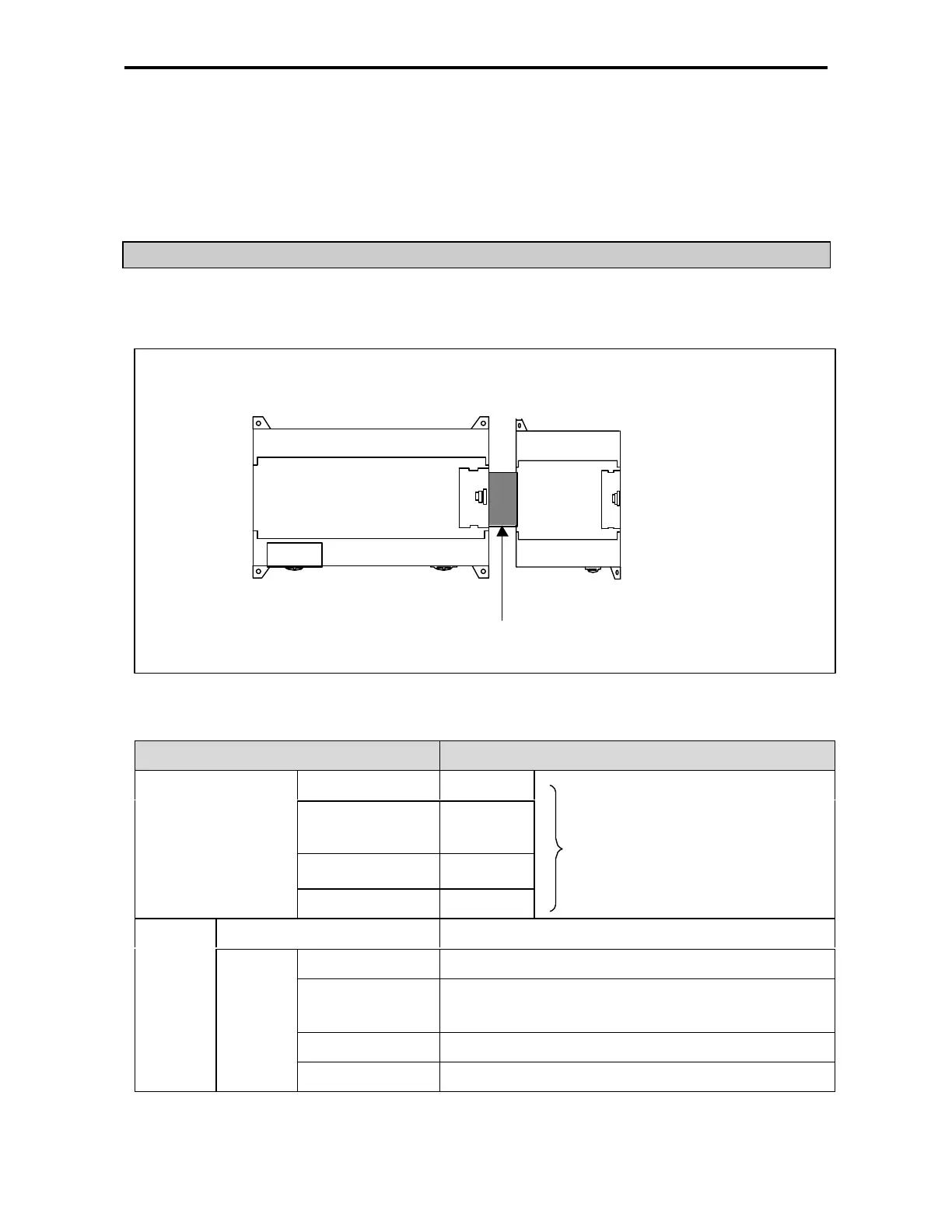

2.1. Overall Configuration
2.1.1 Basic system
Total I/O points • 20-80 points
Digital I/O module • 2 modules
A/D-D/A
Composite module
• 2 modules
Analog timer • 3 modules
Maximum numbers
of ex pansion modules
Cnet I/F module • 1 module
Main unit • K7M-DR20S, K7M-DR30S, K7M-DR40S, K7M-DR60S
Digital I/O module • G7E-DR10A
A/D-D/A
Composite module
• G7F-ADHA
Analog timer • G7F-AT2A
Items
Expansion
module
Cnet I/F modules • G7L-CUEB, G7L-CUEC
main unit
ex pansion
module
expansion
cable
Total 3 modules
