Chapter 7 Usage of Functions
7-
５９

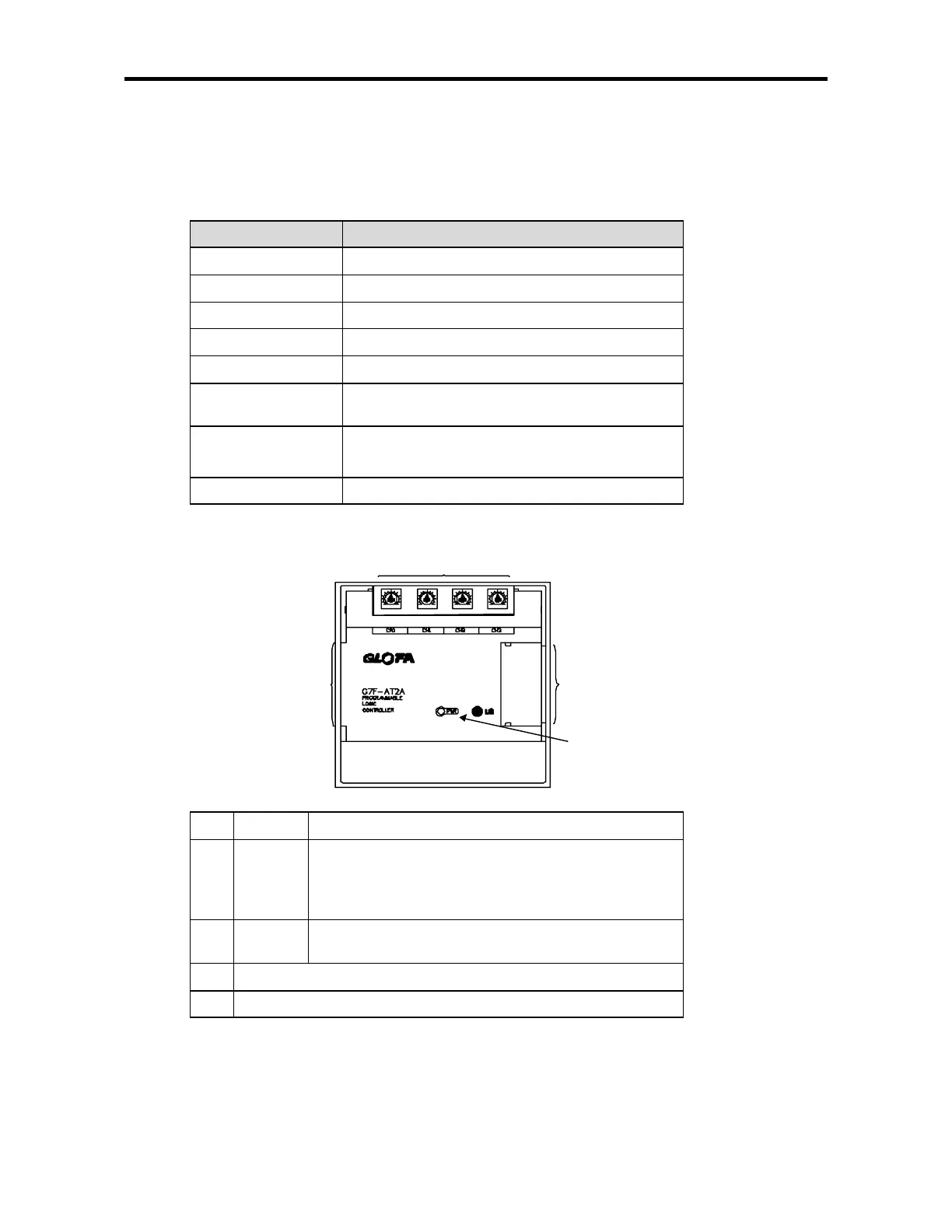

7.2.2 Analog timer
1) Performance specification
The performance specification of the analog timer module are following.
Item Specification
Number of channels 4
Output value range 8 Bit (Digital output range: 0
200)
Setting type Setting by variable resistance
Accuracy of timer
ᇹ
2.0% (Accuracy about max. value)
Operation method Storing data register automatically
Internal current
consumption
50
Ꮄ
Number of module
installment
Max 3 modules
Weight 200g
2) Names of parts and functions
No. Name Contents
ᐭ
RUN LED
Indicate the operating status the G7F-AT2A.
On: normal operating
Off: DC 5V power off or the g7f-at2a module fault
ᐮ
Channel
Setting up the length of timer through variable resistance to every
channel.
ᐯ
Extension cable
ᐰ
Extension cable connection terminal
①
③
