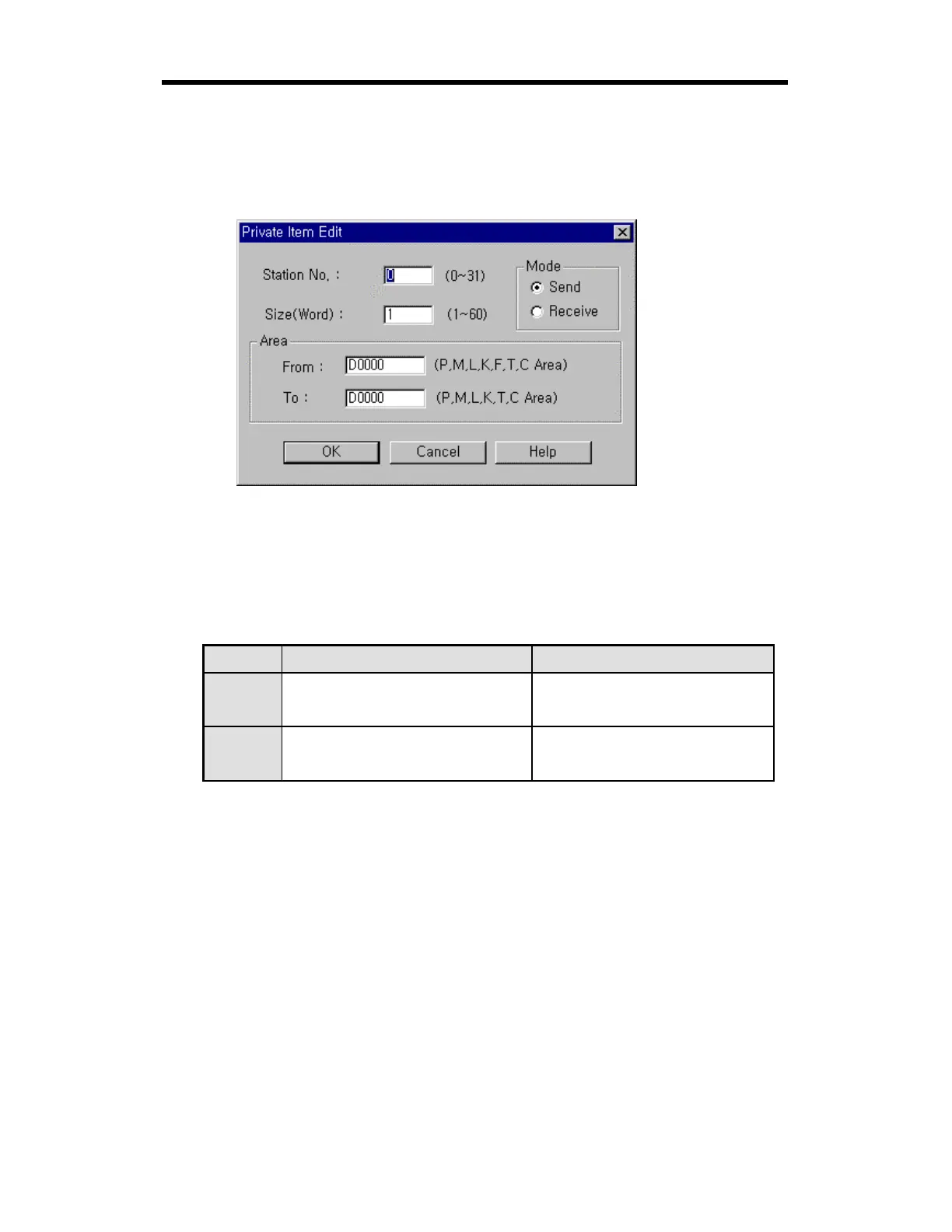

(6) This is a window you can change 'dedicated use 1' setting.
N Station number : set the number of the slave or opponent station.
N Mode : click 'send' for writing data on the slave station, or 'receive' for reading from it.
N Size : data size for reading and writing of the master station can be specified up to 60 WORDs.
N Area:
Item Send mode Receive mode
Area(from)
that is in the master station to temporarily
save the data to be written.
that is in the slave station for the data to
be read.
Area(to) that is in the slave station to write the data.
that is in the master station to temporarily
save the data to be read.
