Chapter 6 Input and Output Modules
6-
３
3) Input wiring

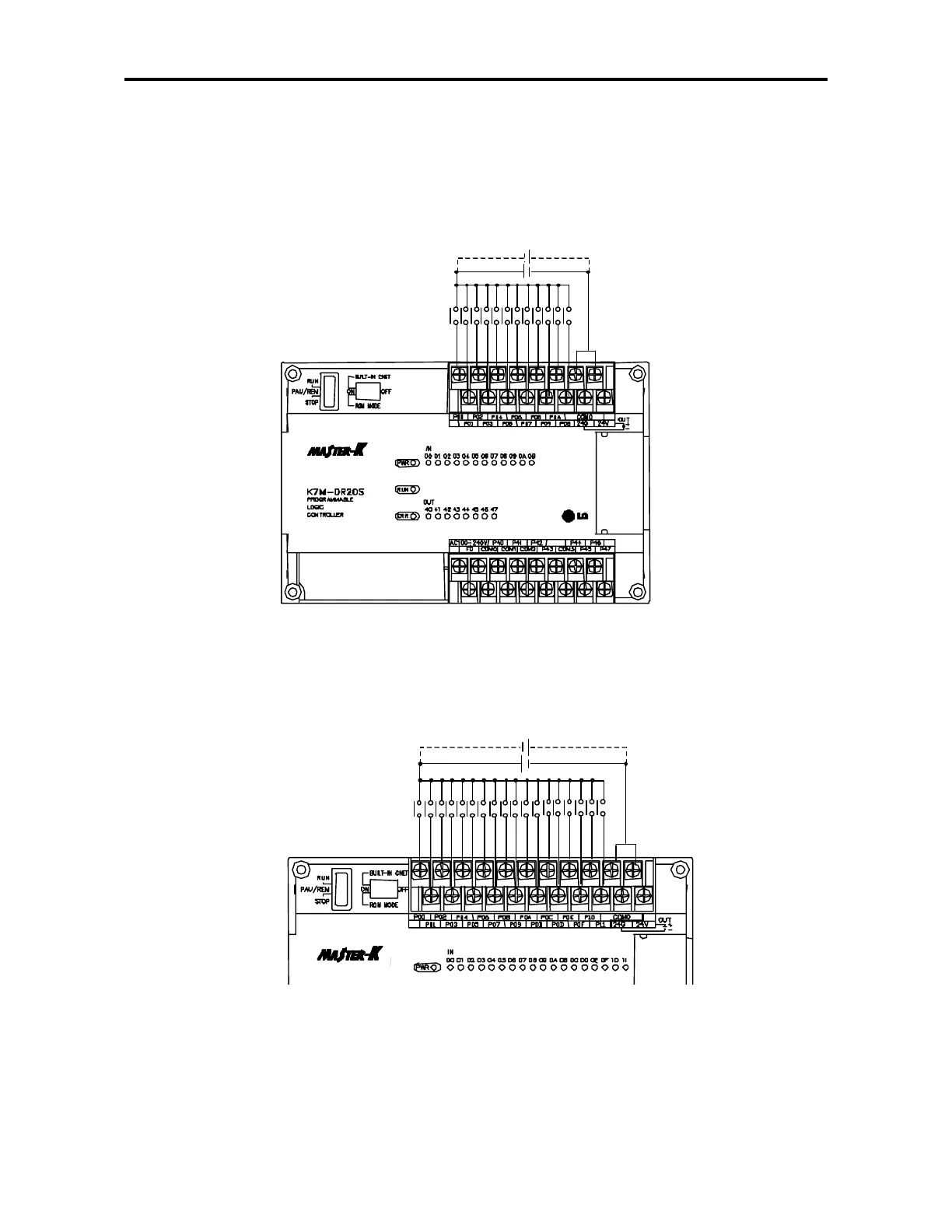

Base unit’ s wiring method is as follows. DC input specifications offered by K80S is to be used for both electric
current sink and electric current source.
(1) 20-points base unit
(2) 30-point base unit
DC24V
DC24V
