IMO Precision Controls K7M-DR30S User Manual

Chapter 7 Usage of Various Functions
7-
ేో
5) The setting of pulse out parameter

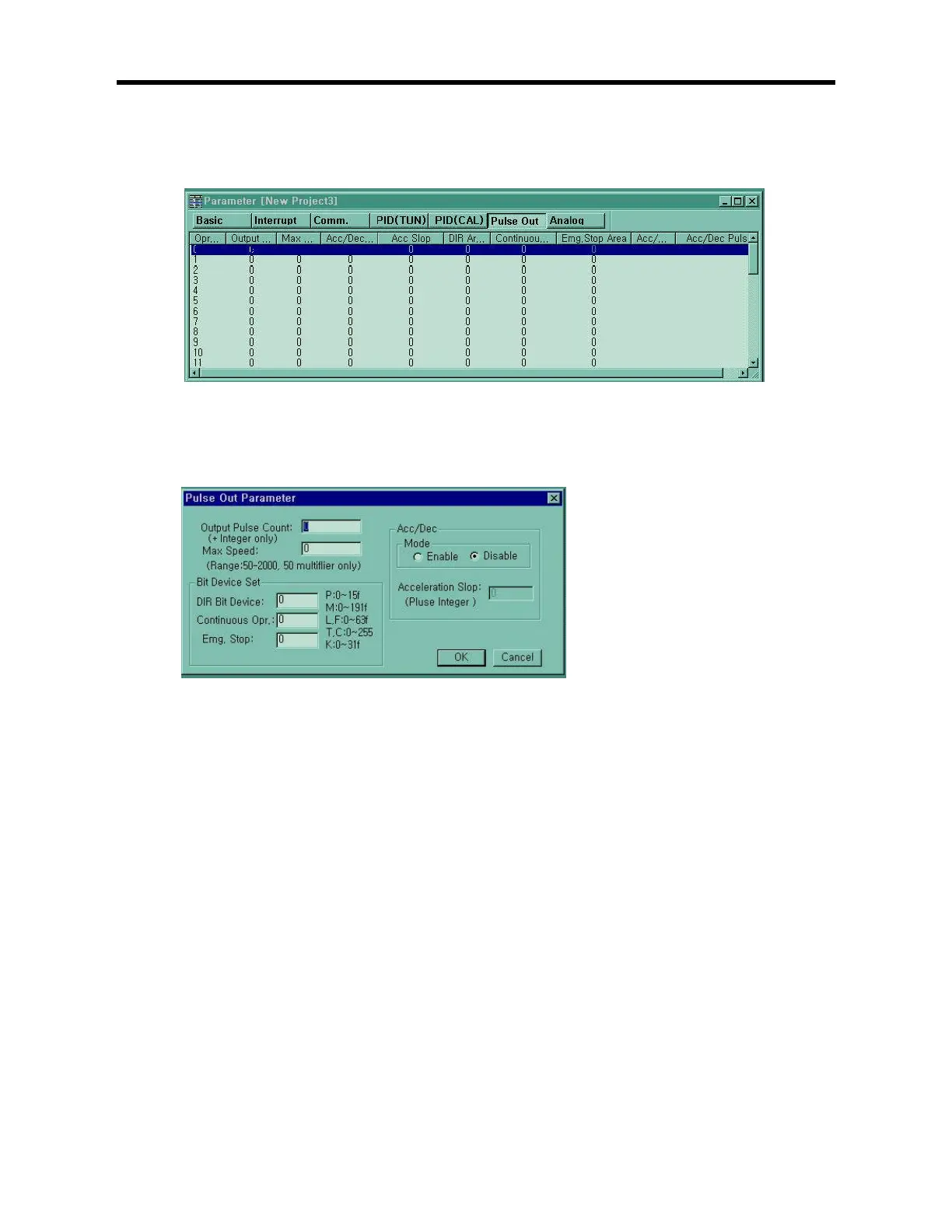

The setting of pulse out parameter set KGLWIN. Setting windows is as below.
It is possible to set 40 operational pattern.
When click the pattern no. parameter setting window is displayed as bellow
6) parameter explanation
(1) operational pattern No.
operation pattern No. is each pulse out pattern No. Max. 40 patterns can be set
(2) Output pulse count
It sets output pulse number.(The setting range : 0 ~ 42944967295)
(3) Max speed
It sets operational speed at normal section (The setting range : 50 ~ 2000pps,
50multiflier only)
(4) Acceleration/ Deceleration mode
Acceleration/ Deceleration mode is designation of increasing/decreasing velocity operation
Disable : uniform velocity operation enable : increasing/decreasing velocity operation
(5) Acceleration/deceleration slop
Acceleration slop is available in case that acceleration/deceleration mode is enable
This is slop that pulse frequency reach to maximum pulse frequency from ‘ 0’ pulse. (only integer)
(6) Bit device set
a) Direction contact signal
setting of contact for direction signal output
