F.
• Fit the key back in position, see fig. 9.
• Fit the shaft coupling back into place (see fig. 7
and 8) with the same methode used when
fitting the ball bearing.
Fig. 24
!
Fig. 25
G.
• Remove the plug 537 and washer 537A.
• Hold the rotor unit horizontally with the
bore for 537 upwards. Carefully fill the
space completely with thin oil
(f. ex. ISO VG 46).
• When the oil is flooding, reassemble the
above parts in reverse order.
• Slowly turn the shaft a few turns to make
sure it moves freely (a certain resistance
from the shaft seal is normal but it must be
the same during the turns).

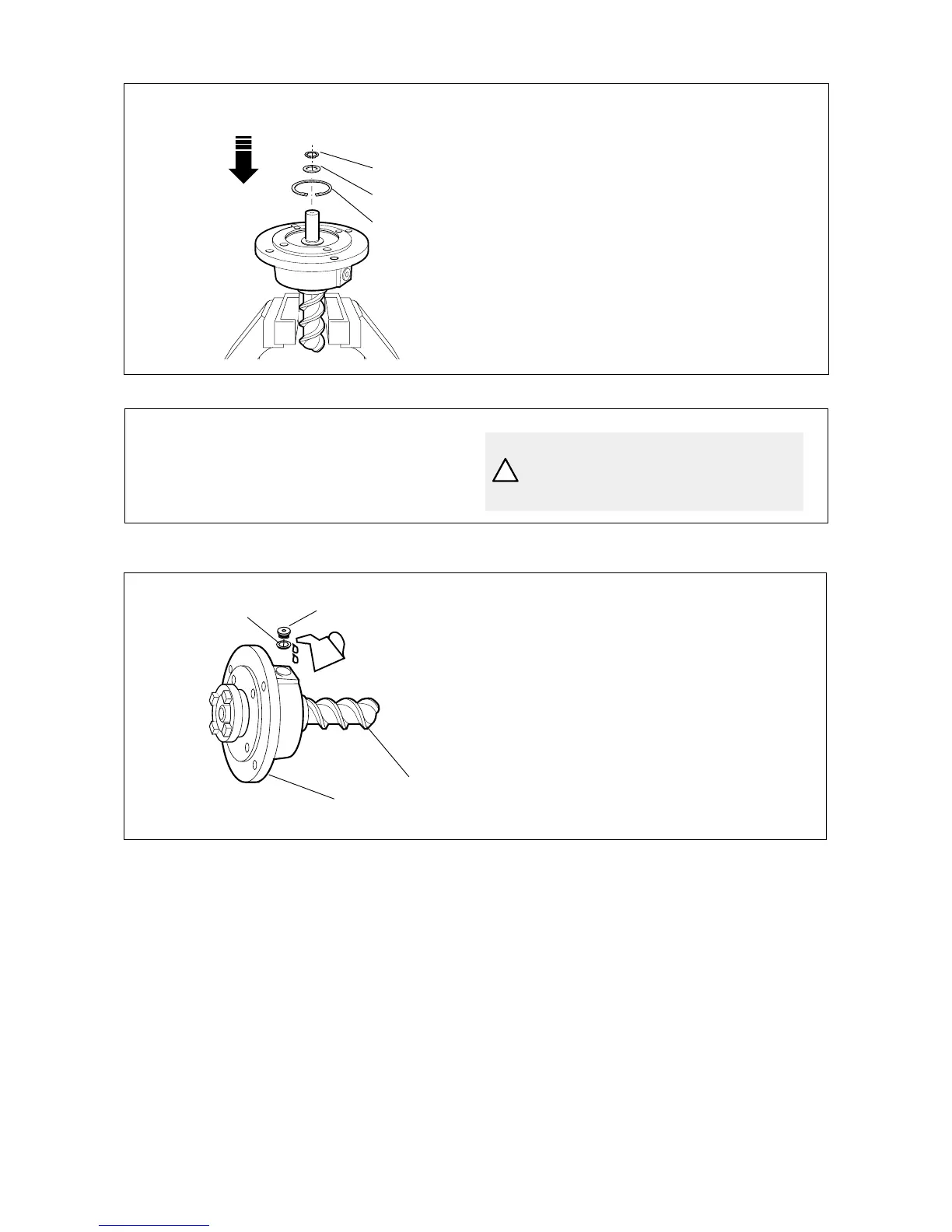

• Fit the support ring 124A and the retain-
ing ring 124 on the shaft.
• Fit the retaining ring 514 back in place.
26 ' IMO AB
124
124A
514
E.
Fig. 23
5010
1020
537
537A
Do not use a hammer etc. as this might
damage the shaft seal and ball bearing.
