IMO ACG - Dismantling; Preparation and Initial Removal

7
ACG 0621GB
October 2002
IMO AB, Telephone: + 46 8 50 622 800, Telefax: + 46 8 645 15 09
E-mail: info@imo.se
ACG14 ' IMO AB

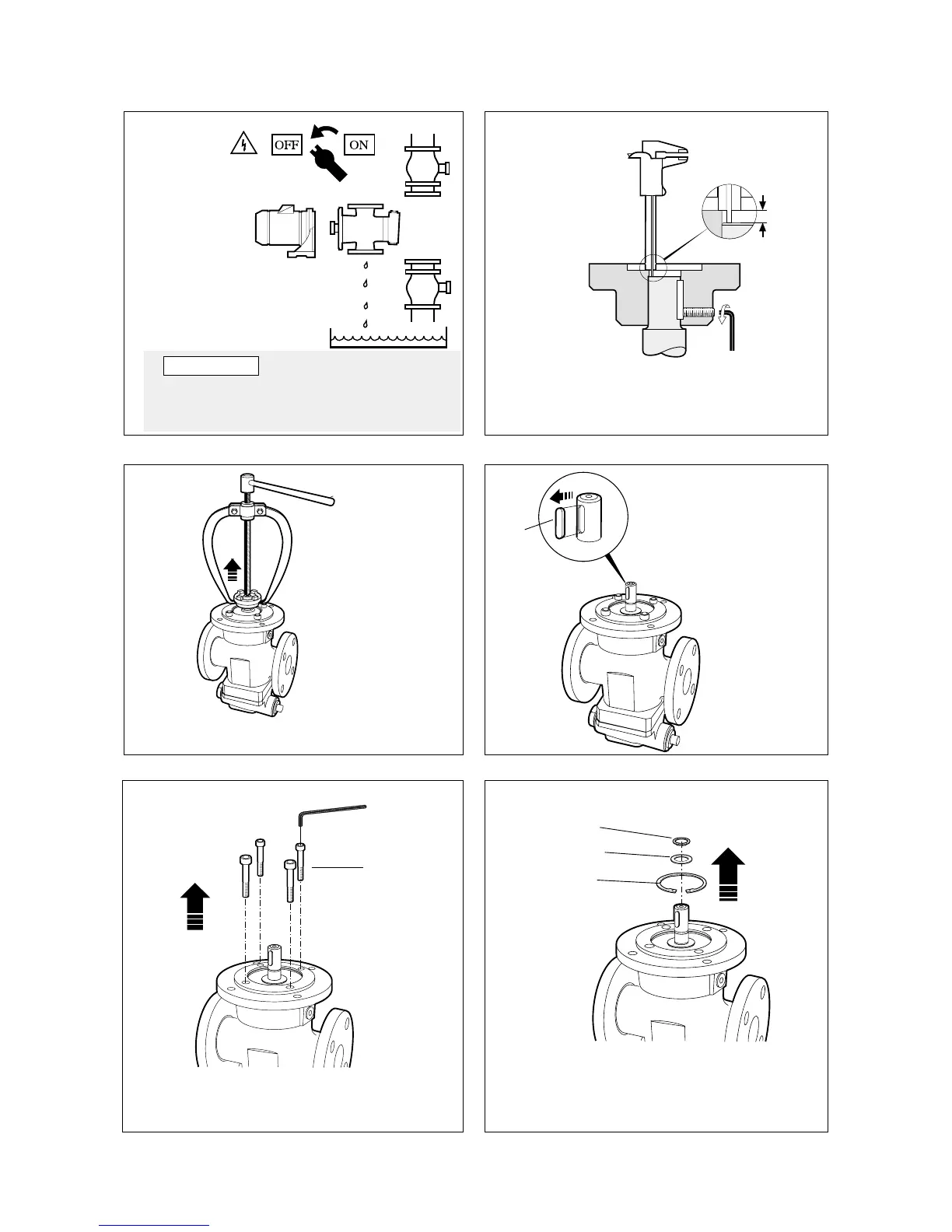

Dismantling
• Note the axial position of the shaft coupling.
• Release the stop screw.
A. B.
C. D.
ACG11 ' IMO AB
• Remove the key
113.
• Remove the shaft
coupling.
F.E.
451
• Remove the screws 451.
124
124A
514
ACG12 ' IMO AB
ACG13 ' IMO AB
• Remove the retaining rings 124 and 514.
• Remove the support ring 124A.
Fig. 8 Fig. 9
Fig. 7Fig. 6
Fig. 11
Fig. 10
ACG10 © IMO AB
• Turn the
electricity OFF.
• Close the valves.
• Remove the pump
from the system.
ATTENTION
Use appropriate vessels to collect oil spill-
age when removing and opening the pump.
ACG9 © IMO AB
113
