IMO ACG - Exploded view; Ordering code

3
ACG 0621GB
October 2002
IMO AB, Telephone: + 46 8 50 622 800, Telefax: + 46 8 645 15 09
E-mail: info@imo.se
ACG3 © IMO AB
473
537
537A
506
401
556
480
551
453
462
462A
462
537
537A
473A
1010
201
608A
601
602
605
608
612
615
614
453
480
1020
202
113
113
509
359
359A
514
202
124A
124
122 120
451
5010
453
462
462A
462

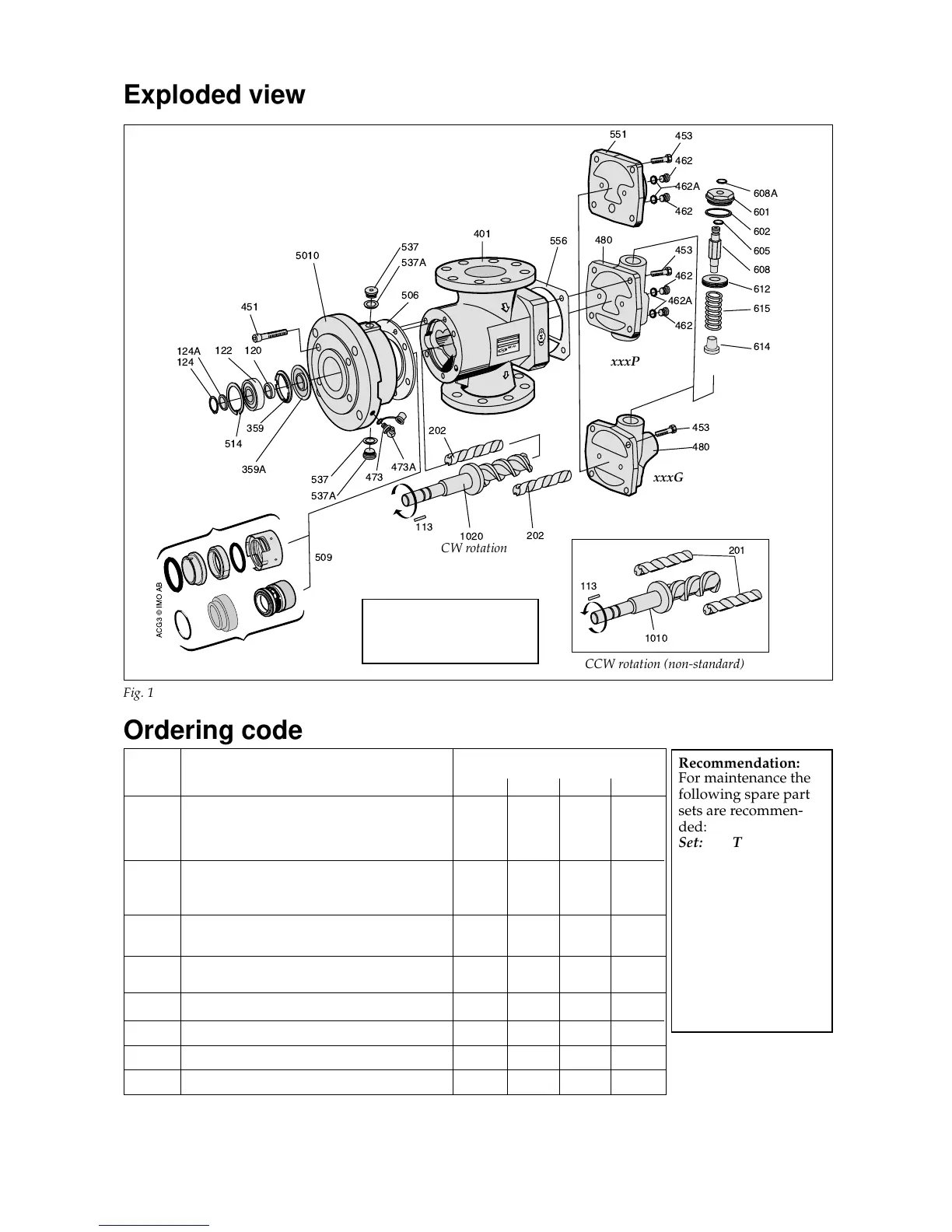

Fig. 1
Exploded view
CCW rotation (non-standard)
xxxP
xxxG
CW rotation
Ordering code
Recommendation:
For maintenance the
following spare part
sets are recommen-
ded:
Set: To be used:
G057 Joint kit
For dismantling of
the pump
G053 Minor kit
For service
G054 Major kit
For repair after
damage or greater
wear.
Pos Spare parts sets Part numbers, sizes
No 045 052 060 070
Rotor set CW-rotation (std):
G012 Normal lead - pump version N7 178913 179507 179515 179523
" Low lead - pump version K7 187542 187559 187567 187575
Rotor set CCW-rotation (non-std):
G011 Normal lead - version N7 186478 186486 186494 186502
Low lead - version K7 189641 189642 189643 189644
G050 Complete shaft seal - version code xVxx 190335 190336 190338 190340
” ” - version code xTxx 174094 174102 174110 174128
G053 Minor kit - version code xVxx 191241 191243 191245 191247
” ” - version code xTxx 191242 191244 191246 191248
G054 Major kit=G012(G011)+G053 - - - -
G057 Joint kit 191237 191238 191239 191240
G070 Valve element - version code xxxP/G 191250 191250 191251 191251
122 Ballbearing 078576 077461 191181 191182
Details in pump option A327
See the sectional view p. 6
Fig. 2
Version xTxx
Ordering example:
For IMO-pump ACG 045N7
NVBP, serial number 456789
Shaft seal
pos G050 p/n 190335
Ballbearing
pos 122 p/n 078576
xxxE
ACG/UCG xxBE/BP/BG
Version xVxx
