IMO VXSM550-3 - Main Circuit Terminal Layouts

2-9 Installation and Connection
2
2-3-4 Terminal Layout
(1) Main circuit terminal block

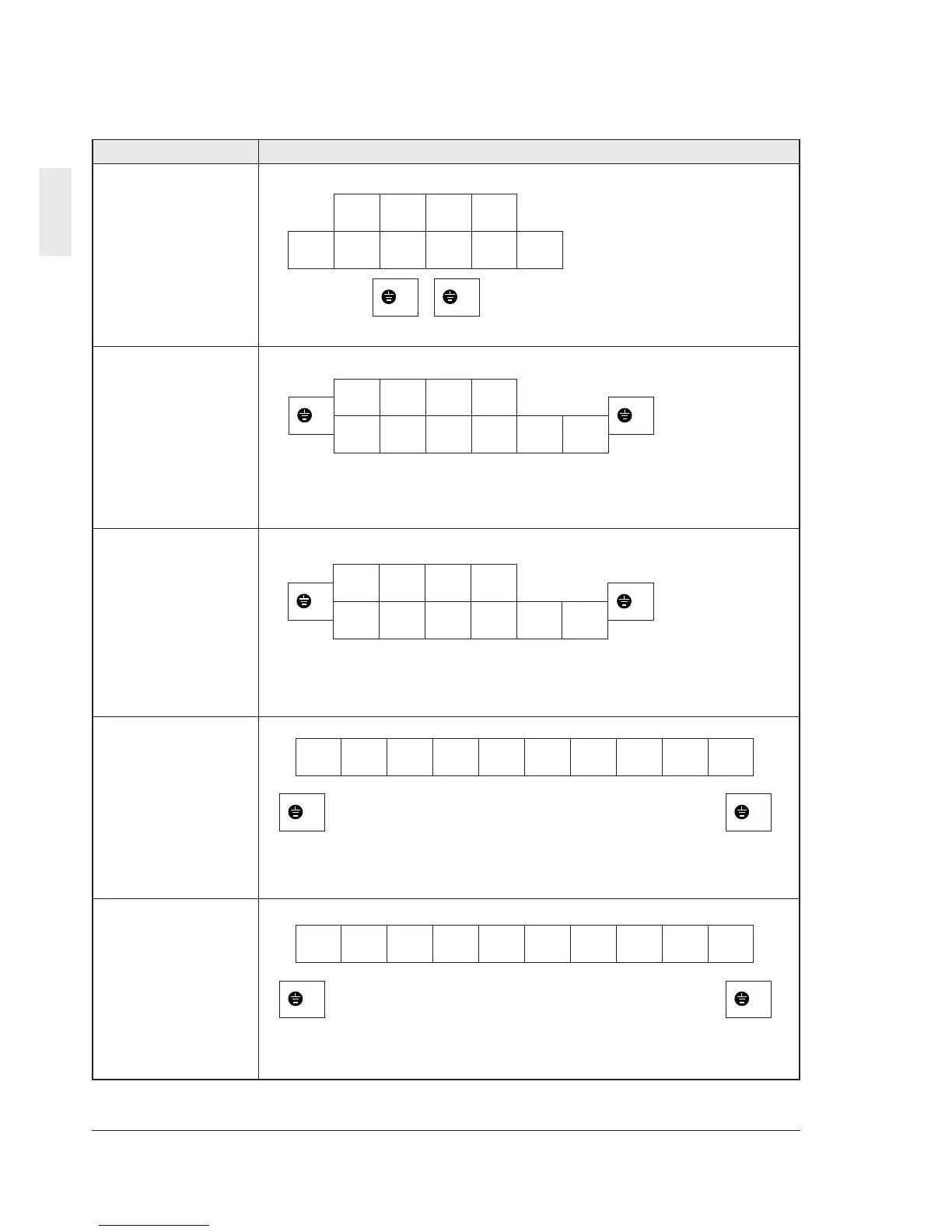

Inverter type Main circuit terminal drawing
VXSM40-1
Screw size : M3.5
Tightening torque : 1.2N
.
m
VXSM75-1
Screw size : M4
Tightening torque : 1.8N
.
m
VXSM40-3
VXSM75-3
VXSM50-3
VXSM220-3
Screw size : M4
Tightening torque : 1.8N
.
m
VXSM150-1
VXSM220-1
Screw size : M4
Tightening torque : 1.8N
.
m
VXSM400-3
Screw size : M4
Tightening torque : 1.8N
.
m
L1/L L2/N U V W
DB P1 P(+) N(-)
G G
G G
L1/L L2/N U V W
DB P1 P(+) N(-)
G
G
L1/R L2/S L3/T U V W
DB P1 P(+) N(-)
G
G
L1/L L3/N DB P1 P(+) N(-) U V W
G G
L1/R L2/S L3/T DB P1 P(+) N(-) U V W
