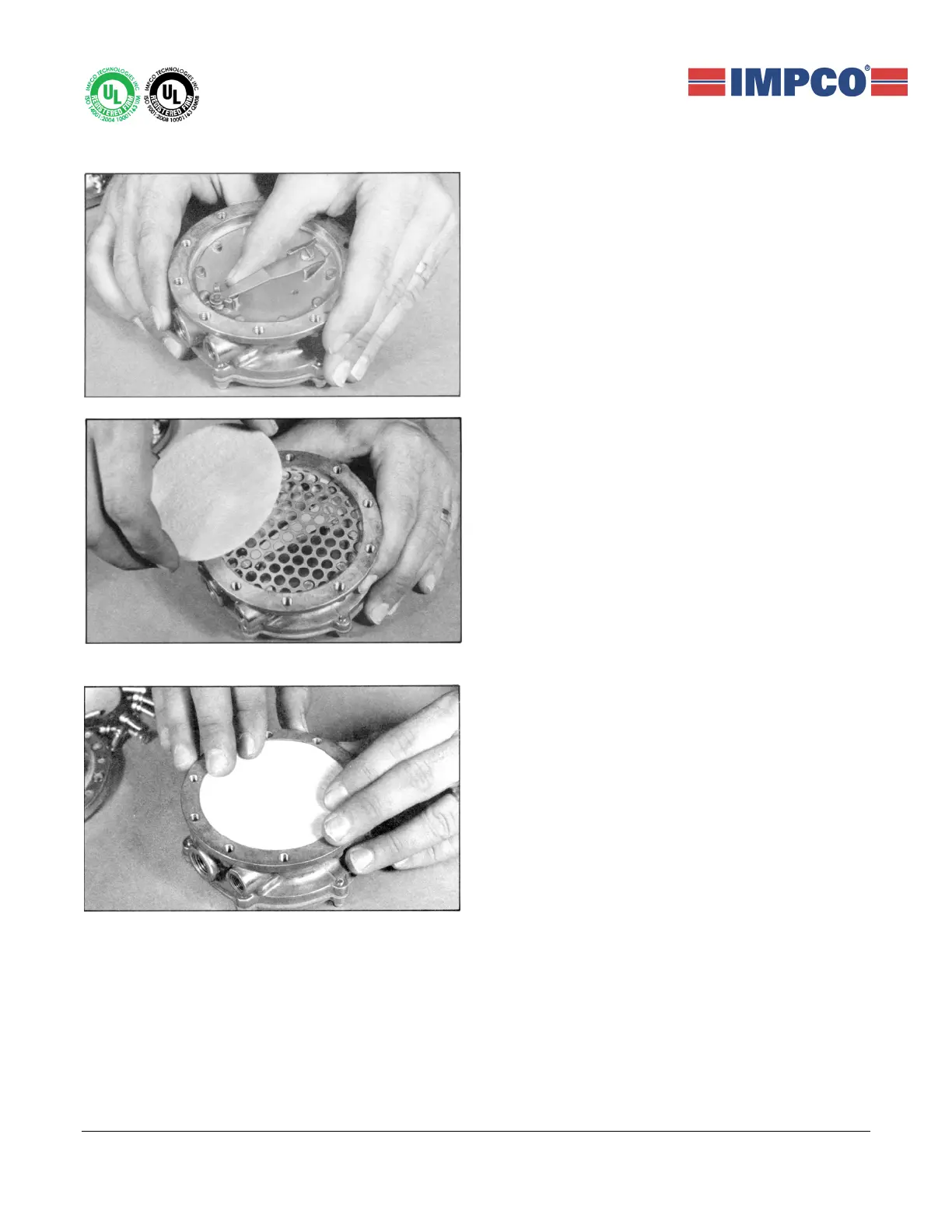

27. When Spring (11) is in place, lift it slightly to ensure
it can move freely.
28. Insert Screen (12) and Filter (13) into recess.
29. Press Filter (13) so that’s properly seated in
recess.
