STEP 2 (See Diagram 2)
A.) Slide the Sliding Block (#5) onto the Main Seat Support (#4). Align the holes and secure
it with a Lock Knob (#23).
B.) Attach the Main Seat Support to the Cross Brace (#3). Secure it with two M10 x 2 ½”
Carriage Bolts (#38), one 4 3/8” x 1 ¾” Bracket (#24), two ∅ ¾” Washers (#39), and
two M10 Aircraft Nuts (#40).
C.) Attach the Leg Developer Holder (#8) to the Main Seat Support (#4). Secure it with two
M10 x 2 ½” Carriage Bolts (#38), two ∅ ¾” Washers (#39) and M10 Aircraft Nuts (#40).
Attach a Lock Knob (#23) to the hole on the Leg Developer Holder.
D.) Attach the Leg Developer (#9) to the open bracket on the Leg Developer Holder. Align
the holes and secure it with an Axle (#27), two M10 x 5/8” Allen Bolts (#41), and two ∅
¾” Washers (#39).
E.) Attach a Spring Clip (#34) to the weight post on the Leg Developer.
F.) Attach the Curl Bar Handle Support (#13) to the open bracket on the Leg Developer.
Lock it with a 3” L-shaped Lock Pin (#30) for Arm Curl exercise. Remove the Pin when
using the Leg Developer.

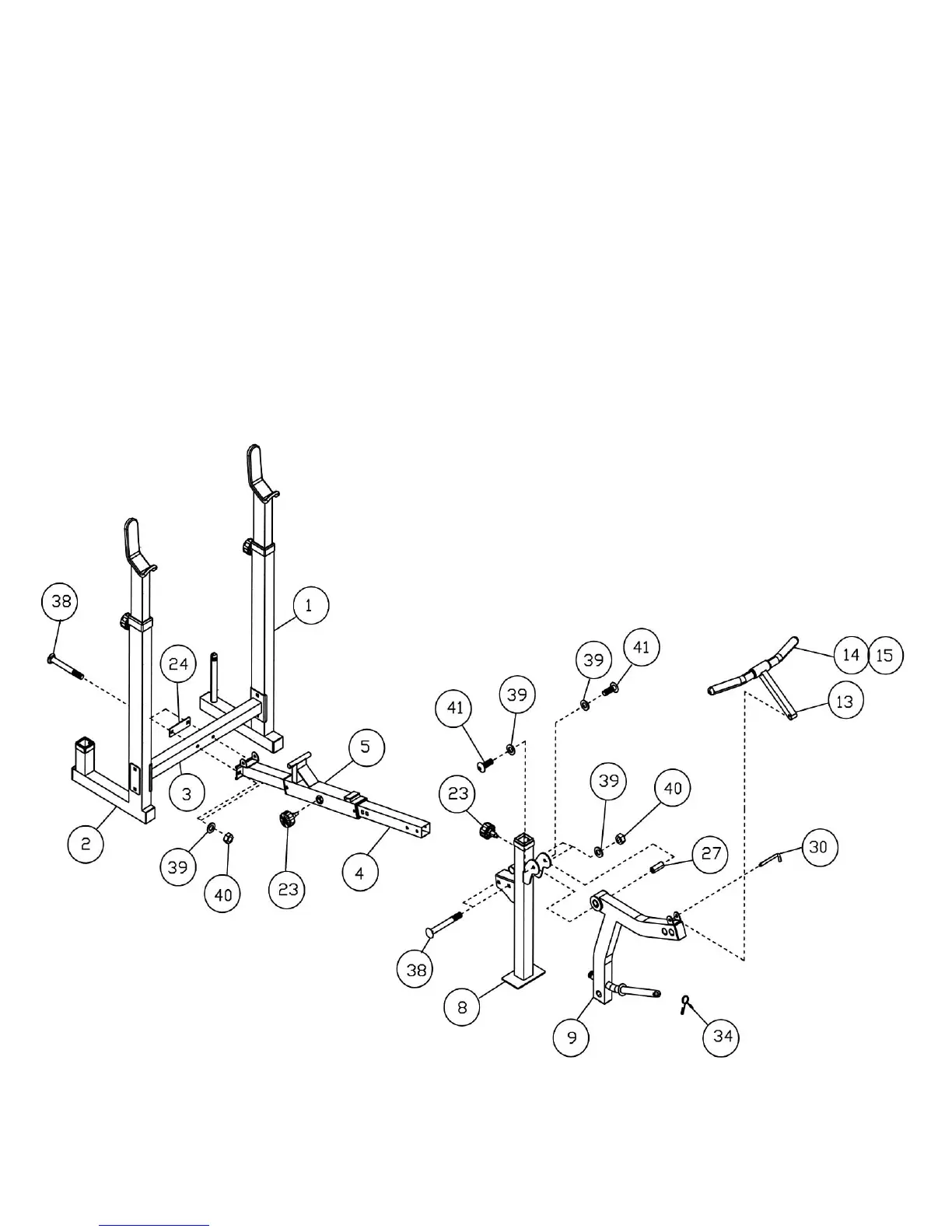

DIAGRAM 2
5
