ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.
STEP 1 (See Diagram 1)
A.) Connect the Right Upright Beam (#1) and Left Upright Beam (#2) by a Cross Brace
(#3) in the mid-span. Align the holes and secure each end of the Cross Brace with two
M10 x 2 ¾” Carriage Bolts (#43), one 4 ¾” x 2” Bracket (#22), two ∅ ¾” Washers
(#39), and two M10 Aircraft Nuts (#40).
B.) Insert two Crutches (#7) into the top openings on the Upright Beams. Secure them with
two Lock Knobs (#23) through selected holes to obtain desired height of the Supports.

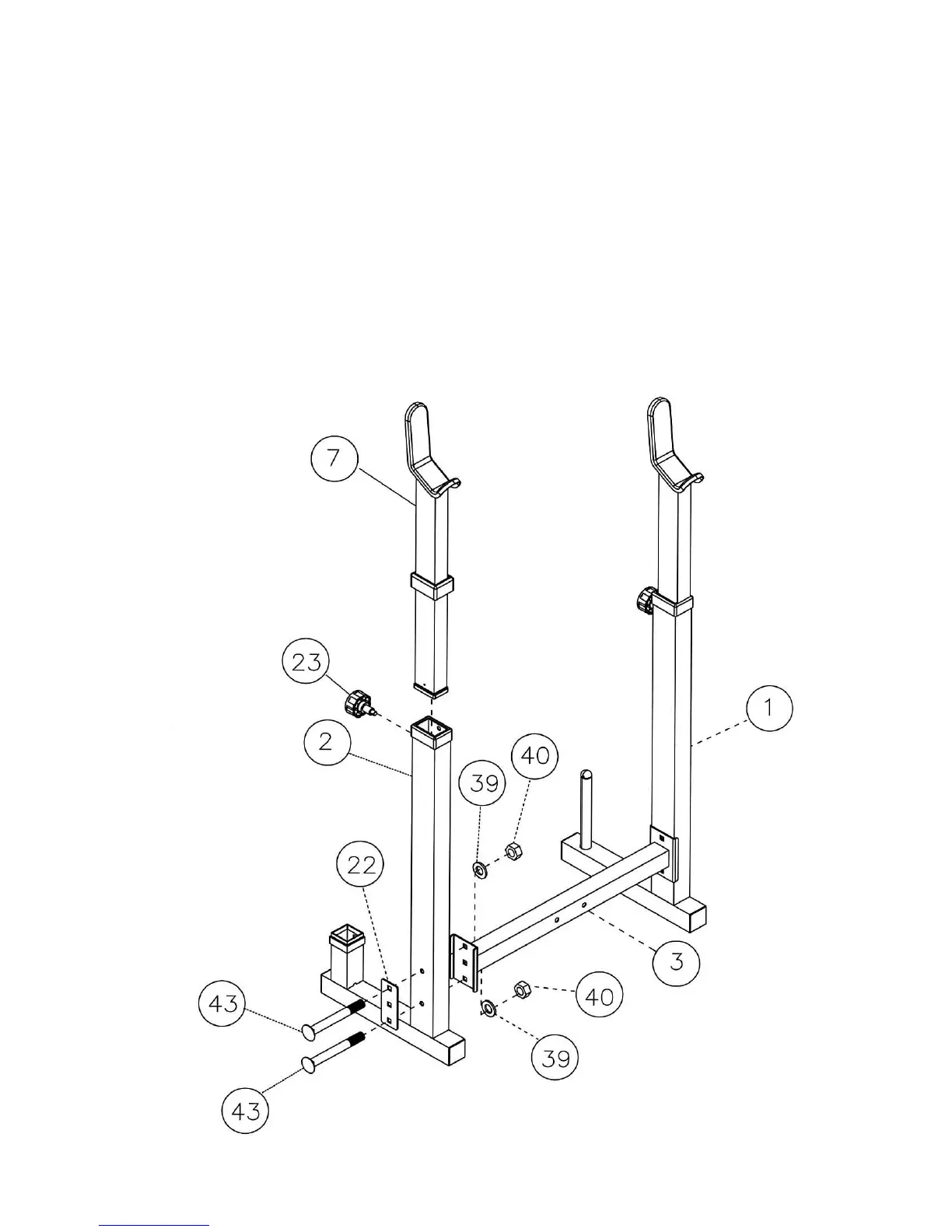

DIAGRAM 1
