Impex AX-697 - Assembly Step 4: Seat, Backrest Board, and Arm Curl Pad

STEP 4 (See Diagram 4)
A.) Attach the Seat Incline Adjustment (#19) to the two front holes on the bottom of Seat
Bracket (#6). Place the Seat (#18) onto the Seat Bracket. Align the holes and secure
it with four M8 x ¾” Allen Bolts (#35) and four ∅ 5/8” Washers (#36). Secure the
position of the Incline Adjustment with a 4” L-Shaped Pin (#29).
B.) Place the Backrest Board (#17) onto the Backrest Supports (#12). Secure it with four
M8 x 1 5/8” Allen Bolts (#37) and ∅ 5/8” Washers (#36).
C.) Attach the Arm Curl Pad (#16) to the Arm Curl Stand (#10). Secure it with two M8 x
¾” Allen Bolts (#35) and ∅ 5/8” Washers (#36).
D.) Insert the Arm Curl Stand into the front opening on the Leg Developer Holder for Arm
Curl exercises. Use the Lock Knob on the Leg Developer Holder to secure the
position. When using the Leg Developer, remove the Arm Curl Stand and store it to
the post on the base of Right Upright Beam.

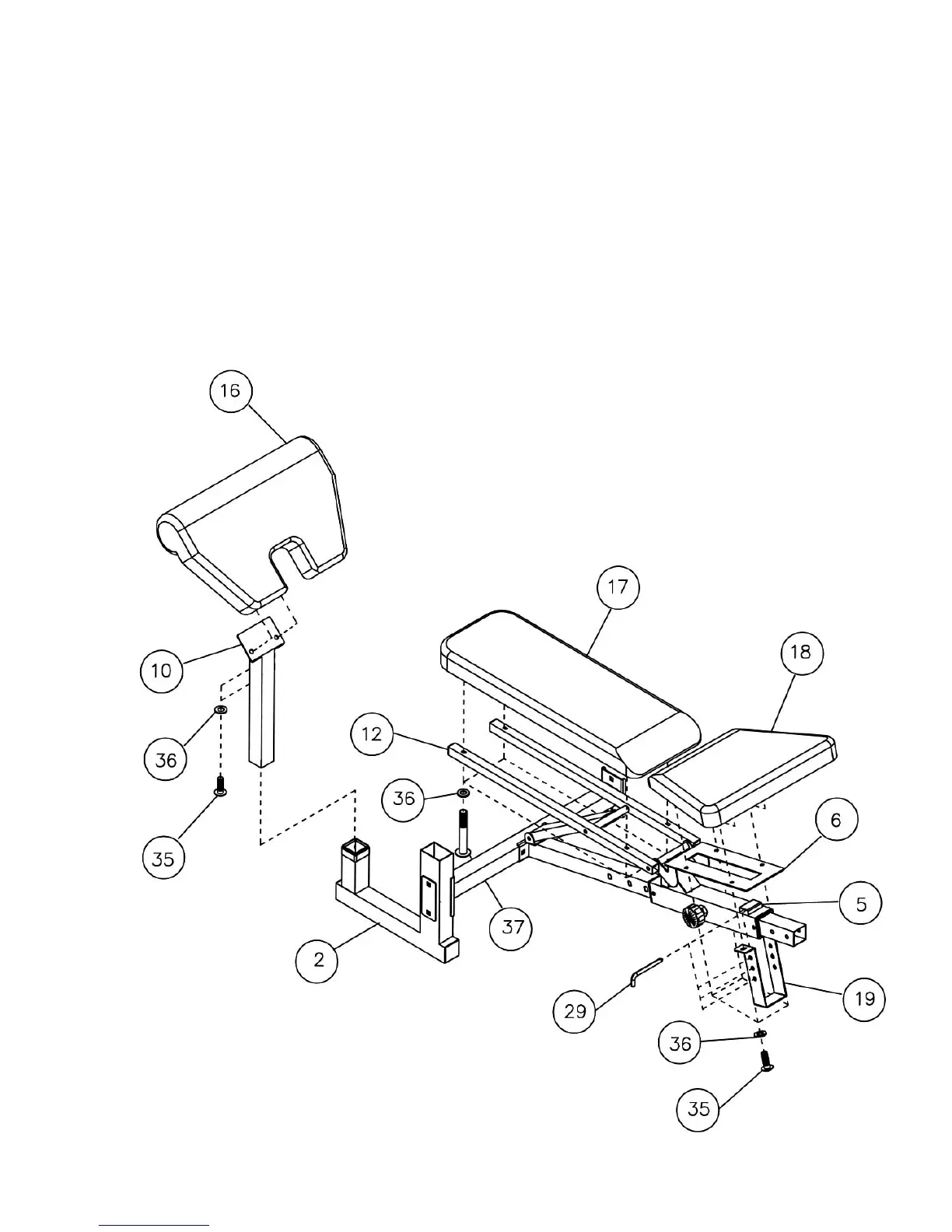

DIAGRAM 4
