STEP 6 (See Diagram 6 & Cable Loop Diagram)
A.) Attach one end of the 78” Butterfly Cable (#32) to the clip on the Right Butterfly (#21). Draw
the Cable to the right Butterfly Pulley Bracket (#15).
B.) Attach a Pulley (#38) to the right Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#77),
two Ø ¾” Washers (#86), and one M10 Aircraft Nut (#83).
C.) Draw the Cable around the Pulley then downward. Attach the Cable to a Single Floating
Pulley Bracket (#23). Repeat Procedure B above to install a Pulley. Let the Bracket hanging
for now.
D.) Draw the Cable upward to the left Butterfly Pulley Bracket. Repeat Procedure B above to
install another Pulley.
E.) Draw the Cable around the Pulley they clip it to the Left Butterfly (#20).

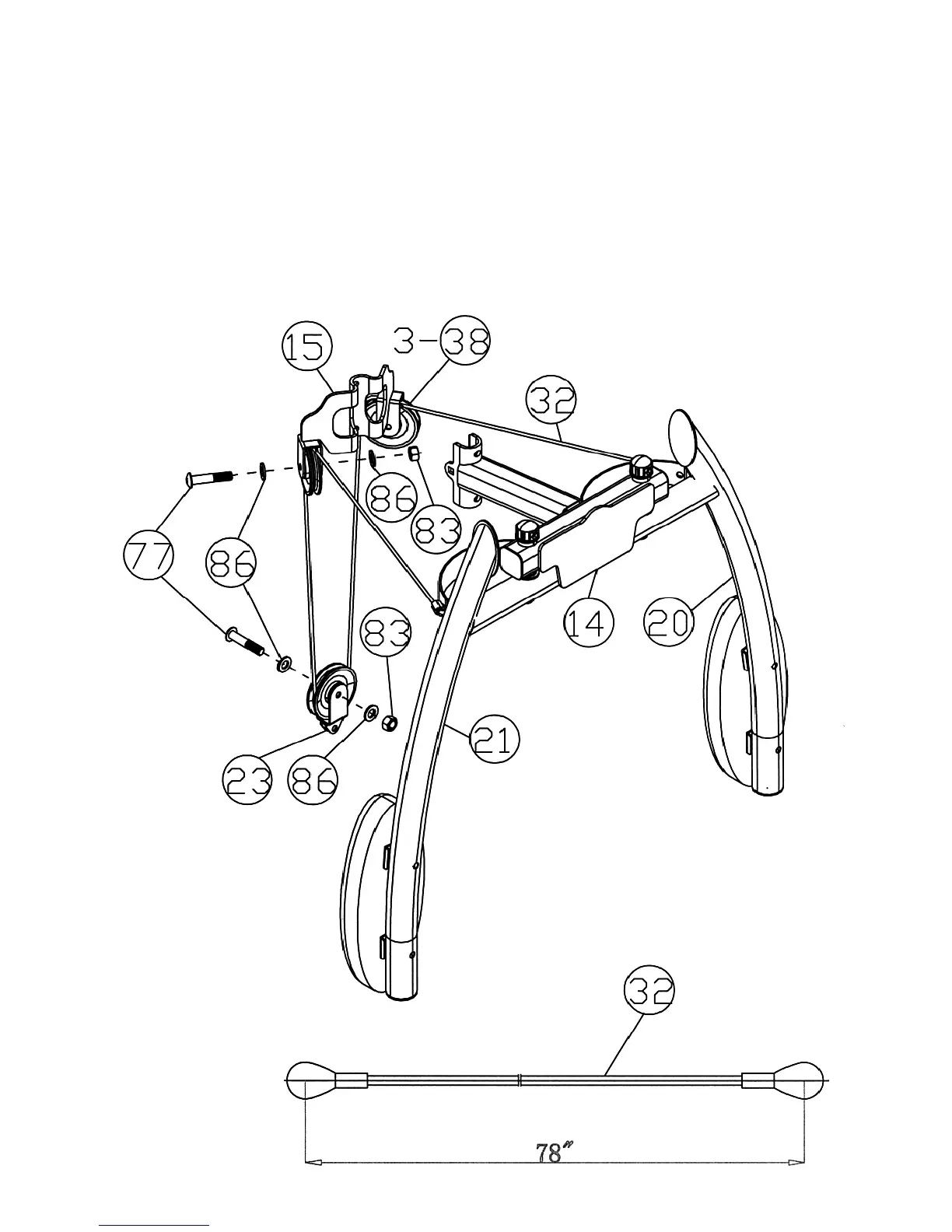

DIAGRAM 6
16
