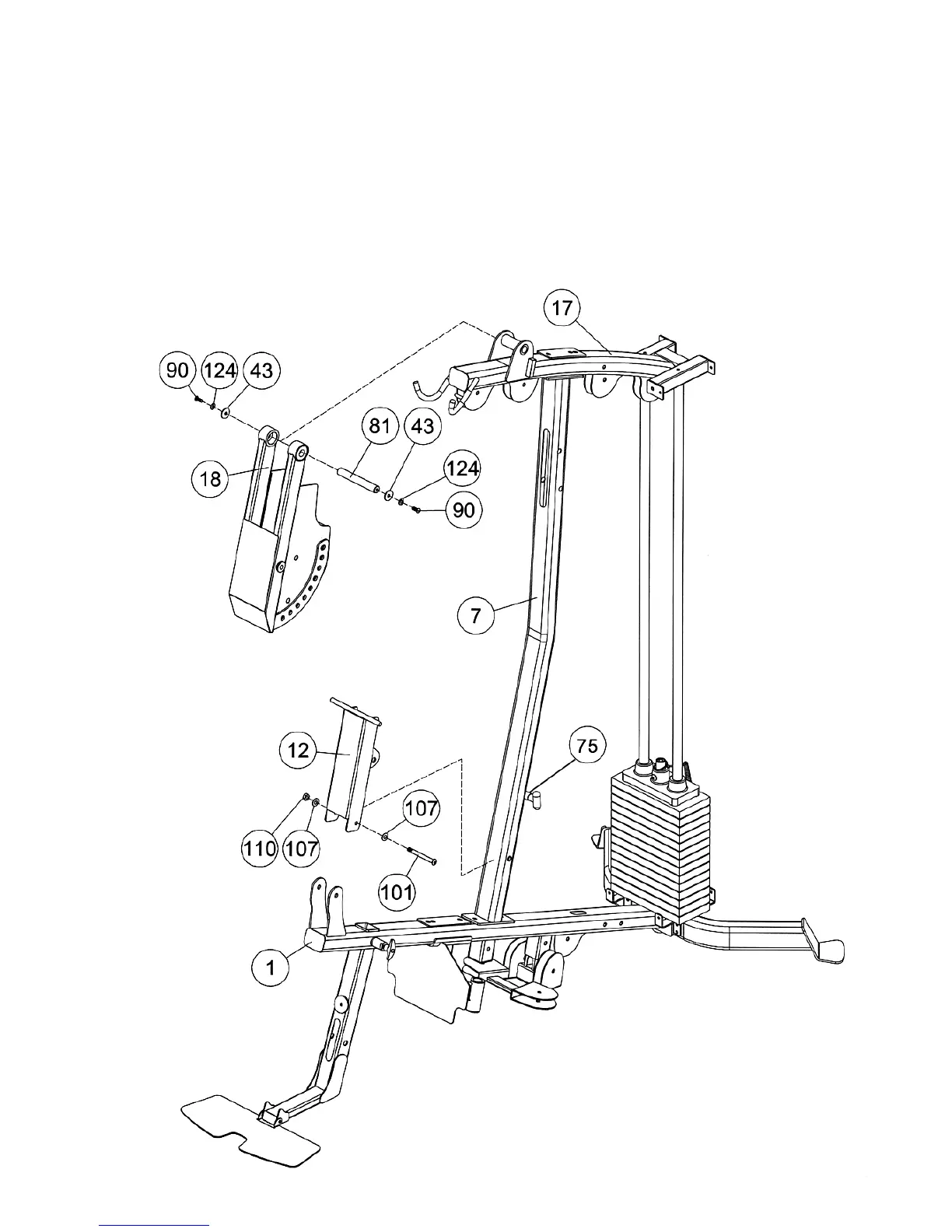

STEP 4 (See Diagram 4)
A.) Attach the Front Press Base (#18) to the Upper Frame (#17). Align the holes and insert the 5
7/8” Front Press Axle (#81) through the holes. Secure the Axle with one M8 x ¾” Allen Bolt
(#90), Ø 5/8” Lock Washer (#124), and Ø 5/8” Large Washer (#43) on each end of the Axle.
B.) Attach the Backrest Support Frame (#12) to the Vertical Frame (#7). Secure it with one M10 x 3
¾” Allen Bolt (#101), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110). Use the
Backrest Support Lock Pin (#75) on the Vertical Frame to secure the Backrest Support in
Position.
DIAGRAM 4
15
