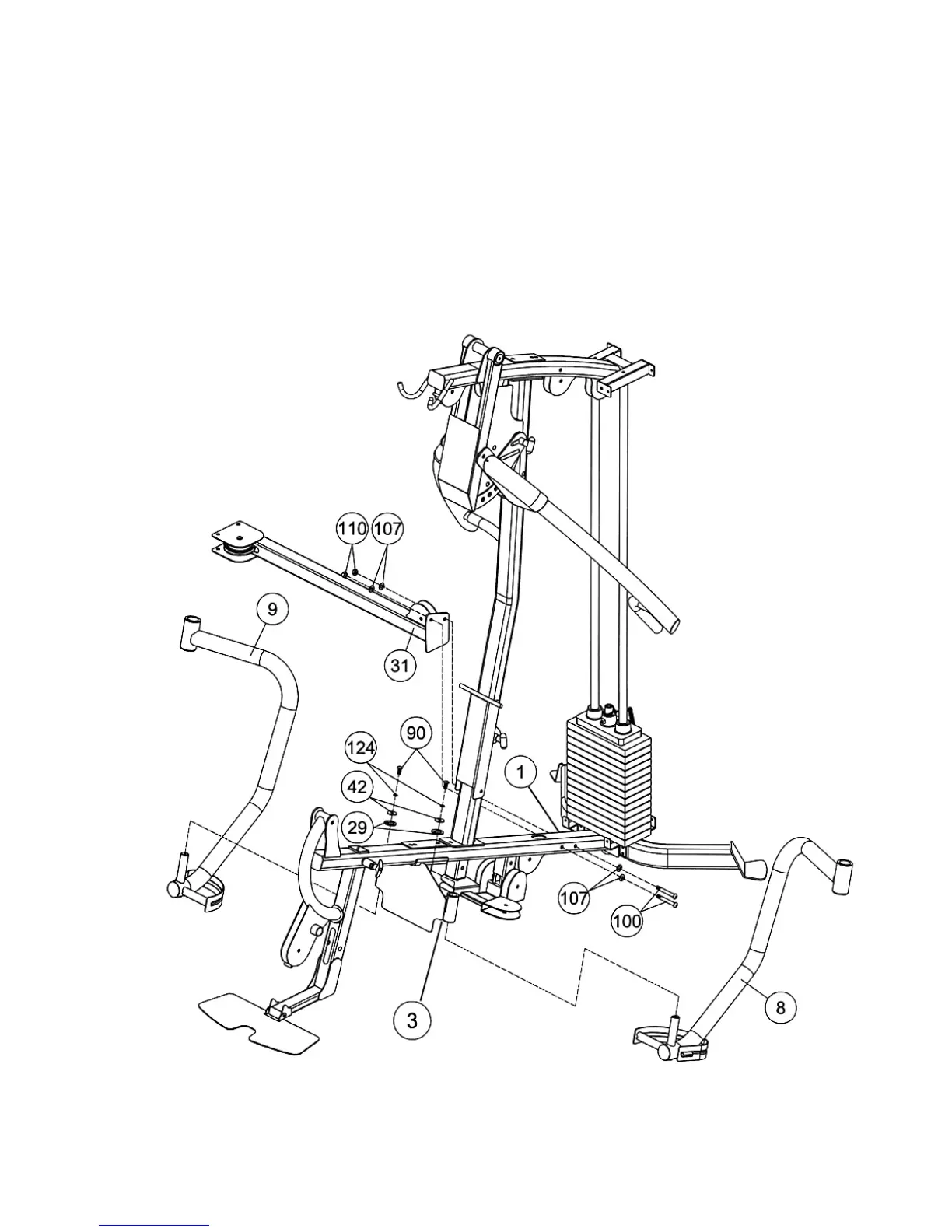

STEP 5 (See Diagram 5)
A.) Insert the axle on the Left Butterfly (#8) into the left pivot on the Butterfly Base (#3) from the
bottom. Secure it with one M8 x ¾” Allen Bolt (#90), Ø 5/8” Lock Washer (#124), Ø 1 1/8” Washer
(#42), and D-shaped Washer (#29). Repeat the procedure to install the Right Butterfly (#9).
B.) Attach the Leg Press Rear Base Frame (#31) to the Main Support Frame (#1). Secure it with two
M10 x 3 ½” Allen Bolt (#100), four Ø ¾” Washers (#107), and two M10 Aircraft Nuts (#110). Do
not tighten the Nuts and Bolts yet.
DIAGRAM 5
16
To Next Page
