STEP 6 (See Diagram 6)
A.) Attach the Front Press (#19) to the Front Press Base (#18). Align the holes. Secure it with one M12
x 7 1/8” Allen Bolt (#105), two Ø 1” Washers (#108), and one M12 Aircraft Nut (#111). Cover the
Bolt and Nut with two Cover Caps (#127). Use the Front Press Lock Pin (#76) on the Front Press to
lock the Front Press in desired position.
B.) Attach the Leg Developer (#6) to the open bracket on the Main Support Frame (#1). Secure it with
one M12 x 3 3/8” Allen Bolt (#104), two Ø 1” Washers (#108), and one M12 Aircraft Nut (#111).
Cover the Bolt and Nut with two Cover Caps (#127).

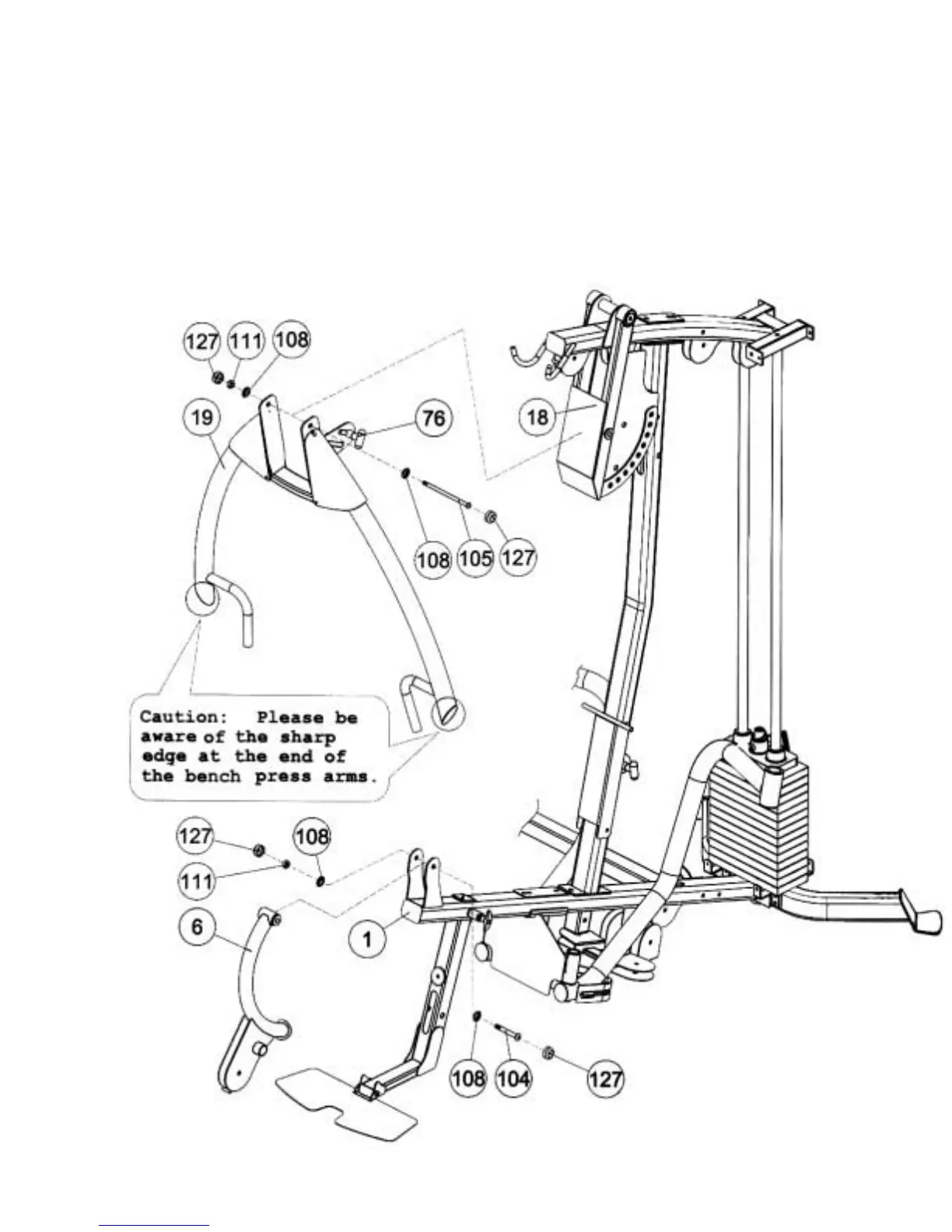

DIAGRAM 6
