Impex Olympic Cage - Page 20

STEP 8 (See Diagram 8)
A.) Insert the Left & Right Bar Catches (#12 & #13), Left & Right Safety Catches (#14 & #15)
to the selected holes on the Upright Beams.
B.) Attach two Olympic Sleeves (#52) to the Sliding Weight Post (#11).
C.) Attach four Olympic Sleeves (#52) to the Weight Posts (#20). Attach a Spring Clip (#53)
to each Olympic Sleeve.

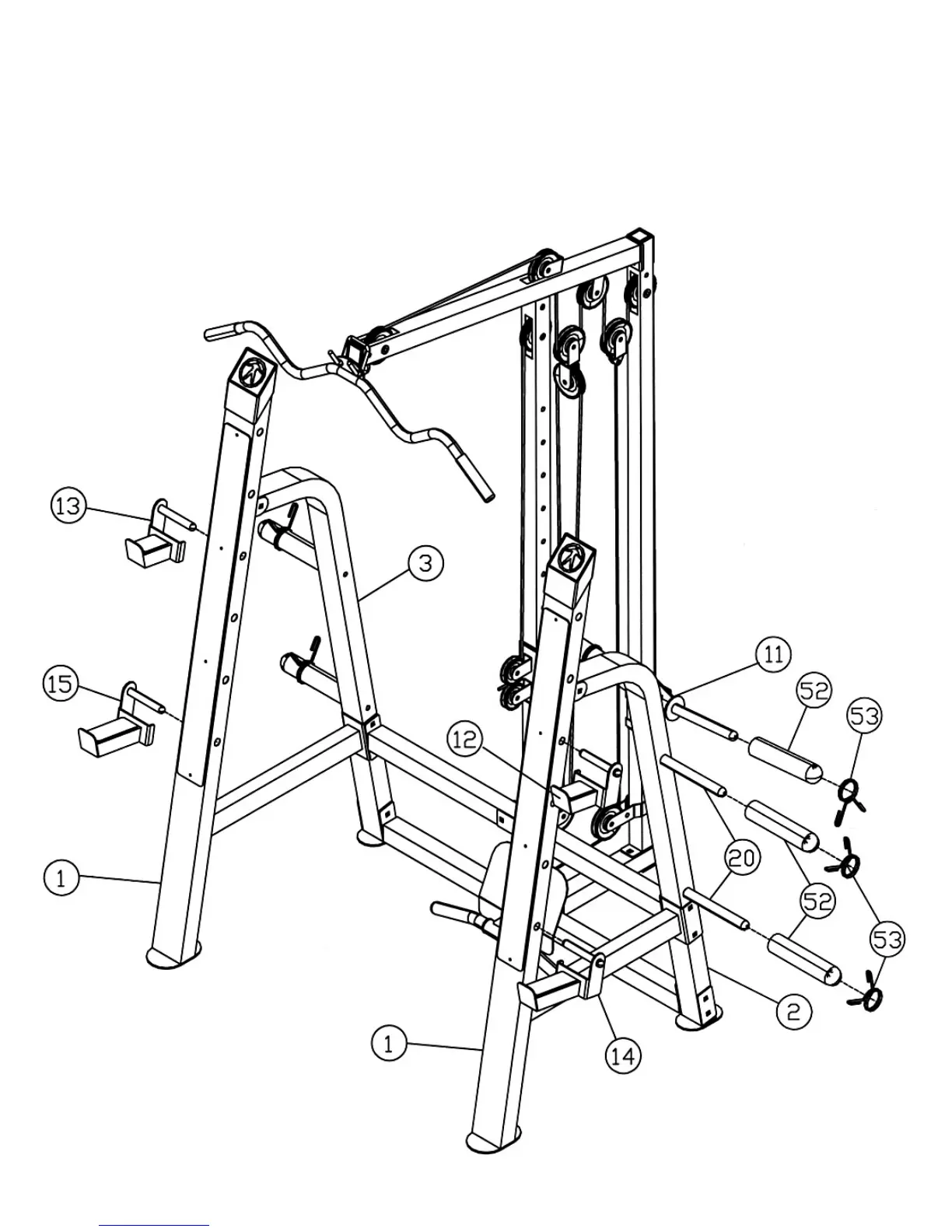

DIAGRAM 8
19
