ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended this machine be assembled by two or more people
to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Attach the Main Frame (#32) to the Rear Floor Stabilizer (#33). Secure it with two M10 x 3
½” Allen Bolts (#90), one 2 ¾” x 2” Bracket (#39), and two ∅ ¾” Washers (#80).
B.) Thread a T-shaped Lock Pin (#42) into the bracket on the Main Frame.
C.) Attach the Front Support (#34) to the Main Frame. Secure it with two M10 x 2 ¾” Carriage
Bolts (#85), one 4 3/8” x 2 ¾” Bracket (#35), two ∅ ¾” Washers (#80), and two M10
Aircraft Nuts (#82).
D.) Thread a T-shaped Lock Pin (#42) into the nut on the Front Support.

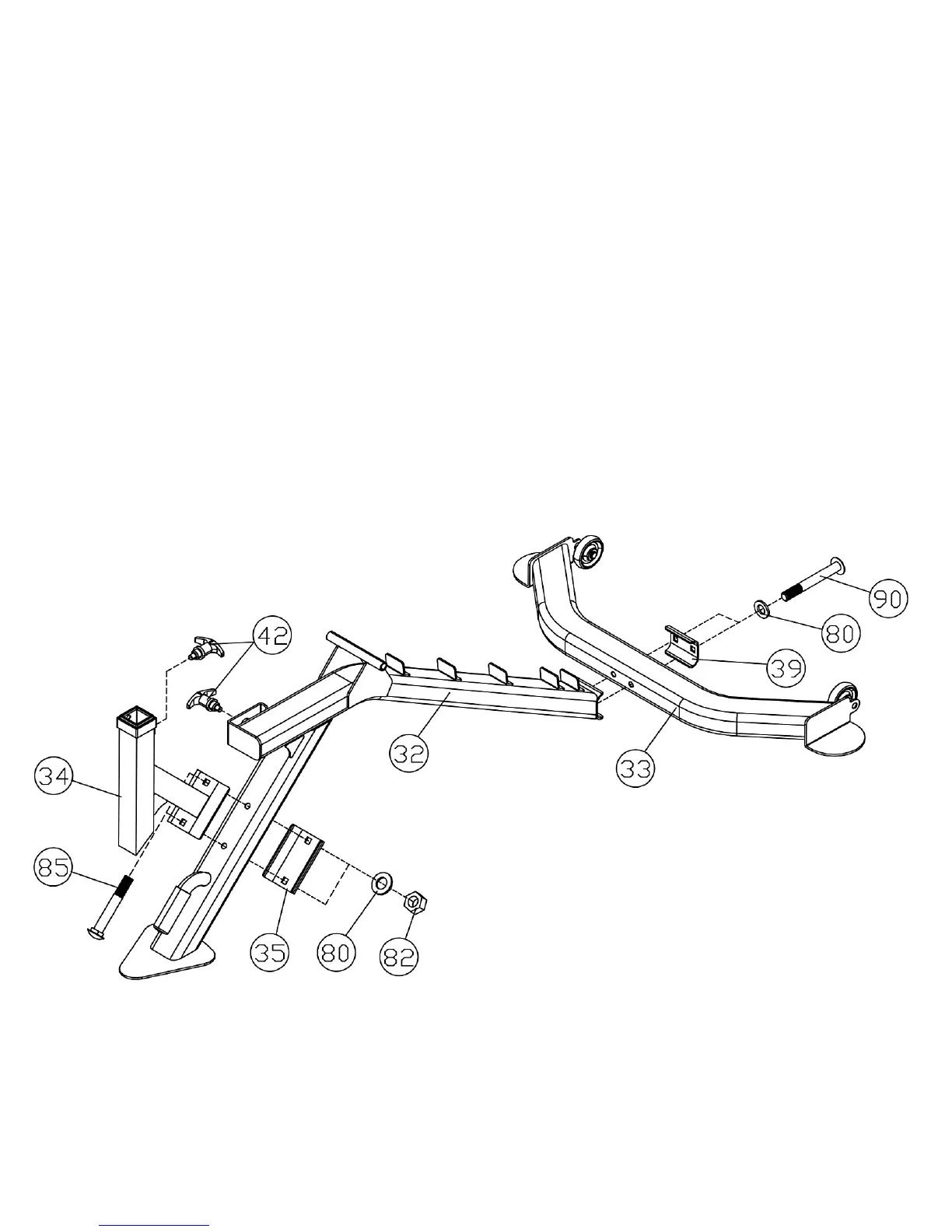

DIAGRAM 1
