STEP 4 (See Diagram 4)
A.) Attach Backrest Pad (#16) to the Upper Vertical Frame (#5). Secure it with two M8 x 2 ¾” Allen
Bolts (#32) and ∅ 5/8” Washers (#34).
B.) Insert the Chin-up Bar (#10) into the top opening on the Upper Vertical Frame (#5). Secure it
with one M10 x 3 ¼” Allen Bolt (#29), two ∅ ¾” Washers (#35), and one M10 Aircraft Nut (#36).
C.) Slide two Chin-up Handle Grips (#20) onto both ends of the Bar (#10).
E.) Insert the 2 ½” End Cap (#37) to the opening on the Chin-up Bar (#10).

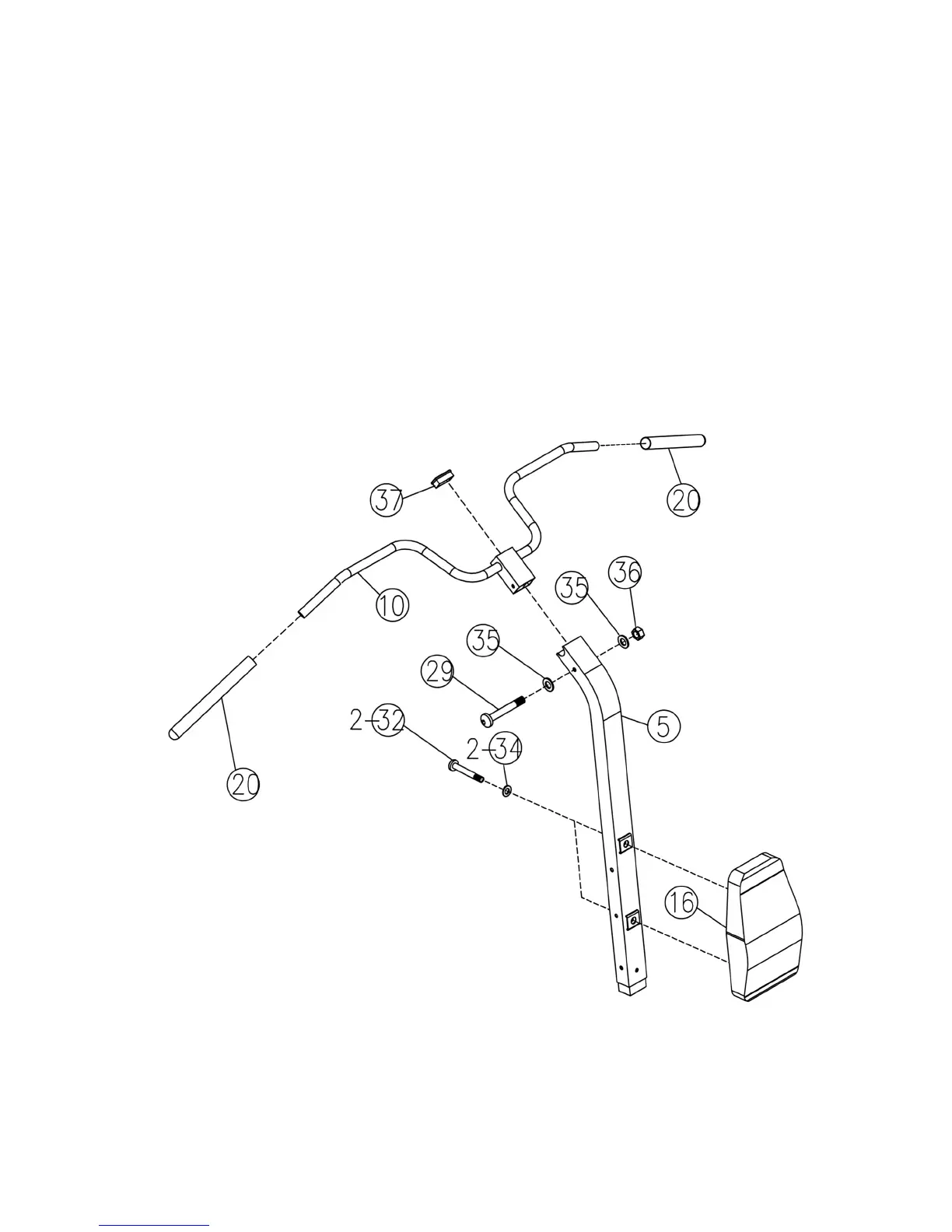

DIAGRAM 4
