ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

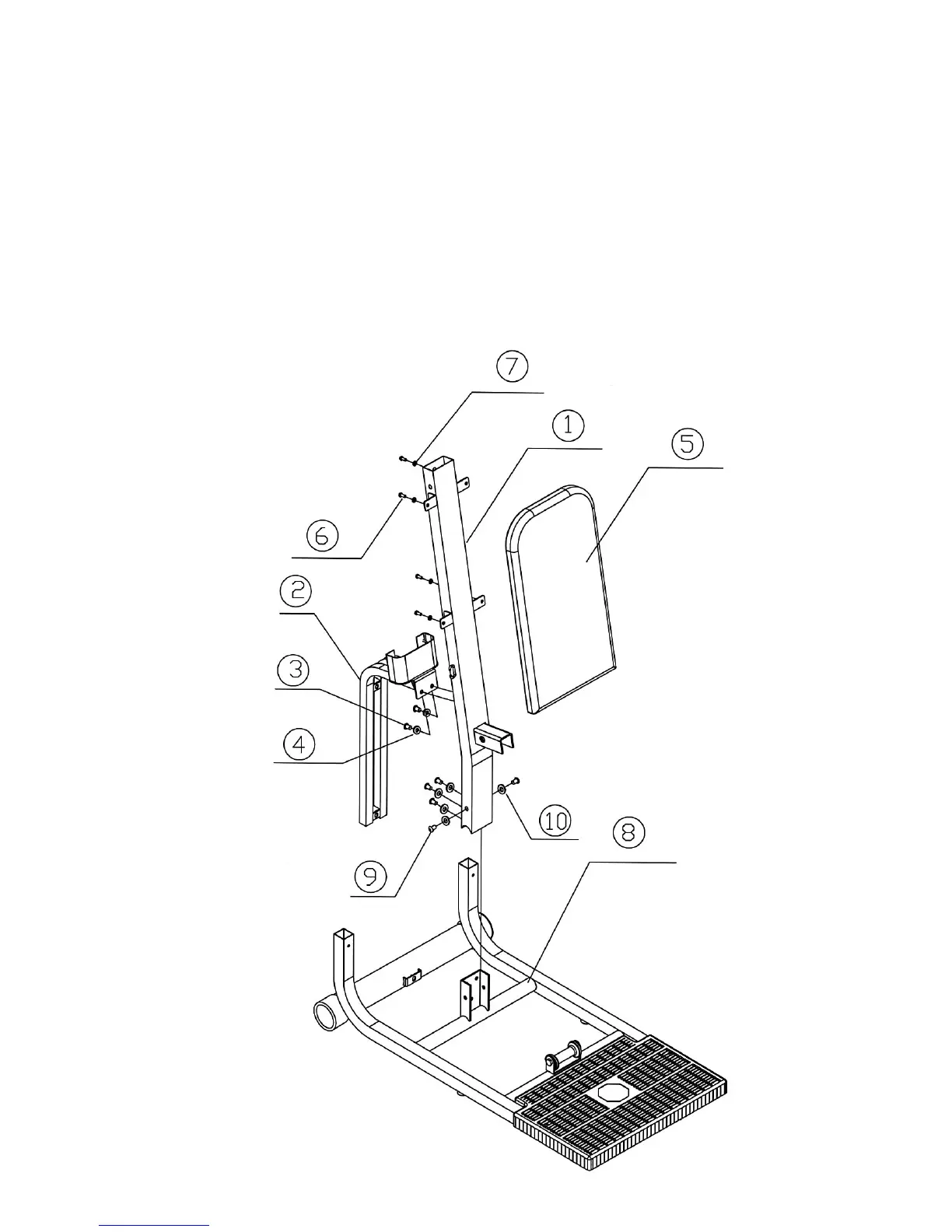

STEP 1 (See Diagram 1)
A.) Place the Base Platform (#8) on flat surface. Attach the Vertical Frame (#1) to the open
bracket on the Base Platform. Secure it with five M10 x 5/8” Allen Bolts (#9) and ؾ”
Washers (#10). DO NOT tighten the Bolts yet.
B.) Attach the upper Rear Support Frame (#2) to the Vertical Frame (#1). Secure it with two
M8 x 5/8” Allen Bolts (#3) and Ø5/8” Washers (#4). DO NOT tighten the Bolts yet.
C.) Attach the Back Pad (#5) to the Vertical Frame. Secure it with four M6 x ¾” Hex Bolts (#6)
and Ø ½” Washers (#7).
