Impex TR-2 - Step 4: Tech Rod Set Installation

STEP 4 (See Diagram 4)
A.) Attach the Tech Rod Set (#24) to the Rear Support Frame (#2). Secure it with four Ø
1/4” x ¾” Philips Screws (#25).
B.) Slide the Tech Rod Organizer (#23) onto the top of the Rods to hold each Rod in
position.

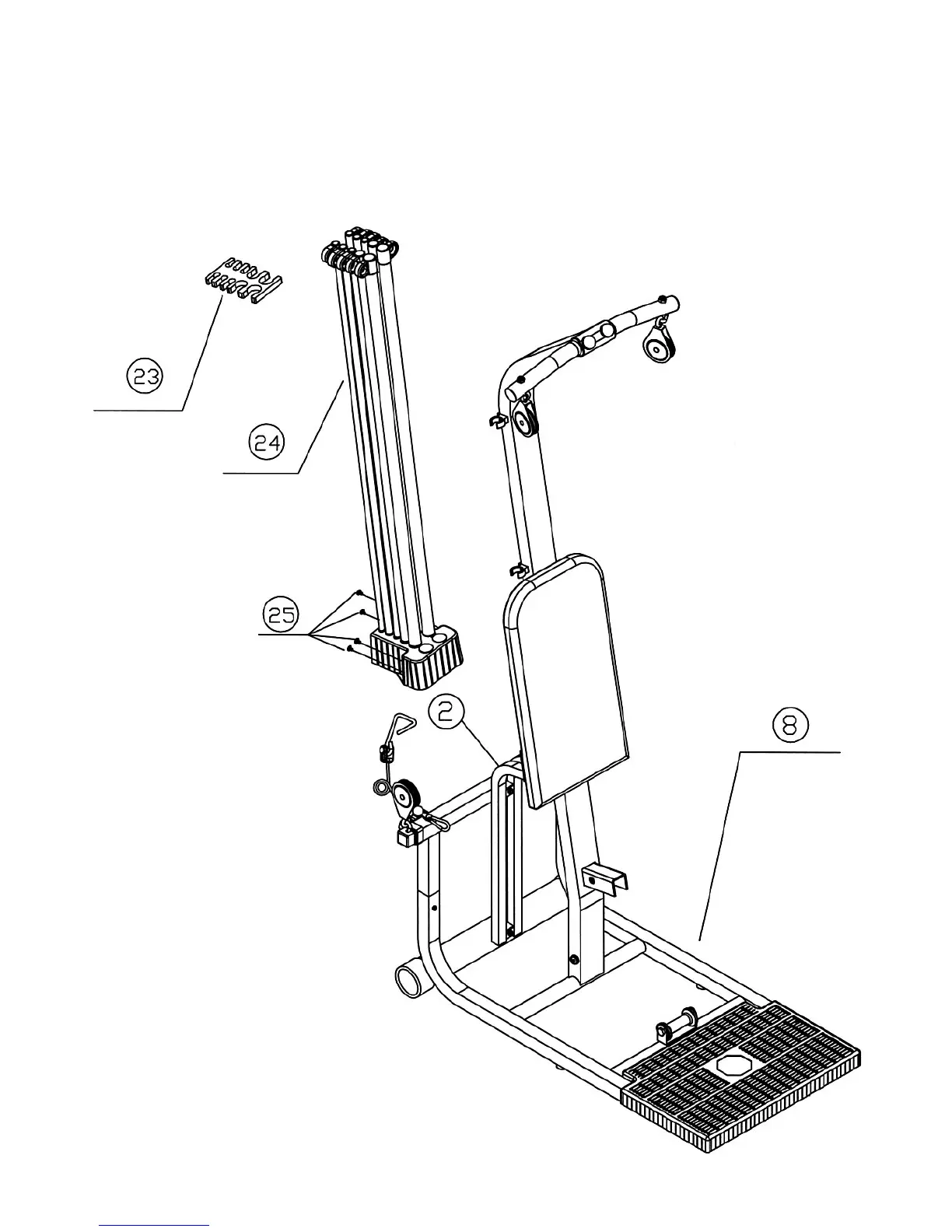

DIAGRAM 4
7
