Connecting Multi Discipline Readers

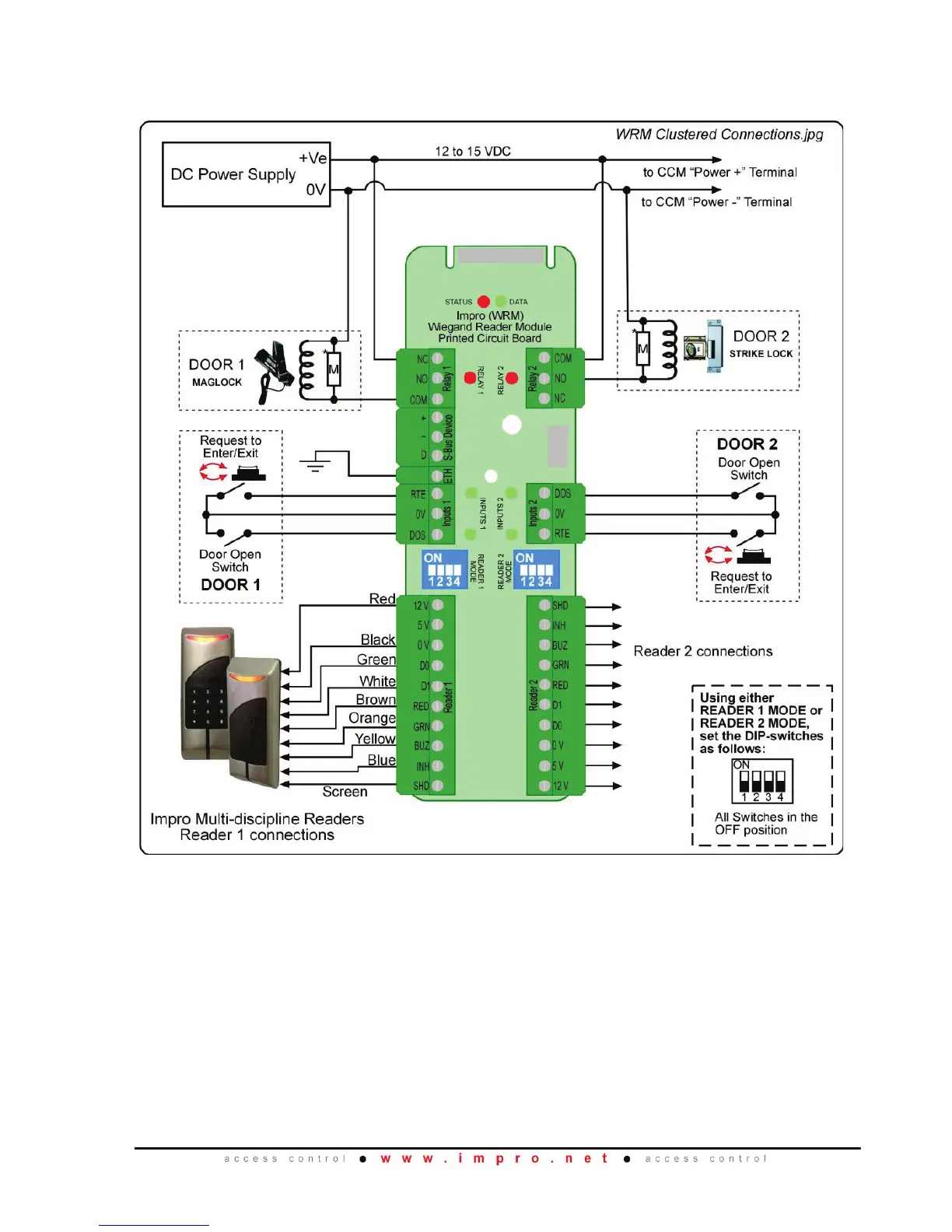

Figure 4 shows a typical electrical connection diagram for the “clustered” Impro WRM.
Figure 4: Typical Clustered Impro WRM Electrical Connections
NOTE: * Refer to Figure 2 for Arc Suppression details.
NOTE: The ideal cable distance between the Impro WRM and its Multi-discipline
Reader MUST NOT exceed 150 m (164 yd).
NOTE: This diagram shows typical connections to the Impro WRM 190.
Connections remain the same for all models of the Impro WRM.
NOTE: Connection details remain the same for all Multi-discipline Reader models.
HMW300-0-0-GB-00 October 2013 Page 12
