MDR300-0-0-GB-08
July 2015
Page 6
ELECTRICAL CONNECTIONS
Connecting the Multi-discipline Reader
Figure 2 to Figure 7 show typical connections for the Multi-discipline Reader.

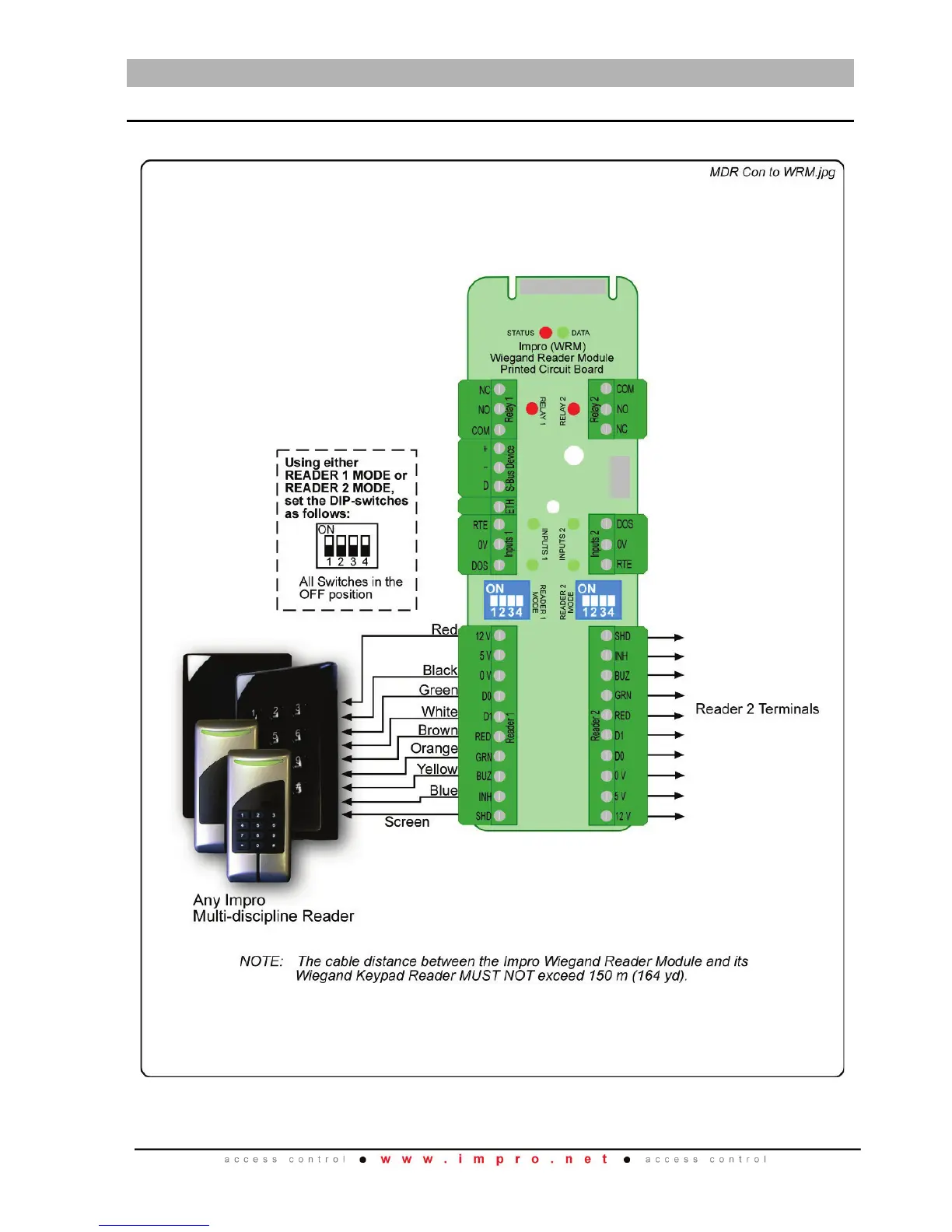

Figure 1: Multi-Discipline Reader connected to the Wiegand Reader Module
