17
5. Attach the location-specific Plug Adapter to the AC
Adapter and then plug the AC Adapter into the wall outlet
to begin charging the internal battery of your Vesta
Charger.
When the Charging Self-Charge Success screen is
displayed on your Vesta Charger (see Figure 10), the
battery in your Vesta Charger is fully charged, as
indicated by the checkmark above the charge level
indicator in the center of the screen.

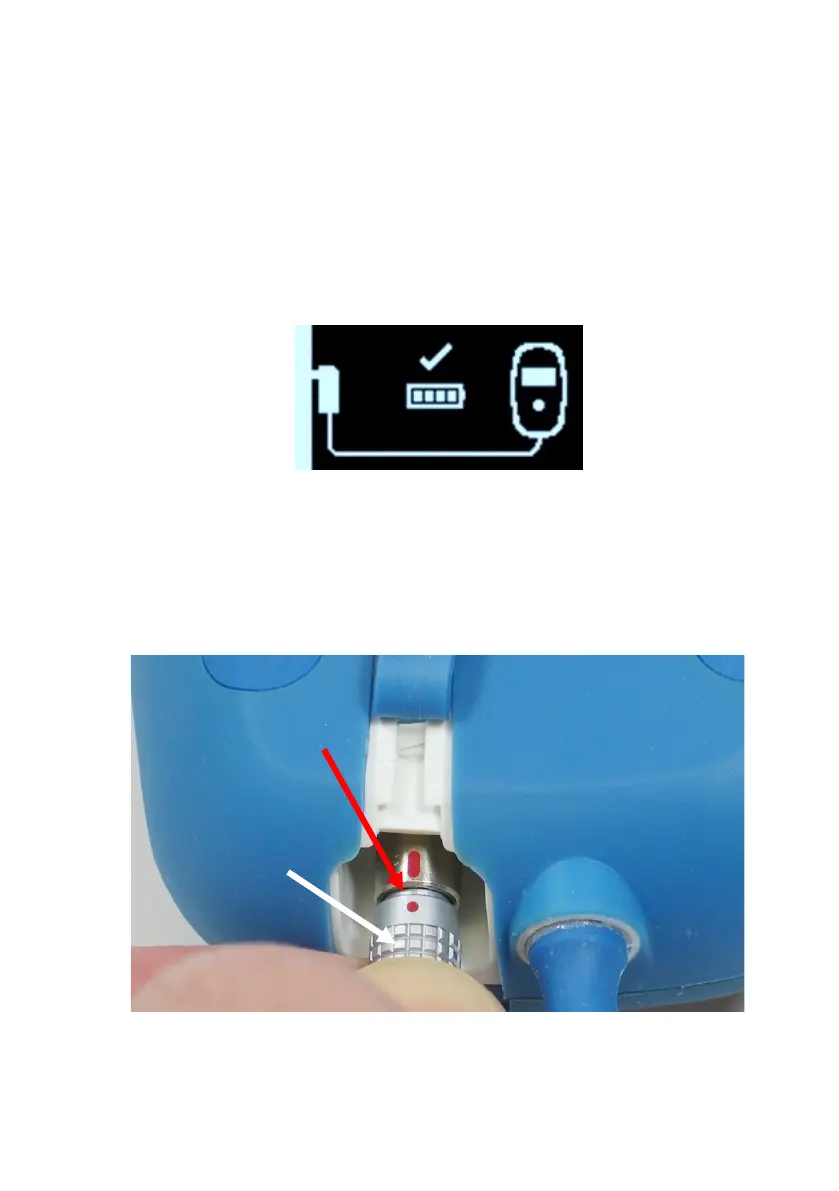

Figure 10: Charger Self-Charge Success Screen
To disconnect the AC Adapter from your Vesta Charger, perform
the following steps:
1. Hold and pull back on the metal sleeve of the DC output
connector to disconnect the connector from your Vesta
Charger. See Figure 11.
Figure 11: Close-up of the Connector Sleeve
Connector Sleeve
Connector
