─ 18 ─
STEP 4

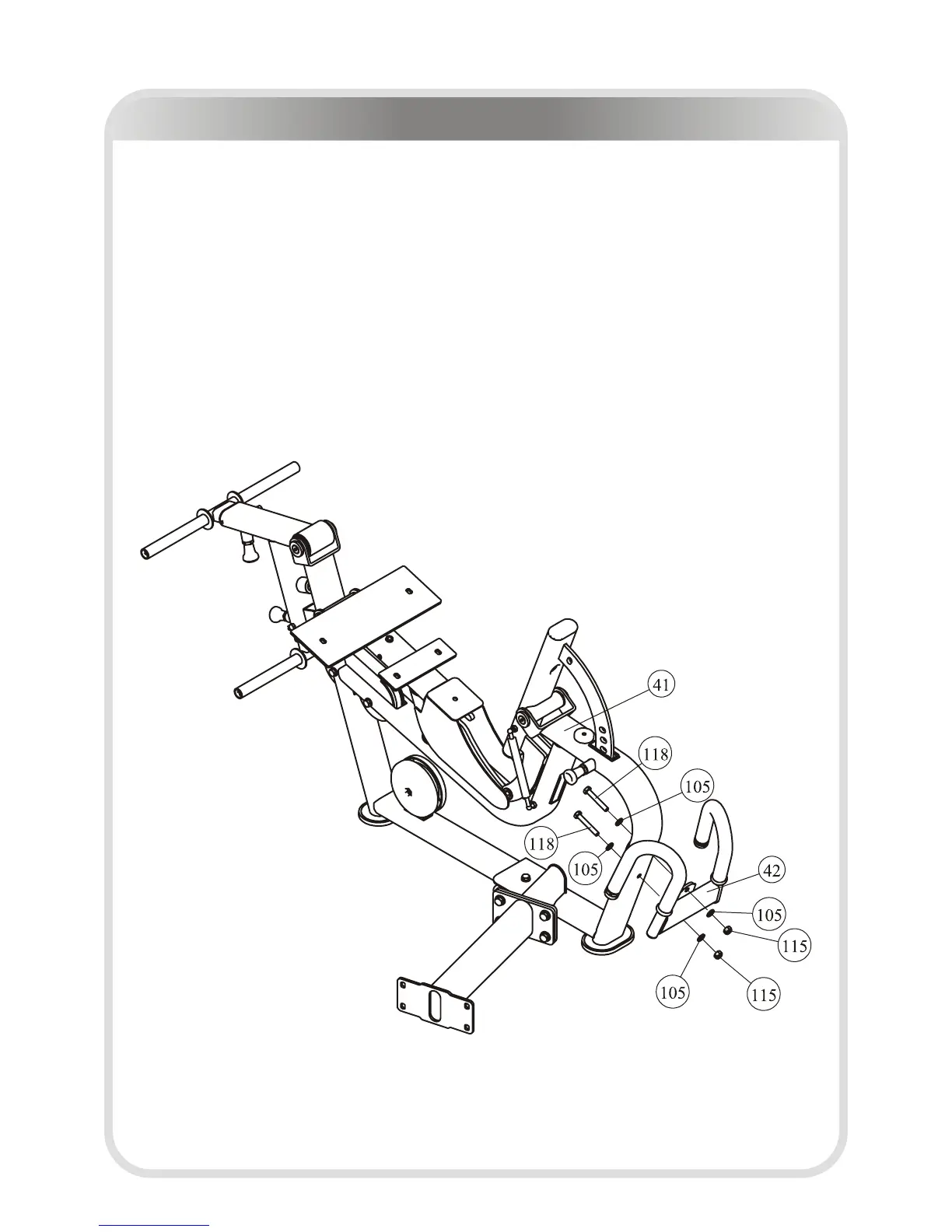

Attach the Front Handle Frame ASSY (#42) to Main Frame And Back Pad Frame
ASSY (#41), using:
● two M10*65 Hex Head Bolt (#118)
● two M10 Nylon Lock Nut (#115)
● four Φ11*Φ20*2 Flat Washer (#105)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
Leg Extension / Leg Curl Assembly
