STEP 5

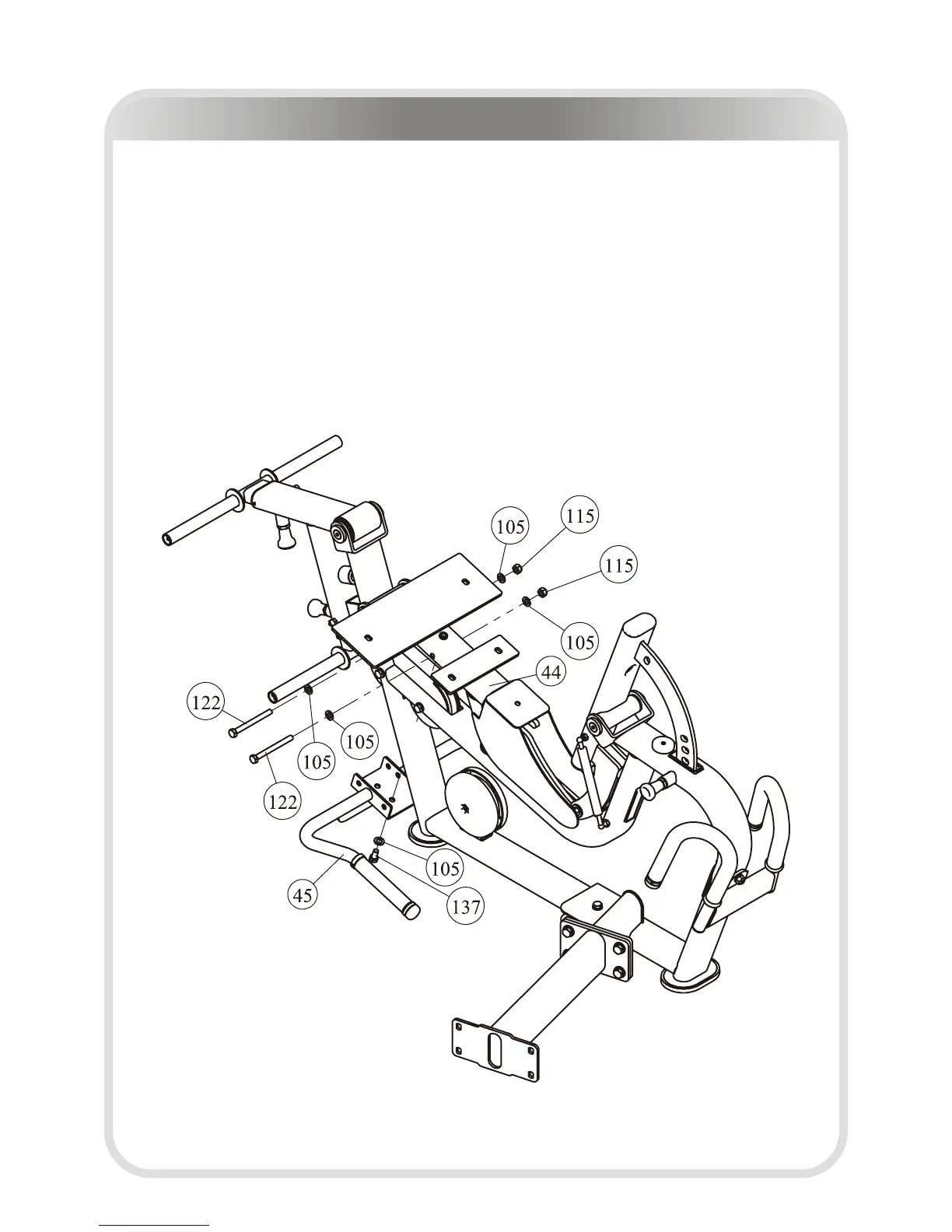

Attach the Rear Handle Frame ASSY (#45) to Seat Pad Frame ASSY (#44), using:
● two M10*105 Hex Head Bolt (#122)
● two M10 Nylon Lock Nut (#115)
● five Φ11*Φ20*2 Flat Washer (#105)
● one M10*30 Hex Head Bolt (#137)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
