Multi Press Assembly
─ 41 ─

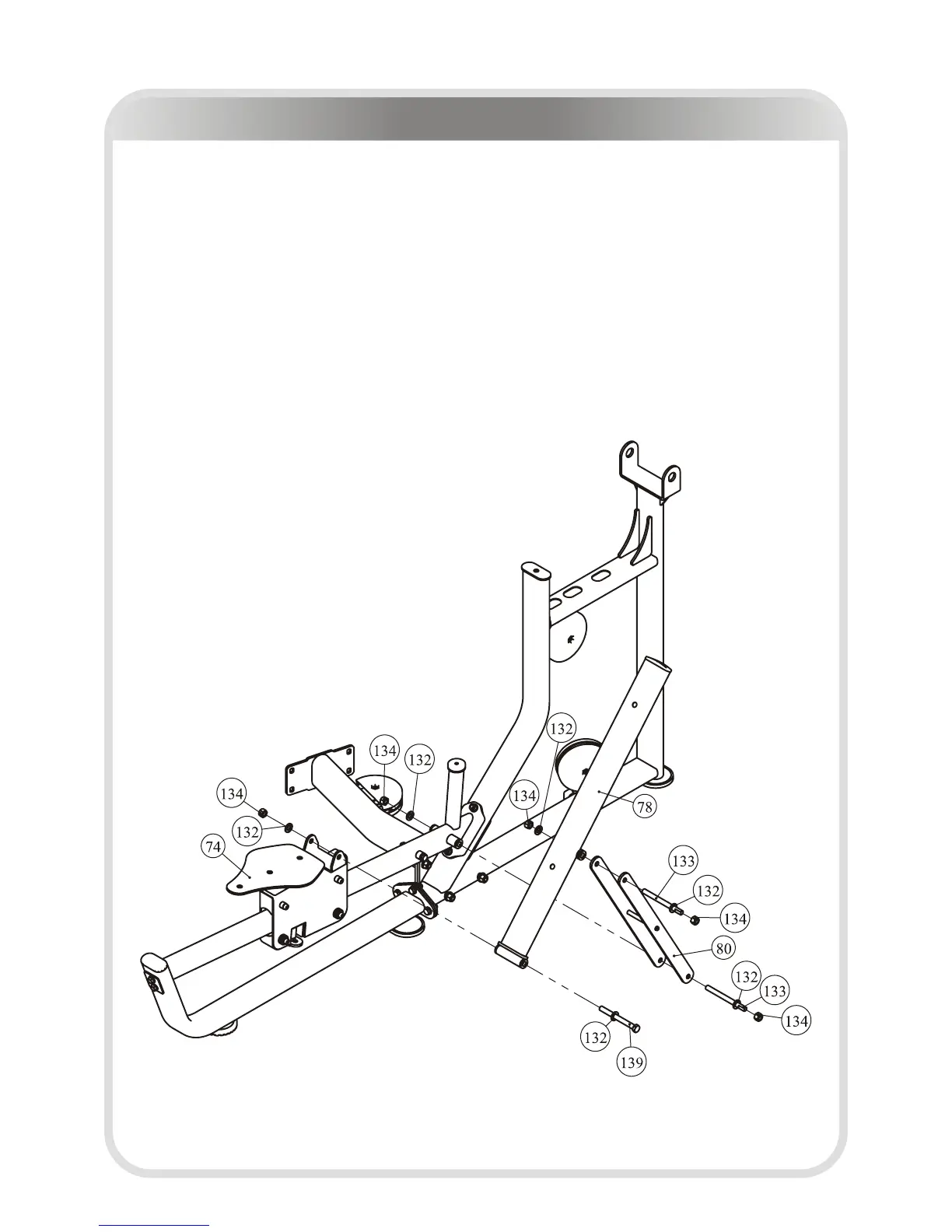

Attach the Frame Back ASSY (#78) and the Back Pad Support (#80) to the Guide
Frame II ASSY (#74) using:
● two M12*140 Anchor Shaft ( #133)
● six Φ13*Φ24*1.5 Flat Washer (#132)
● one M12*125 Hex Head Bolt (#139)
● five M12 Nylon Lock Nut (#134)
Note: Wrench Tighten bolts and Nylon Lock Nuts.
STEP 4
To Next Page
