Multi Press Assembly
─ 42 ─

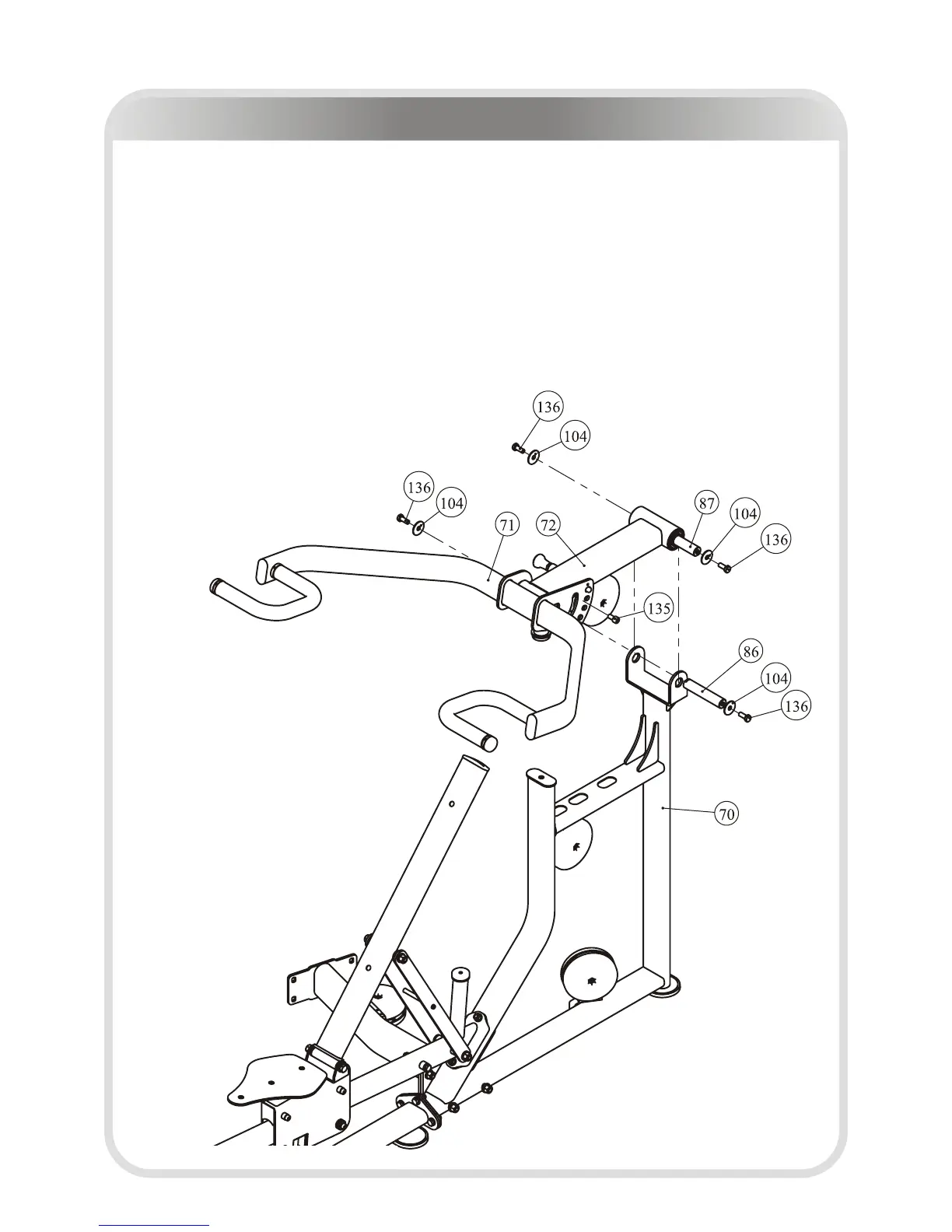

Attach the Frame Back ASSY (#71) and the Load Arm II ASSY (#72) to the Main
Frame II ASSY (#70) using:
● four M10*25 Hex Head Bolt (#136)
● four Φ11*Φ38*2 Washer (#104)
● one Φ25.4*130 Axle (#86)
● one Φ25.4*158 Axle (#87)
● one M10*20 Socket Head Cap Screw (#135)
Note: Wrench Tighten bolts and Nylon Lock Nuts.
