Multi Press Assembly

─ 43 ─

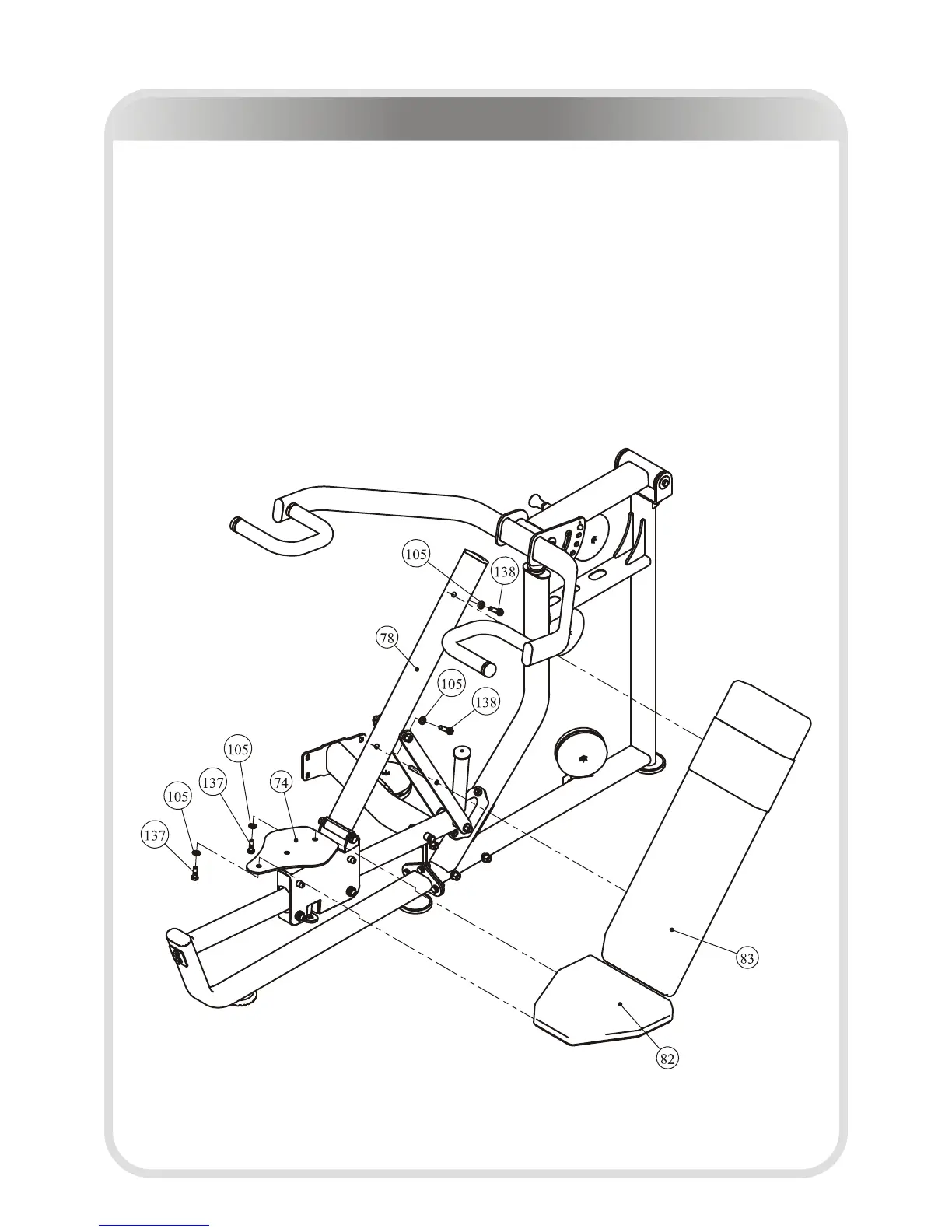

1. Attach the Back Pad 3 (#83) to the Frame Back ASSY (#78) using:

● two M10*45 Hex Head Bolt (#138)

● two Φ11*Φ20*2 Flat Washer (#105)

2. Attach the Seat Pad 3 (#82) to the Guide Frame II ASSY (#74) using:

● two M10*30 Hex Head Bolt (#137)

● two Φ11*Φ20*2 Flat Washer (#105)

Note: Wrench Tighten bolts and Nylon Lock Nuts.
