Multi Press Assembly
─ 44 ─

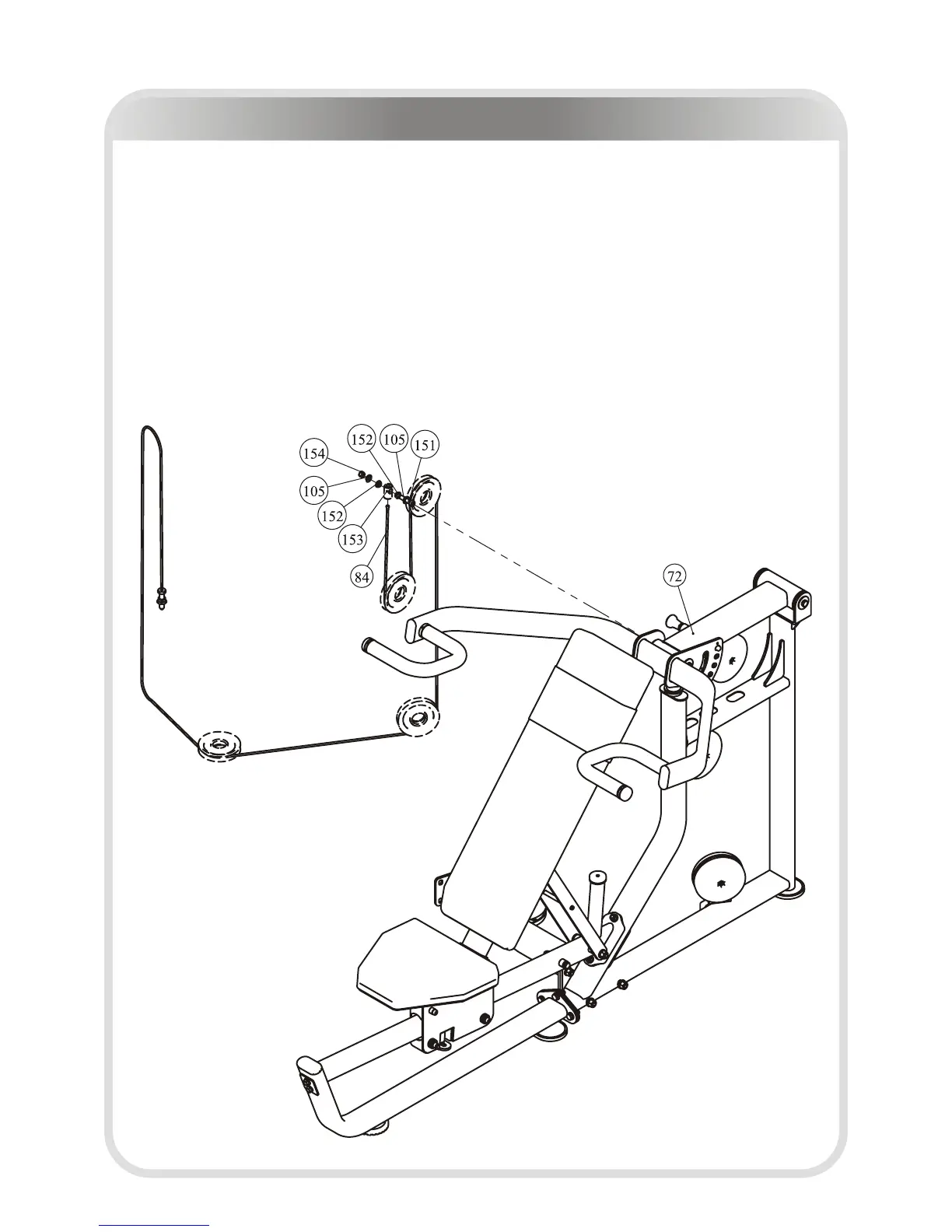

Attach the Cable (#84) to the Load Arm II ASSY (#72), and go through four 4.5"
Pulley. Using:
● one Φ10*40*M8 Shoulder Bolt (#151)
● two Φ10.2*Φ14*6 Spacer (#152)
● one Φ22*37 Cable End (#153)
● one M8 Nylon Lock Nut (#154)
● two Φ11*Φ20*2 Flat Washer (#105)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
