Lat Pulldown / Vertical Row Assembly
─ 68 ─

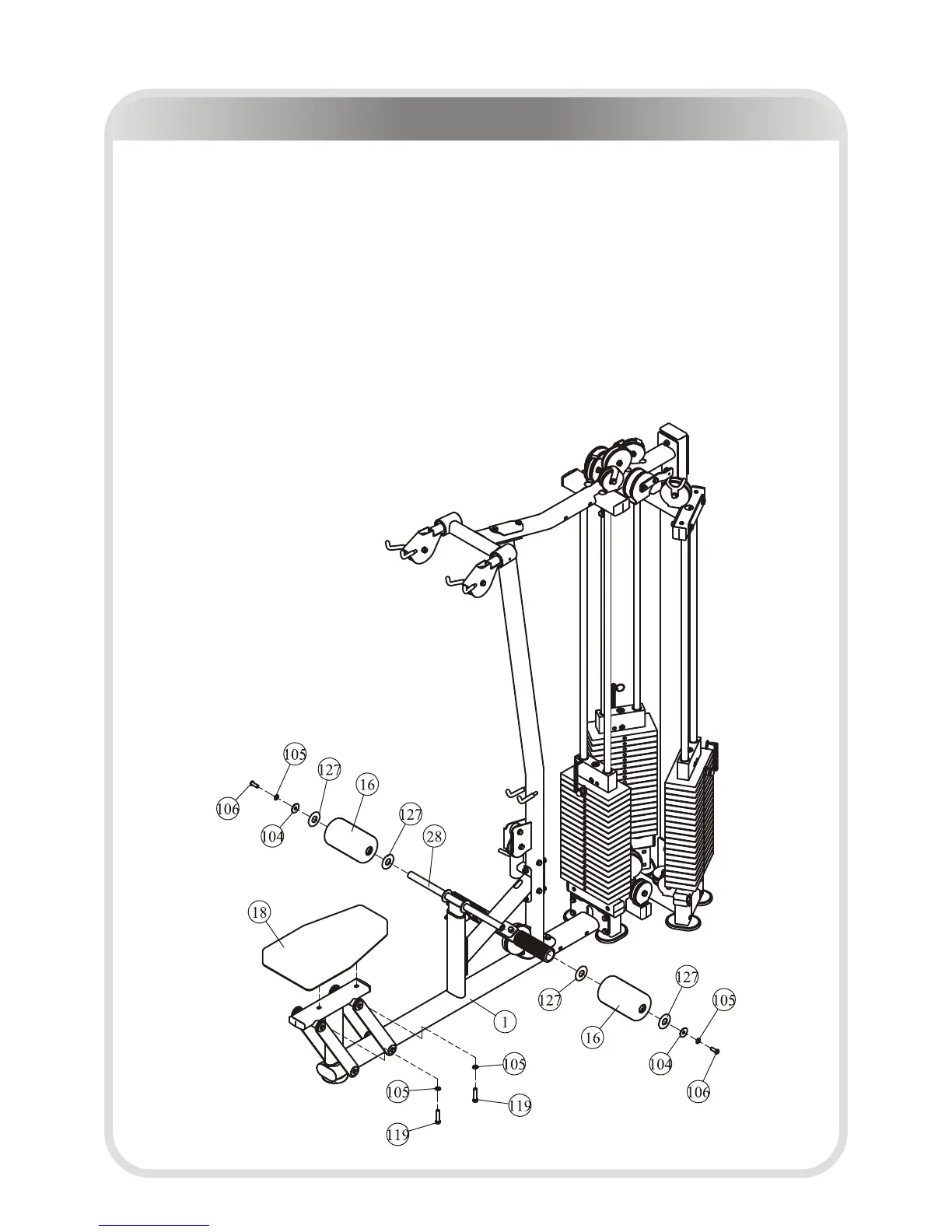

1. Attach the two Foam (#16) to the FOAM Frame ASSY (#28) using:
● four Φ60*Φ25.7*3 Plastic Washer (#127)
● two Φ11*Φ38*2 Washer (#104)
● two M10*30 Button Head Cap Screw (#106)
● two Φ11*Φ20*2 Flat Washer (#105)
2. Attach the Seat Pad 1(#18) to the Bottom Frame II ASSY (#1) using:
● two M10*50 Hex Head Bolt (#119)
● two Φ11*Φ20*2 Flat Washer (#105)
Note: Wrench Tighten bolts and Nylon Lock Nuts.
STEP 6
To Next Page
