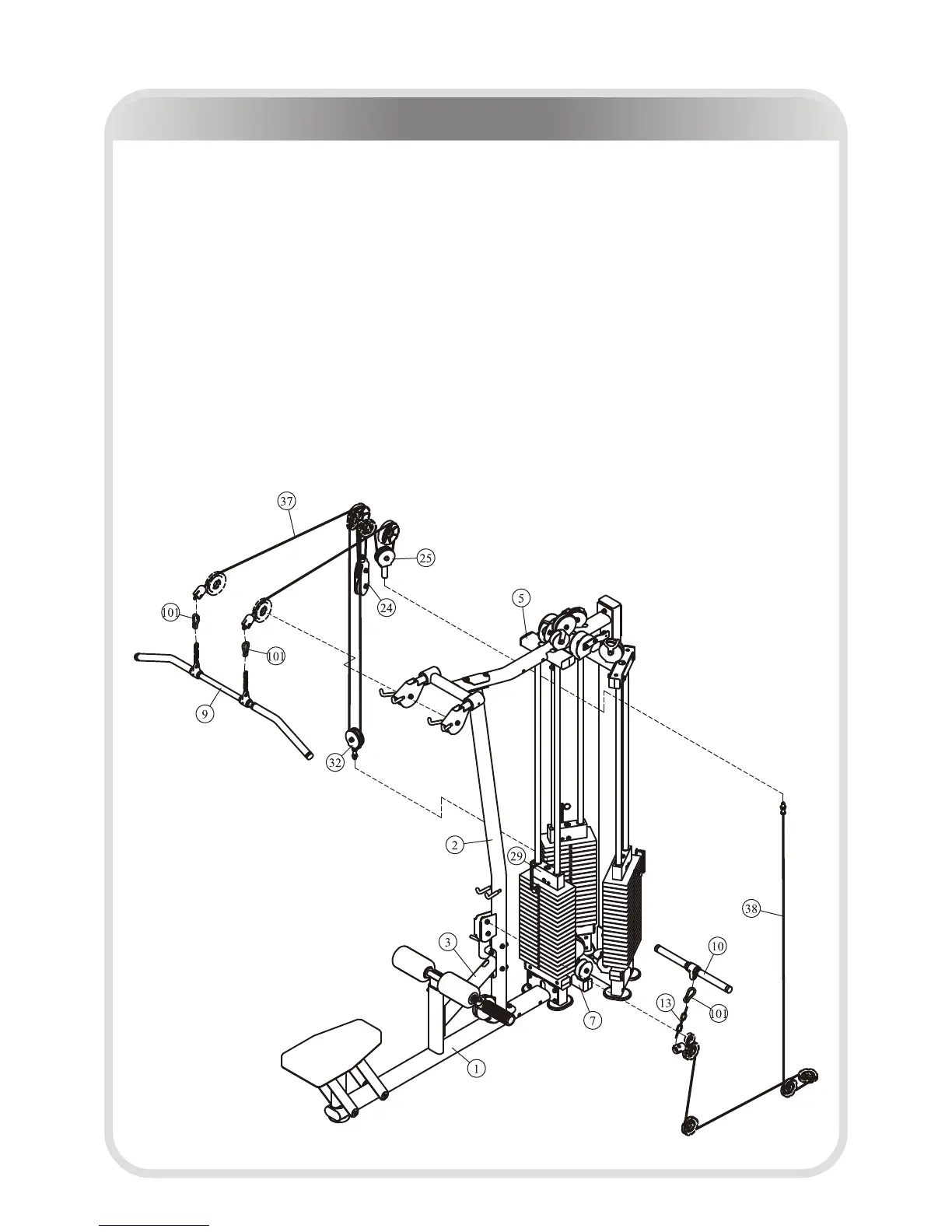

Lat Pulldown / Vertical Row Assembly
─ 69 ─
1. Attach the Cable 1 (#37) to the Top Frame II ASSY (#5) & the Top Plate (#29) using:
● one Double Pulley ASSY (#24)
● one Pulley Bracket ASSY (#25)
● one Pulley Bracket W/Shaft ASSY (#32)
2. Attach Long Lat Bar (#9) to the Cable 1 (#37) using:
● two Gear Hook (#101)
3. Attach the Cable 2 (#38) to Pulley Bracket ASSY (#25) & the Middle Frame II ASSY
(#7) & the Vertical Frame II ASSY (#2).
4. Attach Row Handle (#10) to the Cable 2 (#38) using:
● one Gear Hook (#101)
● one Chain (#13)
Note: Wrench Tighten bolts and Nylon Lock Nuts.
STEP 7
To Next Page
