Assembly
STEP 2

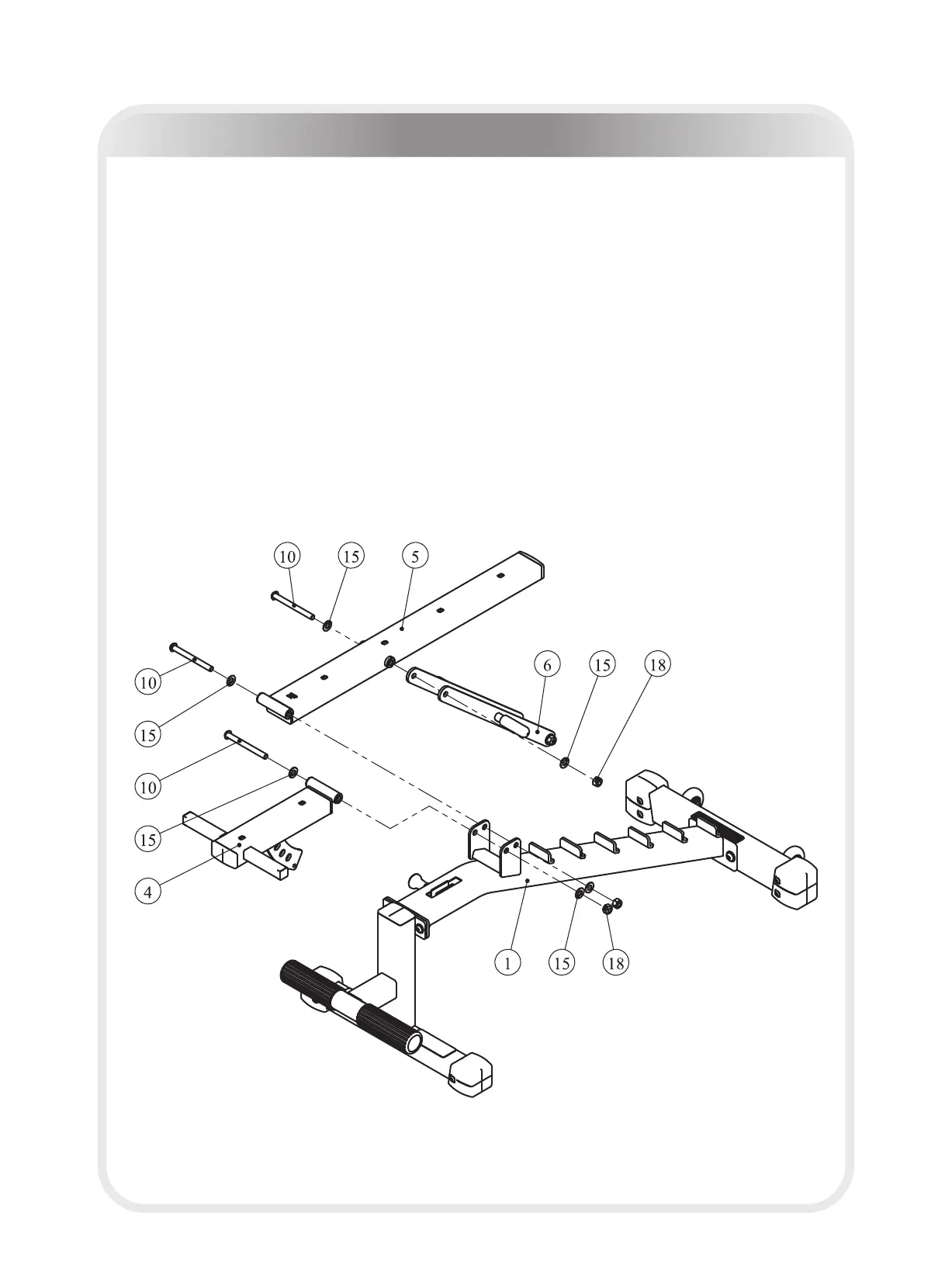

Attach the Seat Pad Support ASSY (#4) to the Main Frame ASSY (#1), Attach the
Adjustable Back Pad Support ASSY (#6) to the Back Pad Support ASSY (#5), Attach
the Back Pad Support ASSY (#5) to the Main Frame ASSY (#1), using:
three Button Head Cap Screw M12*125 (#10)
six Flat Washer Φ13*Φ26*2 (#15)
three Nylon Lock Nut M12 (#18)
Note: Wrench tighten bolts and nylon lock nuts.
