Impulse IF9325 - Double Pulley Frame ASSY; Double Pulley Frame Sub ASSY

To Next Page

To Previous Page

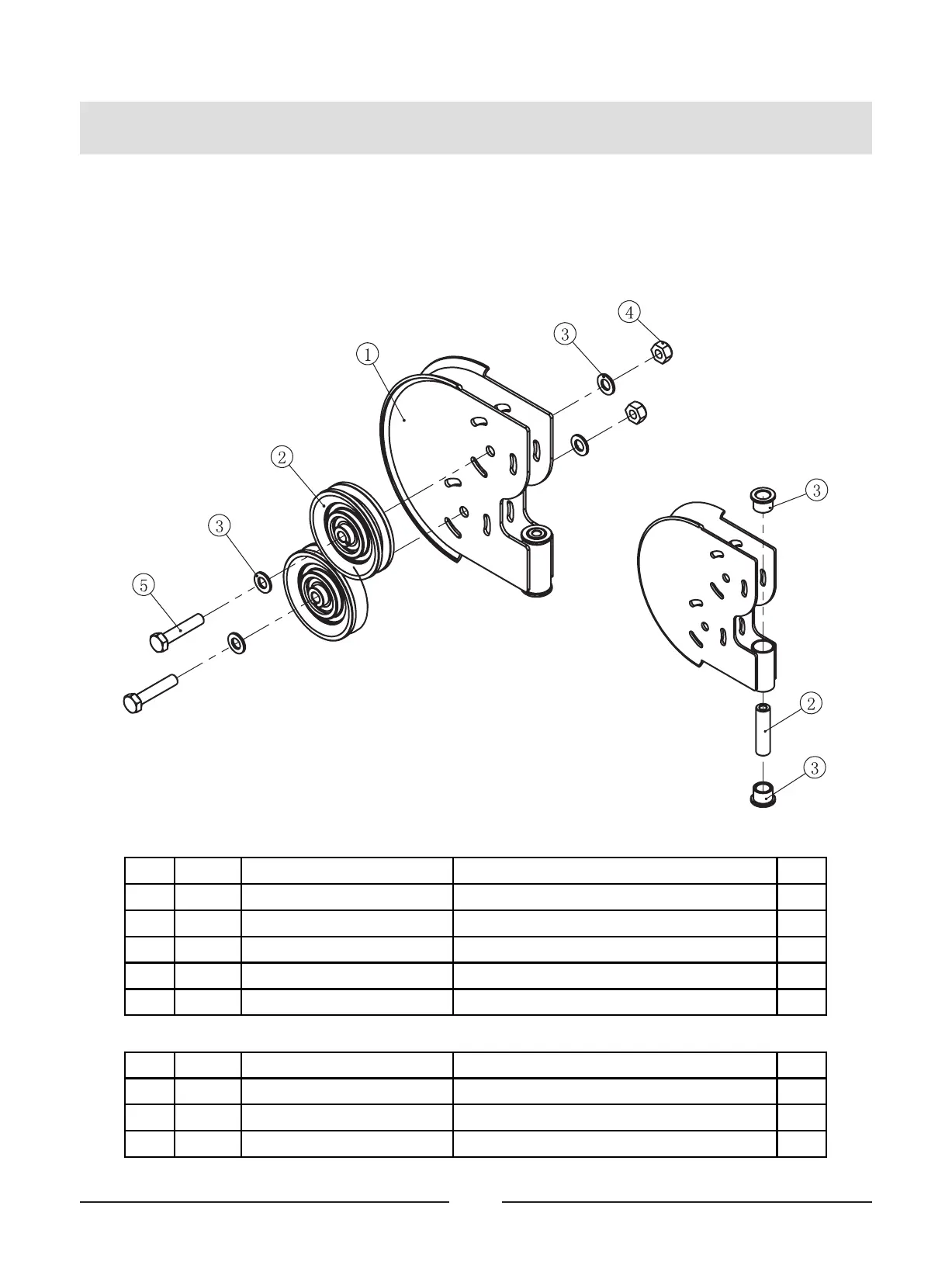

Exploded View and Parts List

Double Pulley Frame ASSY

Double Pulley Frame

Sub ASSY

ItemNo.

Grade No. Part No. Description QTY

1 9.3.1 IT95252000ASSY Sub，Double Pulley Bracket ASSY 1

2 9.3.2 M01004800V3 3.5 " Pulley 2

3 9.3.3 GB9510DS2 Flat Washer Φ11*Φ20*2 4

4 9.3.4 NM10DS2 Nylon Lock Nut M10 2

5 9.3.5 GB5780M10*50DS20 Hex Head Cap Screw M10*50 2

ItemNo.

Grade No. Part No. Description QTY

1 9.3.1.1 IT95252000 Double Pulley Bracket 1

2 9.3.1.2 IT95251800 Shaft Φ16*Φ8.5*62 1

3 9.3.1.3 L1-6800 Bushing Φ28*Φ22*Φ16*18 2
