Assembly
19

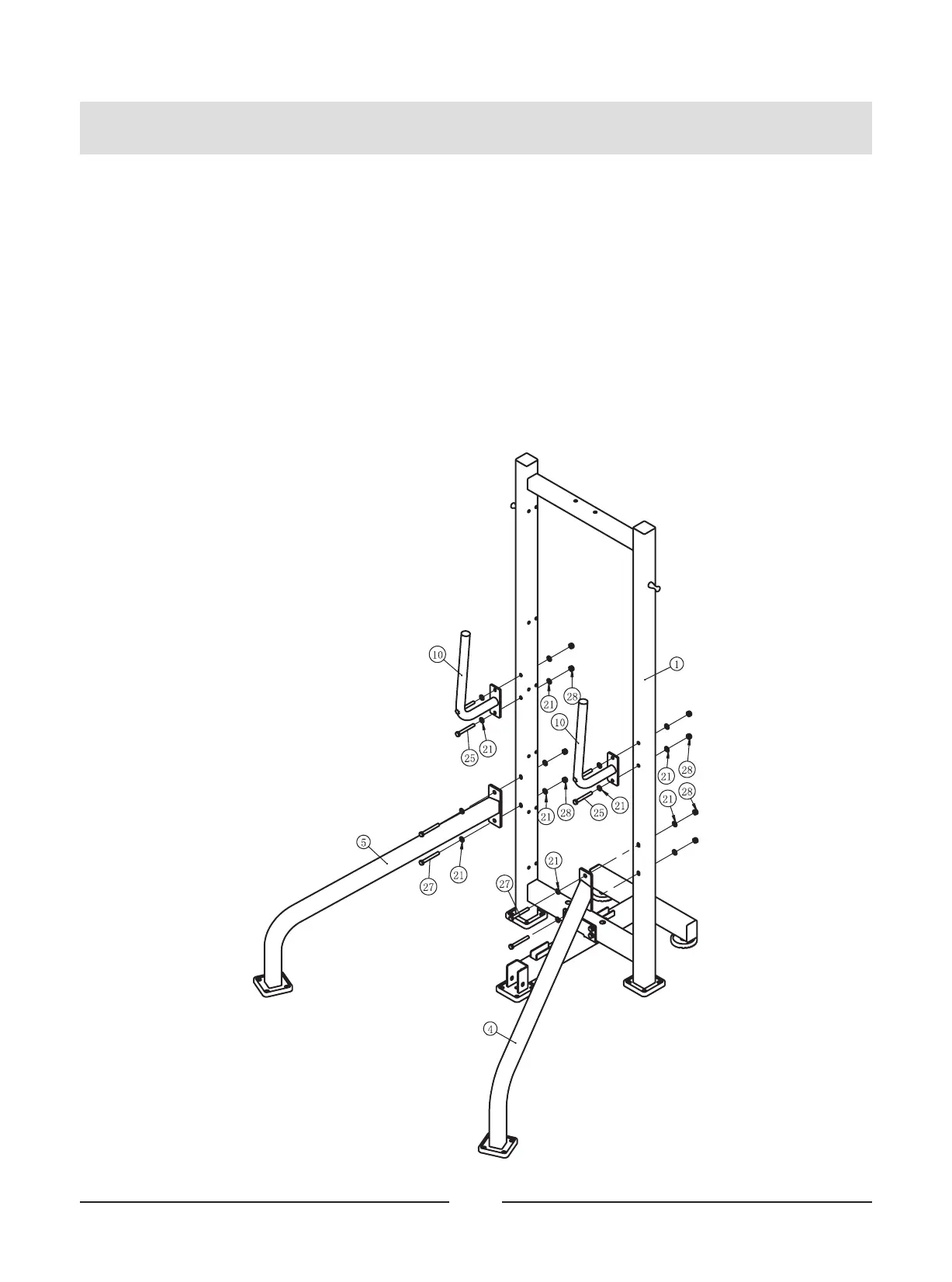

STEP 2
1. Attach the Right Front Frame ASSY (#4) and the Left Front Frame ASSY (#5) to the
Main Frame ASSY (#1) using:
four M10*85 HHB (#27) four M10 Nylon Lock Nut (#28)
eight Φ11*Φ20*2 Flat Washer (#21)
2. Attach two Handdle Frame ASSY (#10) to the Main Frame ASSY (#1) using:
four M10*80 HHB (#25) four M10 Nylon Lock Nut (#28)
eight Φ11*Φ20*2 Flat Washer (#21)
Note: Hand Tighten Bolts and Nylon Lock Nuts until Machine is Fully Assemble.
To Next Page
