Impulse SL7046 User Manual

10

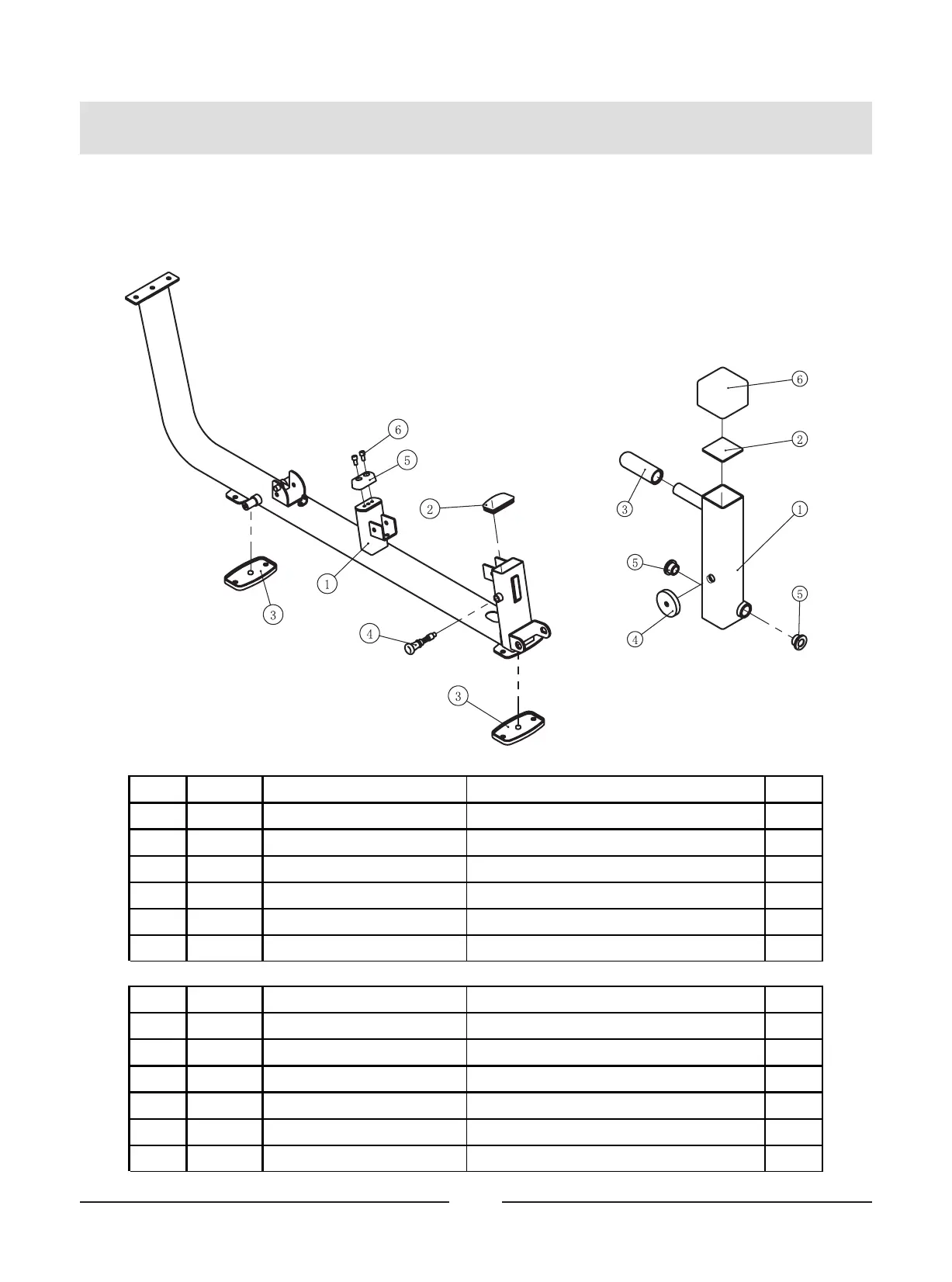

Exploded View and Parts List
Main Frame Sub ASSY
Item No. Grade No. Part No. Description QTY
1 4.1.1 SL70460400 Main Frame 1
2 4.1.2 VLP8000 Pipe Plug □50*100 1
3 4.1.3 BS81223100 Rubber Foot 2
4 4.1.4 IT95021600 Spring Pin 1
5 4.1.5 RS17000400 Bumper 1
6 4.1.6 GB70M10*20DHS20NL Socket Head Cap Screw M10*20 2
Swinging Support
Frame ASSY
Item No. Grade No. Part No. Description QTY
1 4.2.1 SL70461200 Swinging Support Frame 1
2 4.2.2 CHBRUTEX0703 The Seal Plate 1
3 4.2.3 PBF70001Y Grip Φ26*Φ19*80 1
4 4.2.4 TPF-533000 Bumper Φ45*8 1
5 4.2.5 M01402000 Bushing Φ25*Φ18*Φ12.2*13 2
6 4.2.6 PBF60101 Square Rubber Sleeve
□
50*46 1
