15
5.5 Other functions’ operation manual ( only specific models have these functions)
5.5.1 RS232 control display
A. The MPC1005 provides a DB9 female port for communication with control PC
and program download. The pins are defined as below:
Interface RS232(9 pins)
RS-232 Pin Description
Pin 2 TxD (transmit data)
Pin 3 RxD (receive data)
Pin 5 GND (signal ground)
Bit rate 9600 bps
Data bits 8 bit
Parity None
Stop bit 1 bit
Flow control None

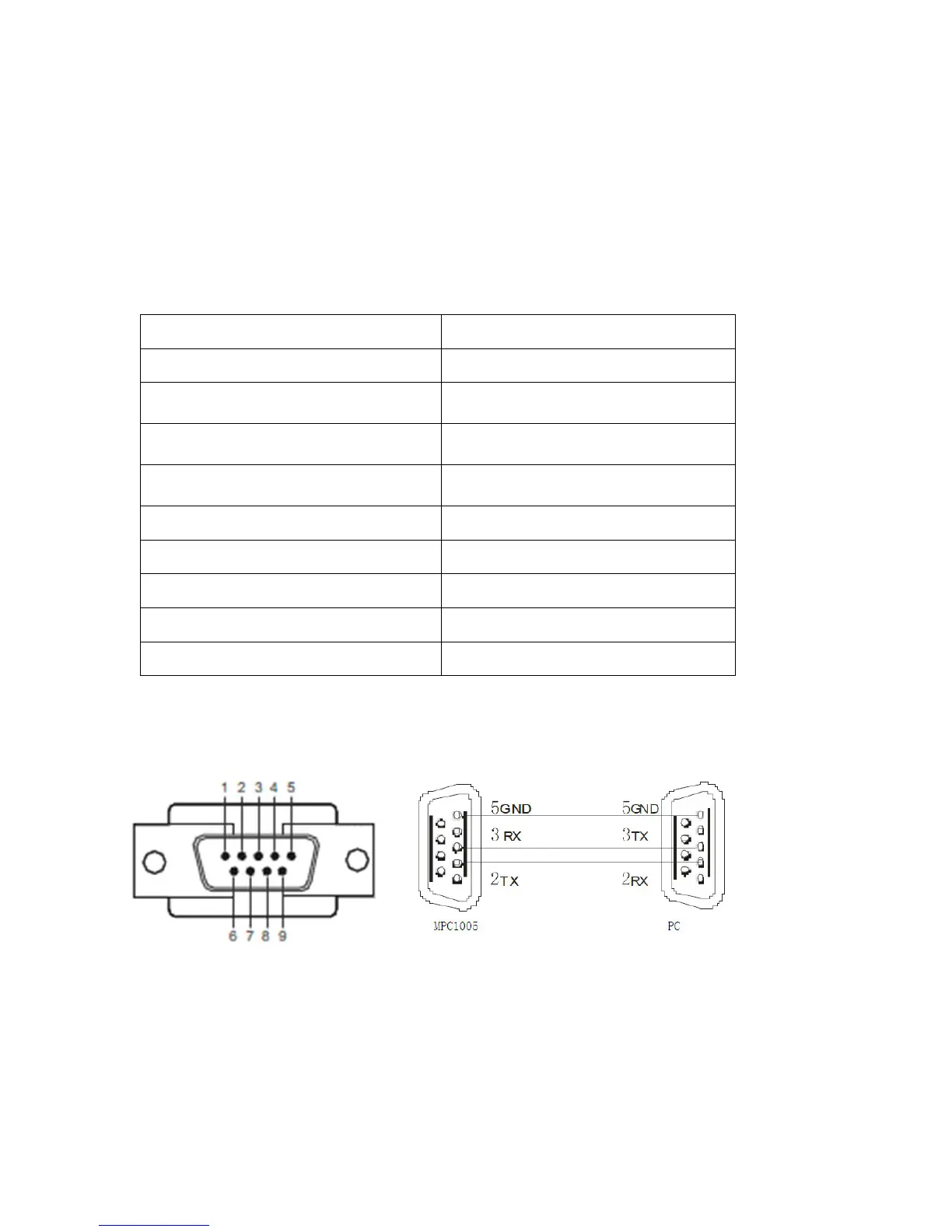

B. PORTS:
Pin assignment: Connection:
