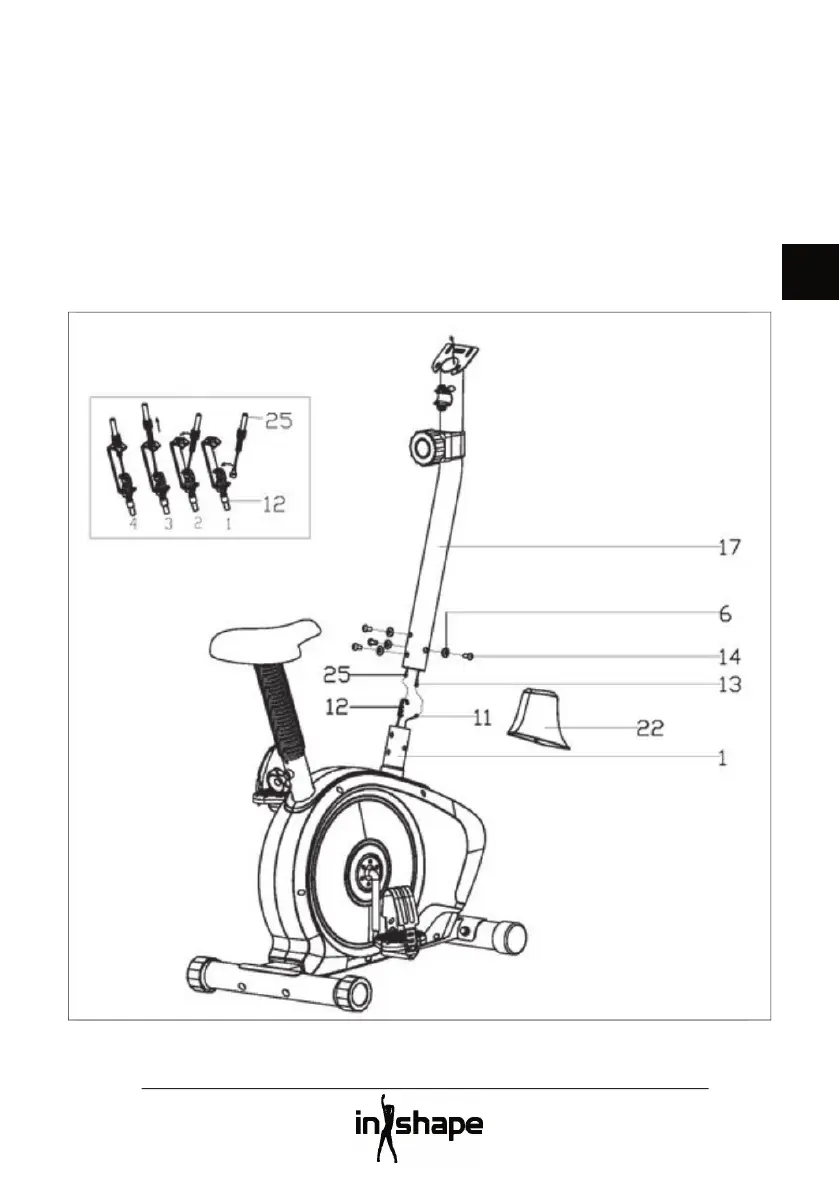

Step 4
Place the coverplate (22) over the handlebar
post (17) from below.
Connect the sensor wire (11) from the frame
(1) to the sensor wire (13) in the handlebar
post (17).
Insert the end of the tension cable (25)
from the tension knob into the bracket on
the tension cable (12) from the frame (1) as
illustrated. Check that the cables are correctly
assembled.
Attach the handlebar post (17) to the socket
on the frame (1) and screw it securely using
curved washers (6) and bolts (14).
