Indesit tcud93b - FAULT CODES - LED Console Models Only; LED Indicator Combinations

27 of 37
Indesit Company
Service Manual UK English
FAULT CODES - LED Console Models Only
When the machine's Electronics detect a fault:
> All of the Option and Start Led's will Flash Rapidly.
> The machine will continue with Drum Action only for a further 20 minutes.
> The Progress/Warning Lamps will illuminate (continually "ON") to display the relevant Fault Code
For additional Fault Code information see following pages.

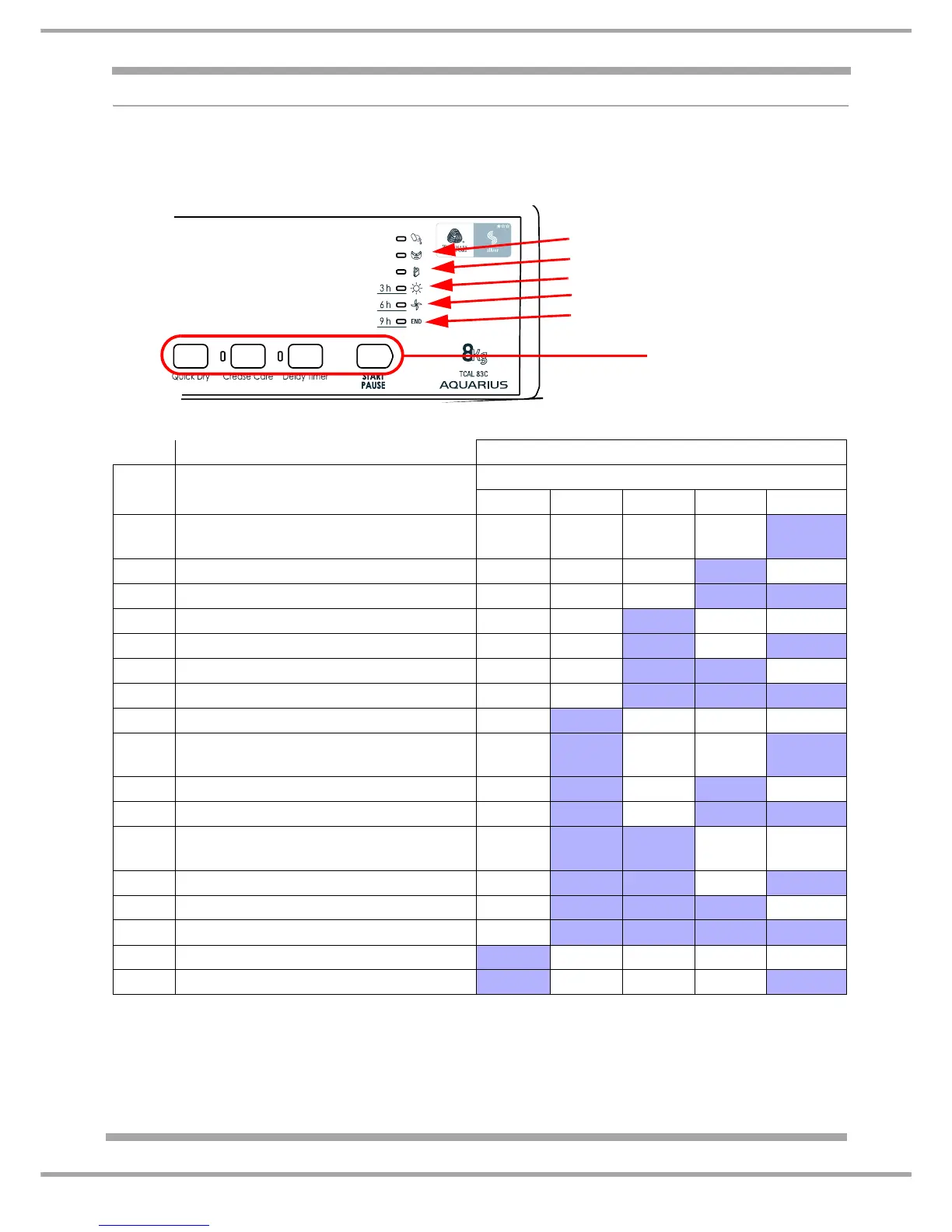

STATUS OF LEDs
FAULT CAUSE LED COMBINATION
5432 1
F01 Motor triac in short circuit or Relay of
motor welded closed
OFF OFF OFF OFF
ON
F02 Blocked motor (fan blocked). OFF OFF OFF
ON OFF
F03 Front NTC open or short circuit OFF OFF OFF
ON ON
F04 Pump working when should be off. OFF OFF
ON OFF OFF
F05 Pump not working when should be on. OFF OFF
ON OFF ON
F06 Non used, active OFF OFF
ON ON OFF
F07 Lower element failure OFF OFF
ON ON ON
F08 Static heater relay welded closed OFF
ON OFF OFF OFF
F09 Error set-up file. EEPROM is not
programmed or not functioning
OFF
ON OFF OFF ON
F10 Common of heater open, one shot open OFF
ON OFF ON OFF
F11 Pump open circuit. OFF
ON OFF ON ON
F12 No communication between display
board and control board
OFF
ON ON OFF OFF
F13 Rear NTC open or short circuit. OFF
ON ON OFF ON
F14 Upper element failure OFF
ON ON ON OFF
F15 Dynamic (PD) heater relay welded closed OFF
ON ON ON ON
F16 Not used, active
ON OFF OFF OFF OFF
F17 Master relay welded closed
ON OFF OFF OFF ON
LED 1
LED 2
LED 3
LED 4
LED 5
Option & Start LED’s
will all flash together
when a fault code
is displayed
