Example: Auto_Arbeitsraumtuer_1_C100
X

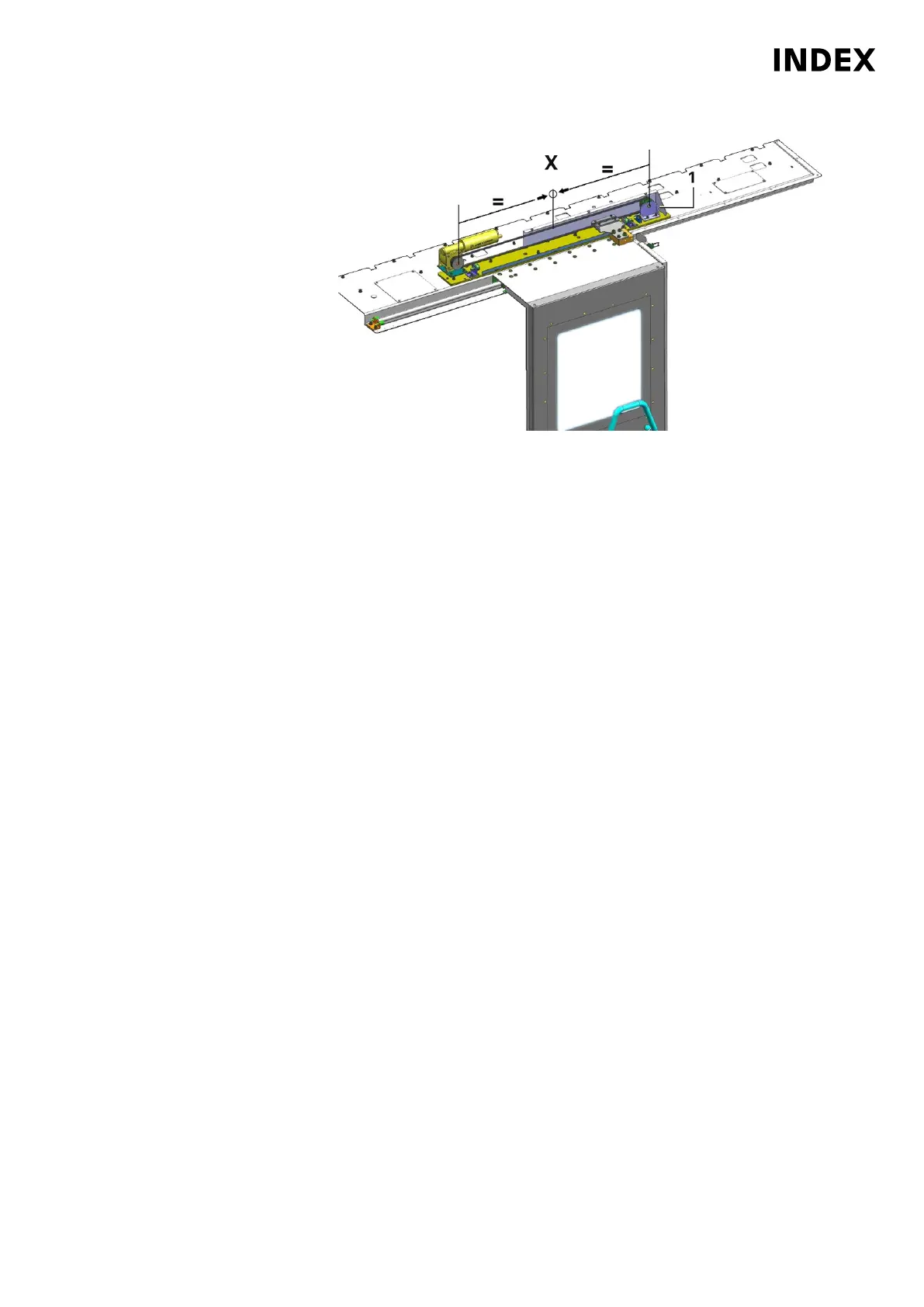

Center between the drive pulley and the deflection pulley
1 Belt adjustment
Measure belt tension (frequency meter) and adjust belt. The measuring point to
check the belt frequency is located in the middle (X) between the drive pulley
and the deflection pulley. The value to be set is 34 Hz. Correct the belt tension
at the belt adjustment 1 if necessary.
Maintenance Summary - 4.000 Operating hours
87
Maintenance Instructions
C100
LP1602.10091 - 05.06.2019
